Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

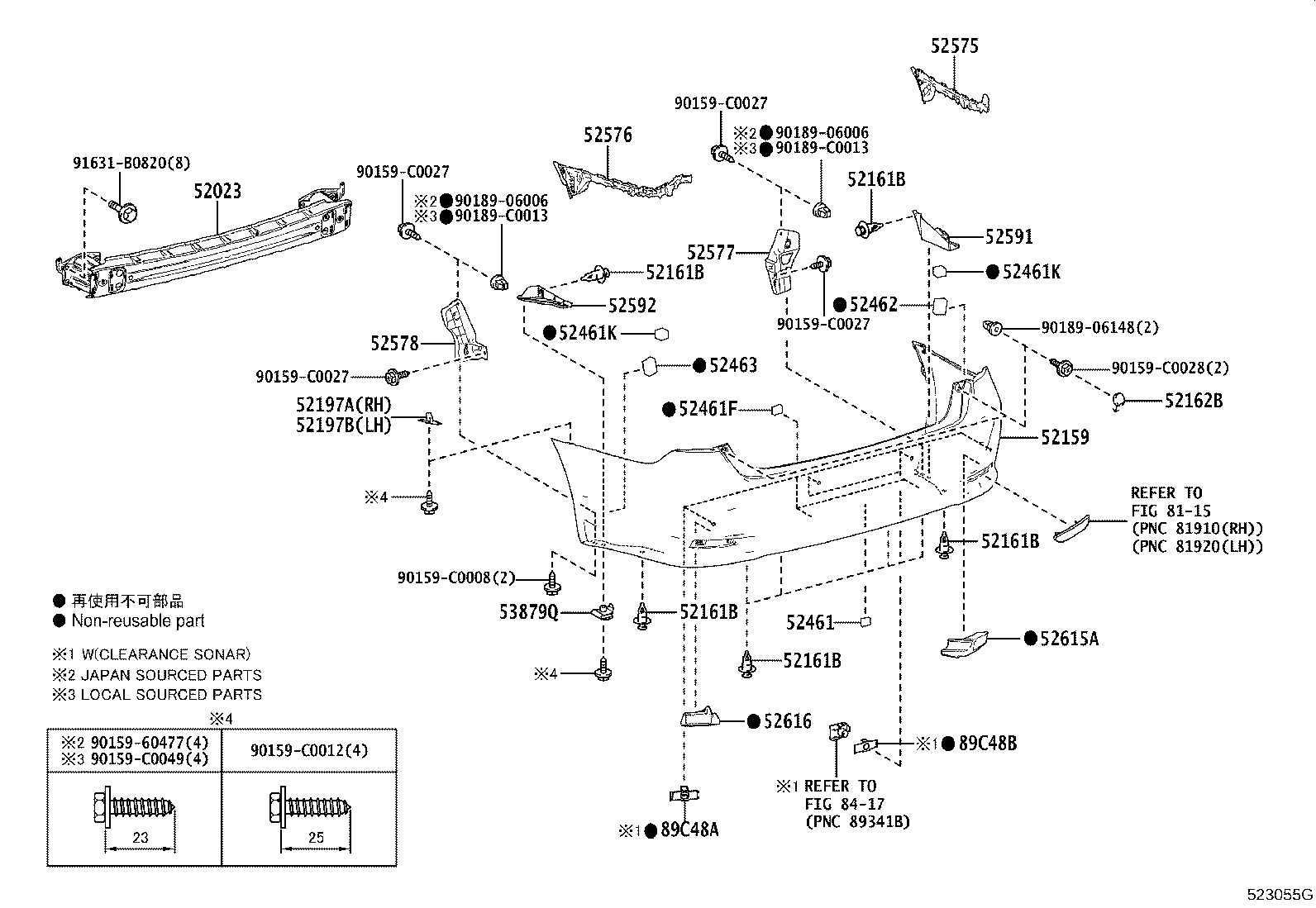

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52023 — Reinforcement Sub-assy, Rear Bumper | ||||
| 52023-0N040 |
Reinforcement Sub-assy, Rear Bumper
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52023-0N040 |
Reinforcement Sub-assy, Rear Bumper
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52023-0N040 |
Reinforcement Sub-assy, Rear Bumper
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52159 — Cover, Rear Bumper | ||||
| 52159-0N916 note |
Cover, Rear Bumper
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 52159-0N917 note |
Cover, Rear Bumper
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 52159-0N918 |
Cover, Rear Bumper
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52159-0N919 note |
Cover, Rear Bumper
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52161B — Piece, Rear Bumper | ||||
| 52161-02040 |
Piece, Rear Bumper
2016-04 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52161-16010 |
Piece, Rear Bumper
2015-01 → 2016-03
ended
|
ARS212,GRS218 | — | |
| 52161-02040 |
Piece, Rear Bumper
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52161-02040 |
Piece, Rear Bumper
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52162B — Plate, Rear Bumper, NO.1 | ||||
| 52162-0N060 |
Plate, Rear Bumper, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52162-0N060 |
Plate, Rear Bumper, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52162-0N060 |
Plate, Rear Bumper, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52197A — Bracket, Rear Bumper Seal, RH | ||||
| 52197-0N020 |
Bracket, Rear Bumper Seal, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52197-0N020 |
Bracket, Rear Bumper Seal, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52197-0N020 |
Bracket, Rear Bumper Seal, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52197B — Bracket, Rear Bumper Seal, LH | ||||
| 52197-0N020 |
Bracket, Rear Bumper Seal, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52197-0N020 |
Bracket, Rear Bumper Seal, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52197-0N020 |
Bracket, Rear Bumper Seal, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52461 — Pad, Rear Bumper, Center | ||||
| 52462-0N060 |
Pad, Rear Bumper, Center
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52462-0N071 |
Pad, Rear Bumper, Center
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52462-0N071 |
Pad, Rear Bumper, Center
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52461F — Pad, Rear Bumper | ||||
| 52462-0N050 |
Pad, Rear Bumper
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52462-0N100 |
Pad, Rear Bumper
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52462-0N100 |
Pad, Rear Bumper
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52461K — Pad, Rear Bumper, NO.1 | ||||
| 52462-0N040 |
Pad, Rear Bumper, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52462-0N090 |
Pad, Rear Bumper, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52462-0N090 |
Pad, Rear Bumper, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52462 — Pad, Rear Bumper, RH | ||||
| 52462-0N030 |
Pad, Rear Bumper, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52462-0N080 |
Pad, Rear Bumper, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52462-0N080 |
Pad, Rear Bumper, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52463 — Pad, Rear Bumper, LH | ||||
| 52462-0N030 |
Pad, Rear Bumper, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52462-0N080 |
Pad, Rear Bumper, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52462-0N080 |
Pad, Rear Bumper, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52575 — Retainer, Rear Bumper Side, RH | ||||
| 52575-0N010 |
Retainer, Rear Bumper Side, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52575-0N010 |
Retainer, Rear Bumper Side, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52575-0N010 |
Retainer, Rear Bumper Side, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52576 — Retainer, Rear Bumper Side, LH | ||||
| 52576-0N010 |
Retainer, Rear Bumper Side, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52576-0N010 |
Retainer, Rear Bumper Side, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52576-0N010 |
Retainer, Rear Bumper Side, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52577 — Retainer, Rear Bumper Side, NO.2 RH | ||||
| 52577-0N010 |
Retainer, Rear Bumper Side, NO.2 RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52577-0N010 |
Retainer, Rear Bumper Side, NO.2 RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52577-0N010 |
Retainer, Rear Bumper Side, NO.2 RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52578 — Retainer, Rear Bumper Side, NO.2 LH | ||||
| 52578-0N010 |
Retainer, Rear Bumper Side, NO.2 LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52578-0N010 |
Retainer, Rear Bumper Side, NO.2 LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52578-0N010 |
Retainer, Rear Bumper Side, NO.2 LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52591 — Seal, Rear Bumper Side, RH | ||||
| 52591-0N010 |
Seal, Rear Bumper Side, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52591-0N010 |
Seal, Rear Bumper Side, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52591-0N010 |
Seal, Rear Bumper Side, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52592 — Seal, Rear Bumper Side, LH | ||||
| 52592-0N010 |
Seal, Rear Bumper Side, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52592-0N010 |
Seal, Rear Bumper Side, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52592-0N010 |
Seal, Rear Bumper Side, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52615A — Absorber, Rear Bumper Energy, RH | ||||
| 52615-0N040 |
Absorber, Rear Bumper Energy, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52615-0N050 |
Absorber, Rear Bumper Energy, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52615-0N050 |
Absorber, Rear Bumper Energy, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52616 — Absorber, Rear Bumper Energy, LH | ||||
| 52616-0N010 |
Absorber, Rear Bumper Energy, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52616-0N020 |
Absorber, Rear Bumper Energy, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52616-0N020 |
Absorber, Rear Bumper Energy, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53879Q — Retainer, Rear Fender Liner | ||||
| 53879-0N020 |
Retainer, Rear Fender Liner
2016-04 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53879-17020 |
Retainer, Rear Fender Liner
2015-01 → 2016-03
ended
|
ARS212,GRS218 | — | |
| 53879-0N020 |
Retainer, Rear Fender Liner
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53879-0N020 |
Retainer, Rear Fender Liner
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 89C48A — Retainer, Ultrasonic Sensor, Rear Corner | ||||
| 89348-0N050 |
Retainer, Ultrasonic Sensor, Rear Corner
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 89348-06270 |
Retainer, Ultrasonic Sensor, Rear Corner
2017-12 → 2020-04
ended
|
ARS212 P,Q,S,U | — | |
| 89C48B — Retainer, Ultrasonic Sensor, Rear Center | ||||
| 89348-0N050 |
Retainer, Ultrasonic Sensor, Rear Center
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 89348-06270 |
Retainer, Ultrasonic Sensor, Rear Center
2017-12 → 2020-04
ended
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
