Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

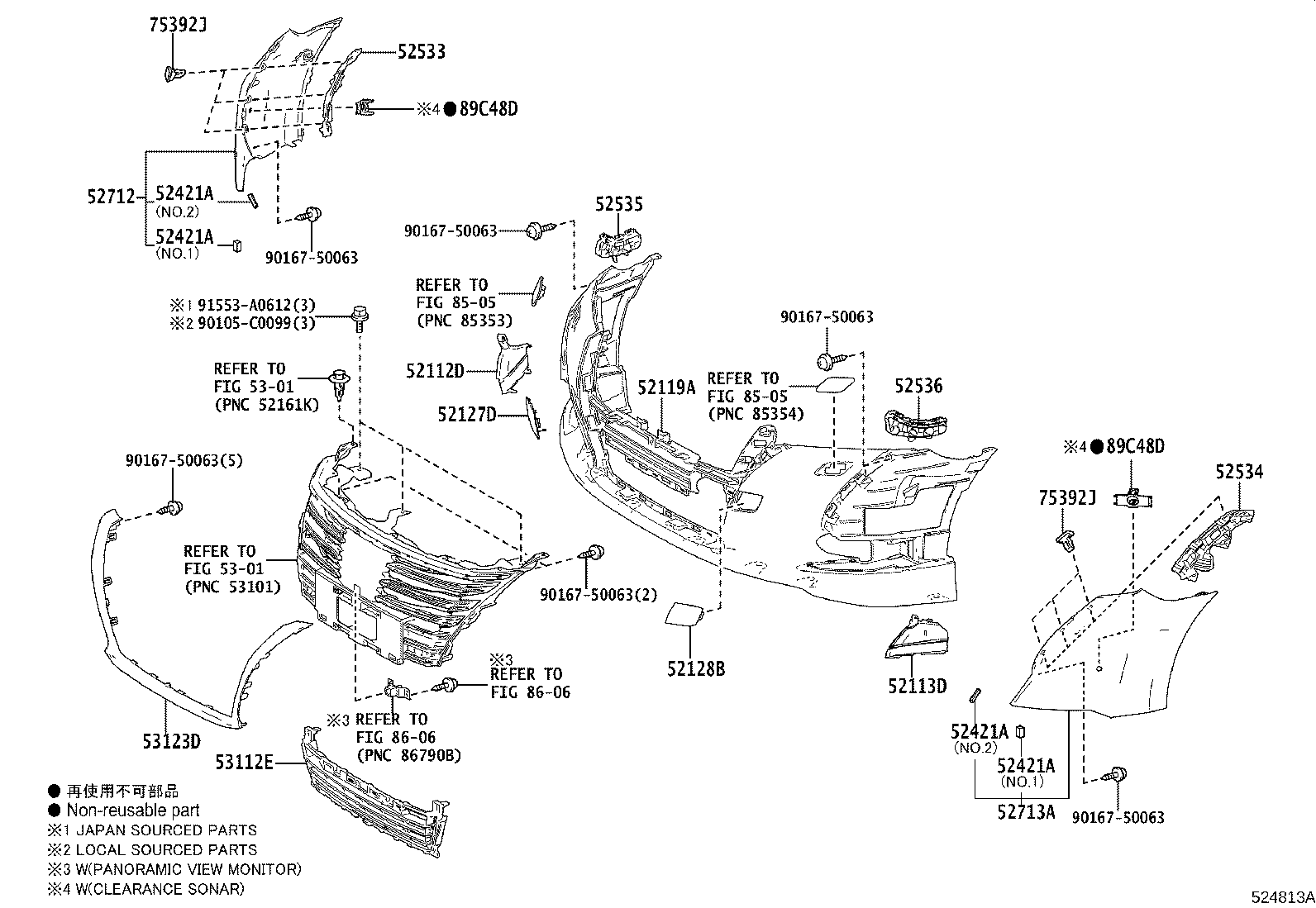

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52112D — Extension, Front Bumper, RH | ||||
| 52112-0N900 note |
Extension, Front Bumper, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52112-0N900 |
Extension, Front Bumper, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52112-0N900 |
Extension, Front Bumper, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52113D — Extension, Front Bumper, LH | ||||
| 52113-0N900 note |
Extension, Front Bumper, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52113-0N900 |
Extension, Front Bumper, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52113-0N900 |
Extension, Front Bumper, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52119A — Cover, Front Bumper | ||||
| 52119-0N918 note |
Cover, Front Bumper
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52119-0N918 |
Cover, Front Bumper
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52119-0N918 |
Cover, Front Bumper
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52127D — Cover, Front Bumper Hole, RH | ||||
| 52127-0N040 |
Cover, Front Bumper Hole, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52127-0N040 |
Cover, Front Bumper Hole, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52127-0N040 |
Cover, Front Bumper Hole, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52128B — Cover, Front Bumper Hole, LH | ||||
| 52129-0N070 |
Cover, Front Bumper Hole, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52129-0N070 |
Cover, Front Bumper Hole, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52129-0N070 |
Cover, Front Bumper Hole, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52421A — Pad, Front Bumper | ||||
| 52421-0N010 note |
Pad, Front Bumper
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52421-0N020 note |
Pad, Front Bumper
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52421-0N010 note |
Pad, Front Bumper
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52421-0N010 note |
Pad, Front Bumper
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52421-0N020 note |
Pad, Front Bumper
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52421-0N020 note |
Pad, Front Bumper
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52533 — Bracket, Front Bumper Retainer, NO.1 | ||||
| 52533-0N010 |
Bracket, Front Bumper Retainer, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52533-0N010 |
Bracket, Front Bumper Retainer, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52533-0N010 |
Bracket, Front Bumper Retainer, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52534 — Bracket, Front Bumper Retainer, NO.2 | ||||
| 52534-0N010 |
Bracket, Front Bumper Retainer, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52534-0N010 |
Bracket, Front Bumper Retainer, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52534-0N010 |
Bracket, Front Bumper Retainer, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52535 — Retainer, Front Bumper Side, RH | ||||
| 52535-0N050 |
Retainer, Front Bumper Side, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52535-0N050 |
Retainer, Front Bumper Side, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52535-0N050 |
Retainer, Front Bumper Side, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52536 — Retainer, Front Bumper Side, LH | ||||
| 52536-0N040 |
Retainer, Front Bumper Side, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 52536-0N040 |
Retainer, Front Bumper Side, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52536-0N040 |
Retainer, Front Bumper Side, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52712 — Moulding, Front Bumper Side, RH | ||||
| 52712-0N900 |
Moulding, Front Bumper Side, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 52712-0N901 |
Moulding, Front Bumper Side, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 52712-0N900 |
Moulding, Front Bumper Side, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52712-0N901 |
Moulding, Front Bumper Side, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 52713A — Moulding, Front Bumper Side, LH | ||||
| 52713-0N900 |
Moulding, Front Bumper Side, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 52713-0N901 |
Moulding, Front Bumper Side, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 52713-0N900 |
Moulding, Front Bumper Side, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 52713-0N901 |
Moulding, Front Bumper Side, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53112E — Grille, Radiator, Lower NO.1 | ||||
| 53112-0N040 note |
Grille, Radiator, Lower NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53112-0N050 |
Grille, Radiator, Lower NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53112-0N050 |
Grille, Radiator, Lower NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53123D — Moulding, Radiator Grille, Lower | ||||
| 53122-0N010 |
Moulding, Radiator Grille, Lower
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53122-0N020 |
Moulding, Radiator Grille, Lower
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53122-0N020 |
Moulding, Radiator Grille, Lower
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 75392J — Retainer, Outside Moulding | ||||
| 75392-35200 |
Retainer, Outside Moulding
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 75392-35200 |
Retainer, Outside Moulding
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 75392-35200 |
Retainer, Outside Moulding
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 89C48D — Retainer, Ultrasonic Sensor, Front Corner | ||||
| 89348-0N050 |
Retainer, Ultrasonic Sensor, Front Corner
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 89348-02100 |
Retainer, Ultrasonic Sensor, Front Corner
2017-12 → 2020-04
ended
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
