Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

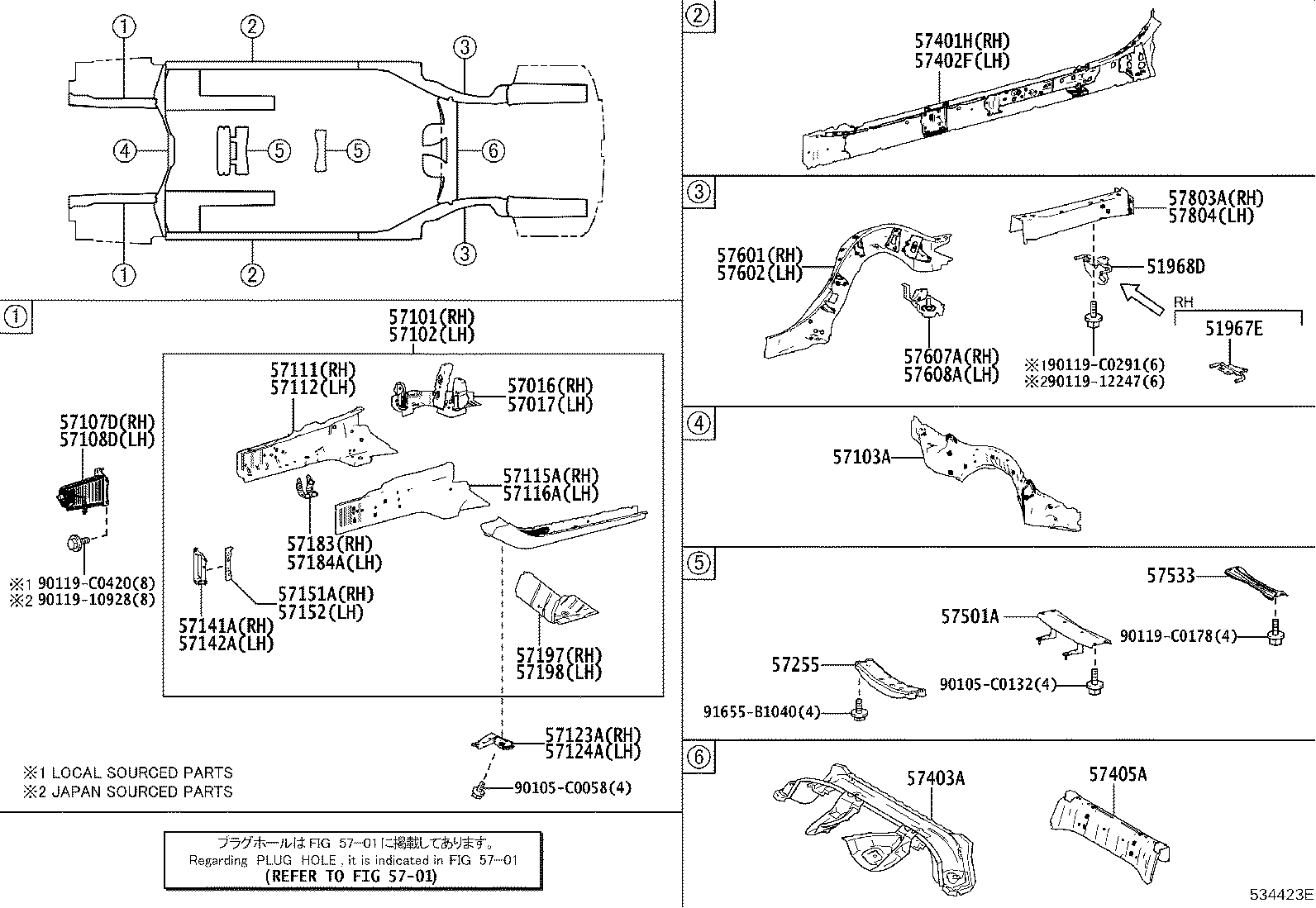

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51967E — Hook, Transport, Rear RH | ||||
| 51969-0N010 |
Hook, Transport, Rear RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 51969-0N010 |
Hook, Transport, Rear RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 51969-0N010 |
Hook, Transport, Rear RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 51968D — Hook, Transport, Rear LH | ||||
| 51968-0N020 |
Hook, Transport, Rear LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 51968-0N030 |
Hook, Transport, Rear LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 51968-0N030 |
Hook, Transport, Rear LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57016 — Reinforcement Sub-assy, Front Side Member, RH | ||||
| 57016-0N020 |
Reinforcement Sub-assy, Front Side Member, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57016-0N020 |
Reinforcement Sub-assy, Front Side Member, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57016-0N020 |
Reinforcement Sub-assy, Front Side Member, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57017 — Reinforcement Sub-assy, Front Side Member, LH | ||||
| 57017-0N020 |
Reinforcement Sub-assy, Front Side Member, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57017-0N020 |
Reinforcement Sub-assy, Front Side Member, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57017-0N020 |
Reinforcement Sub-assy, Front Side Member, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57101 — Member Sub-assy, Front Side, RH | ||||
| 57101-0N020 |
Member Sub-assy, Front Side, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57101-0N020 |
Member Sub-assy, Front Side, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57101-0N020 |
Member Sub-assy, Front Side, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57102 — Member Sub-assy, Front Side, LH | ||||
| 57102-0N020 |
Member Sub-assy, Front Side, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57102-0N020 |
Member Sub-assy, Front Side, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57102-0N020 |
Member Sub-assy, Front Side, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57103A — Crossmenber Sub-assy, Floor, NO.3 | ||||
| 57103-0N011 |
Crossmenber Sub-assy, Floor, NO.3
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57103-0N011 |
Crossmenber Sub-assy, Floor, NO.3
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57103-0N011 |
Crossmenber Sub-assy, Floor, NO.3
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57107D — Reinforce Sub-assy, Front Bumper Mounting, RH | ||||
| 57107-30120 |
Reinforce Sub-assy, Front Bumper Mounting, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57107-30120 |
Reinforce Sub-assy, Front Bumper Mounting, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57107-30120 |
Reinforce Sub-assy, Front Bumper Mounting, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57108D — Reinforce Sub-assy, Front Bumper Mounting, LH | ||||
| 57108-30150 |
Reinforce Sub-assy, Front Bumper Mounting, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57108-30150 |
Reinforce Sub-assy, Front Bumper Mounting, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57108-30150 |
Reinforce Sub-assy, Front Bumper Mounting, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57111 — Member, Front Side, RH | ||||
| 57111-0N011 |
Member, Front Side, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57111-0N011 |
Member, Front Side, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57111-0N011 |
Member, Front Side, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57112 — Member, Front Side, LH | ||||
| 57112-0N011 |
Member, Front Side, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57112-0N011 |
Member, Front Side, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57112-0N011 |
Member, Front Side, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57115A — Plate, Front Side Member, Outer RH | ||||
| 57115-0N010 |
Plate, Front Side Member, Outer RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57115-0N010 |
Plate, Front Side Member, Outer RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57115-0N010 |
Plate, Front Side Member, Outer RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57116A — Plate, Front Side Member, Outer LH | ||||
| 57116-0N010 |
Plate, Front Side Member, Outer LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57116-0N010 |
Plate, Front Side Member, Outer LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57116-0N010 |
Plate, Front Side Member, Outer LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57123A — Reinforcement, Strut Bar Bracket, RH | ||||
| 57305-0N020 |
Reinforcement, Strut Bar Bracket, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57305-0N020 |
Reinforcement, Strut Bar Bracket, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57305-0N020 |
Reinforcement, Strut Bar Bracket, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57124A — Reinforcement, Strut Bar Bracket, LH | ||||
| 57306-0N020 |
Reinforcement, Strut Bar Bracket, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57306-0N020 |
Reinforcement, Strut Bar Bracket, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57306-0N020 |
Reinforcement, Strut Bar Bracket, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57141A — Support, Front Bumper Arm, RH | ||||
| 57141-0N010 |
Support, Front Bumper Arm, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57141-0N010 |
Support, Front Bumper Arm, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57141-0N010 |
Support, Front Bumper Arm, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57142A — Support, Front Bumper Arm, LH | ||||
| 57142-0N010 |
Support, Front Bumper Arm, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57142-0N010 |
Support, Front Bumper Arm, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57142-0N010 |
Support, Front Bumper Arm, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57151A — Reinforcement, Front Side Member, NO.1 RH | ||||
| 57151-0N010 |
Reinforcement, Front Side Member, NO.1 RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57151-0N010 |
Reinforcement, Front Side Member, NO.1 RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57151-0N010 |
Reinforcement, Front Side Member, NO.1 RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57152 — Reinforcement, Front Side Member, NO.1 LH | ||||
| 57152-0N010 |
Reinforcement, Front Side Member, NO.1 LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57152-0N010 |
Reinforcement, Front Side Member, NO.1 LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57152-0N010 |
Reinforcement, Front Side Member, NO.1 LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57183 — Plate, Front Side Member, NO.4 RH | ||||
| 57183-30030 |
Plate, Front Side Member, NO.4 RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57183-30030 |
Plate, Front Side Member, NO.4 RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57183-30030 |
Plate, Front Side Member, NO.4 RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57184A — Plate, Front Side Member, NO.4 LH | ||||
| 57184-30020 |
Plate, Front Side Member, NO.4 LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57184-30020 |
Plate, Front Side Member, NO.4 LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57184-30020 |
Plate, Front Side Member, NO.4 LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57197 — Box, Torque, Front RH | ||||
| 57197-0N010 |
Box, Torque, Front RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57197-0N010 |
Box, Torque, Front RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57197-0N010 |
Box, Torque, Front RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57198 — Box, Torque, Front LH | ||||
| 57198-0N010 |
Box, Torque, Front LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57198-0N010 |
Box, Torque, Front LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57198-0N010 |
Box, Torque, Front LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57255 — Member, Engine Rear Mounting | ||||
| 57255-30080 |
Member, Engine Rear Mounting
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 57255-30130 |
Member, Engine Rear Mounting
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 57255-30080 |
Member, Engine Rear Mounting
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57255-30080 |
Member, Engine Rear Mounting
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57401H — Member Sub-assy, Floor Side, Inner RH | ||||
| 57401-0N030 |
Member Sub-assy, Floor Side, Inner RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57401-0N030 |
Member Sub-assy, Floor Side, Inner RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57401-0N030 |
Member Sub-assy, Floor Side, Inner RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57402F — Member Sub-assy, Floor Side, Inner LH | ||||
| 57402-0N030 |
Member Sub-assy, Floor Side, Inner LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57402-0N030 |
Member Sub-assy, Floor Side, Inner LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57402-0N030 |
Member Sub-assy, Floor Side, Inner LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57403A — Member Sub-assy, Center Floor Cross, NO.3 | ||||
| 57809-0N020 |
Member Sub-assy, Center Floor Cross, NO.3
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57809-0N020 |
Member Sub-assy, Center Floor Cross, NO.3
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57809-0N020 |
Member Sub-assy, Center Floor Cross, NO.3
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57405A — Member Sub-assy, Center Floor Cross, NO.2 | ||||
| 57405-0N011 |
Member Sub-assy, Center Floor Cross, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57405-0N011 |
Member Sub-assy, Center Floor Cross, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57405-0N011 |
Member Sub-assy, Center Floor Cross, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57501A — Brace Sub-assy, Front Floor, Center | ||||
| 51405-0N010 |
Brace Sub-assy, Front Floor, Center
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 51405-0N010 |
Brace Sub-assy, Front Floor, Center
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 51405-0N010 |
Brace Sub-assy, Front Floor, Center
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57533 — Brace, Front Floor, Center | ||||
| 57533-0N030 |
Brace, Front Floor, Center
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57533-0N030 |
Brace, Front Floor, Center
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57533-0N030 |
Brace, Front Floor, Center
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57601 — Member Sub-assy, Rear Floor Side, RH | ||||
| 57601-0N903 |
Member Sub-assy, Rear Floor Side, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57601-0N903 |
Member Sub-assy, Rear Floor Side, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57601-0N903 |
Member Sub-assy, Rear Floor Side, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57602 — Member Sub-assy, Rear Floor Side, LH | ||||
| 57602-0N902 |
Member Sub-assy, Rear Floor Side, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57602-0N902 |
Member Sub-assy, Rear Floor Side, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57602-0N902 |
Member Sub-assy, Rear Floor Side, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57607A — Member Sub-assy, Rear Floor Cross, NO.3 | ||||
| 57607-0N011 |
Member Sub-assy, Rear Floor Cross, NO.3
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57607-0N011 |
Member Sub-assy, Rear Floor Cross, NO.3
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57607-0N011 |
Member Sub-assy, Rear Floor Cross, NO.3
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57608A — Member Sub-assy, Rear Floor Cross, NO.4 | ||||
| 57608-0N011 |
Member Sub-assy, Rear Floor Cross, NO.4
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57608-0N011 |
Member Sub-assy, Rear Floor Cross, NO.4
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57608-0N011 |
Member Sub-assy, Rear Floor Cross, NO.4
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57803A — Reinforcement Sub-assy, Rear Floor Side Member, Rear RH | ||||
| 57803-0N010 |
Reinforcement Sub-assy, Rear Floor Side Member, Rear RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57803-0N010 |
Reinforcement Sub-assy, Rear Floor Side Member, Rear RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57803-0N010 |
Reinforcement Sub-assy, Rear Floor Side Member, Rear RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57804 — Reinforcement Sub-assy, Rear Floor Side Member, Rear LH | ||||
| 57804-0N011 |
Reinforcement Sub-assy, Rear Floor Side Member, Rear LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57804-0N011 |
Reinforcement Sub-assy, Rear Floor Side Member, Rear LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57804-0N011 |
Reinforcement Sub-assy, Rear Floor Side Member, Rear LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
