Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

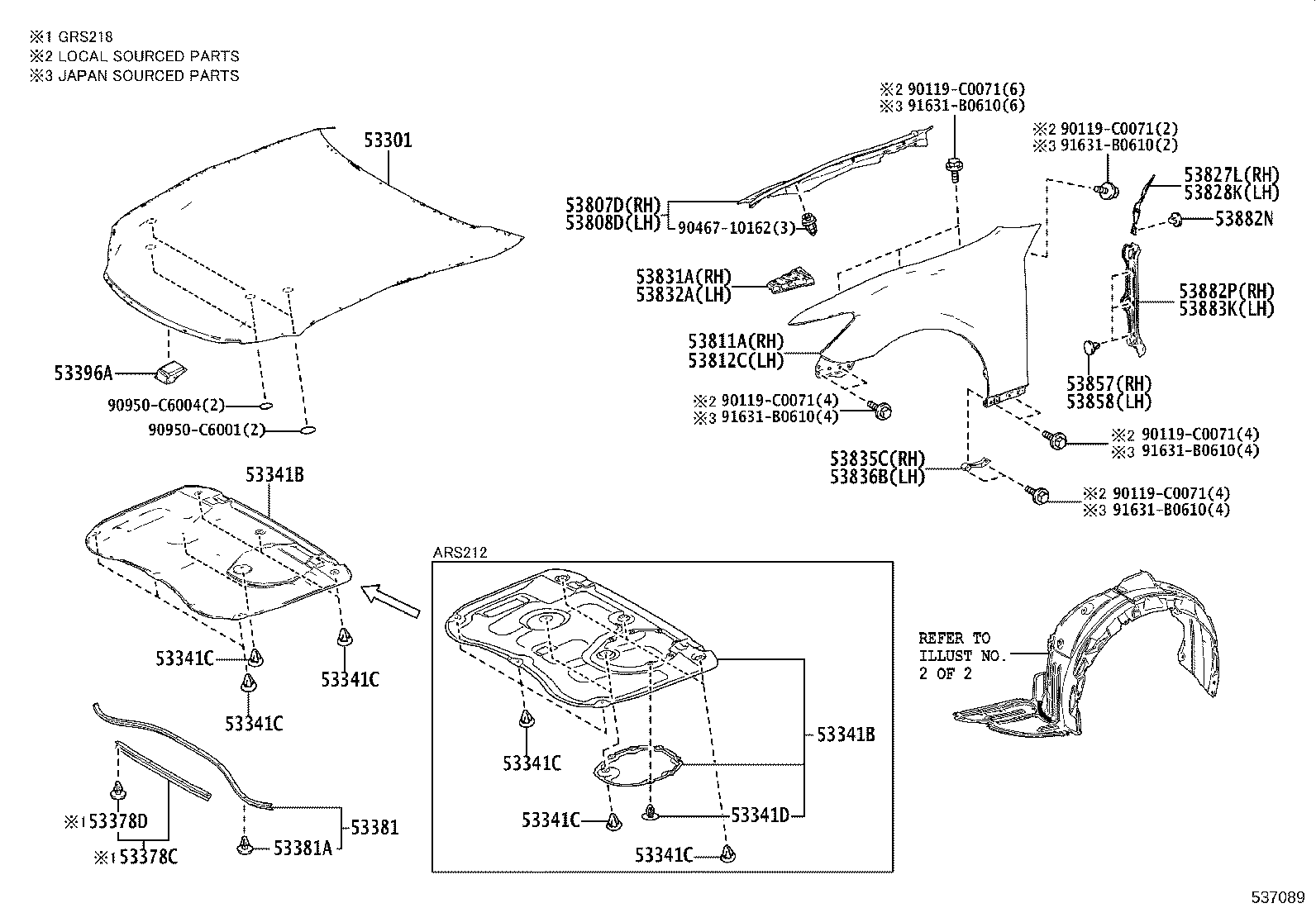

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53301 — Hood Sub-assy | ||||
| 53301-0N040 |
Hood Sub-assy
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53301-0N040 |
Hood Sub-assy
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53301-0N040 |
Hood Sub-assy
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53341B — Insulator, Hood | ||||
| 53341-0N040 |
Insulator, Hood
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 53341-0N050 |
Insulator, Hood
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 53341-0N050 |
Insulator, Hood
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53341-0N050 |
Insulator, Hood
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53341C — Clip(FOR HOOD INSULATOR) | ||||
| 90467-C0025 |
Clip(FOR HOOD INSULATOR)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90467-C0025 |
Clip(FOR HOOD INSULATOR)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90467-C0025 |
Clip(FOR HOOD INSULATOR)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53341D — Clip(FOR HOOD INSULATER) | ||||
| 90467-C0025 |
Clip(FOR HOOD INSULATER)
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 90467-C0025 |
Clip(FOR HOOD INSULATER)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90467-C0025 |
Clip(FOR HOOD INSULATER)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53378C — Seal, Hood Air Intake Duct | ||||
| 53378-0N030 |
Seal, Hood Air Intake Duct
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 53378D — Clip(FOR HOOD AIR INTAKE DUCT SEAL) | ||||
| 90467-08011 |
Clip(FOR HOOD AIR INTAKE DUCT SEAL)
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 53381 — Seal, Hood TO Radiator Support | ||||
| 53381-0N030 |
Seal, Hood TO Radiator Support
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53381-0N030 |
Seal, Hood TO Radiator Support
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53381-0N030 |
Seal, Hood TO Radiator Support
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53381A — Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90467-08011 |
Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90467-08011 |
Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53396A — Seal, Hood TO Front End Panel, NO.2 | ||||
| 53396-0N010 |
Seal, Hood TO Front End Panel, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53396-0N010 |
Seal, Hood TO Front End Panel, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53396-0N010 |
Seal, Hood TO Front End Panel, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53807D — Reinforcement Sub-assy, Front Fender, Top RH | ||||
| 53807-0N020 |
Reinforcement Sub-assy, Front Fender, Top RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53807-0N020 |
Reinforcement Sub-assy, Front Fender, Top RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53807-0N020 |
Reinforcement Sub-assy, Front Fender, Top RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53808D — Reinforcement Sub-assy, Front Fender, Top LH | ||||
| 53808-0N020 |
Reinforcement Sub-assy, Front Fender, Top LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53808-0N020 |
Reinforcement Sub-assy, Front Fender, Top LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53808-0N020 |
Reinforcement Sub-assy, Front Fender, Top LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53811A — Panel, Front Fender, RH | ||||
| 53811-0N040 |
Panel, Front Fender, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53811-0N040 |
Panel, Front Fender, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53811-0N040 |
Panel, Front Fender, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53812C — Panel, Front Fender, LH | ||||
| 53812-0N040 |
Panel, Front Fender, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53812-0N040 |
Panel, Front Fender, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53812-0N040 |
Panel, Front Fender, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53827L — Protector, Front Fender Side Panel, RH | ||||
| 53827-0N030 |
Protector, Front Fender Side Panel, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53827-0N030 |
Protector, Front Fender Side Panel, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53827-0N030 |
Protector, Front Fender Side Panel, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53828K — Protector, Front Fender Side Panel, LH | ||||
| 53828-0N030 |
Protector, Front Fender Side Panel, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53828-0N030 |
Protector, Front Fender Side Panel, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53828-0N030 |
Protector, Front Fender Side Panel, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53831A — Panel, Front Fender Side, Upper RH | ||||
| 53831-0N010 |
Panel, Front Fender Side, Upper RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53831-0N010 |
Panel, Front Fender Side, Upper RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53831-0N010 |
Panel, Front Fender Side, Upper RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53832A — Panel, Front Fender Side, Upper LH | ||||
| 53832-0N010 |
Panel, Front Fender Side, Upper LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53832-0N010 |
Panel, Front Fender Side, Upper LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53832-0N010 |
Panel, Front Fender Side, Upper LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53835C — Bracket, Front Side Panel, RH | ||||
| 53835-0N020 |
Bracket, Front Side Panel, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53835-0N020 |
Bracket, Front Side Panel, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53835-0N020 |
Bracket, Front Side Panel, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53836B — Bracket, Front Side Panel, LH | ||||
| 53836-0N020 |
Bracket, Front Side Panel, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53836-0N020 |
Bracket, Front Side Panel, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53836-0N020 |
Bracket, Front Side Panel, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53857 — Retainer, Front Wheel Opening Extension, RH | ||||
| 53857-0R010 note |
Retainer, Front Wheel Opening Extension, RH
2017-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53857-47011 |
Retainer, Front Wheel Opening Extension, RH
2015-01 → 2017-01
ended
|
ARS212,GRS218 | — | |
| 53857-47011 note |
Retainer, Front Wheel Opening Extension, RH
2017-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53857-0R010 note |
Retainer, Front Wheel Opening Extension, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53857-0R010 note |
Retainer, Front Wheel Opening Extension, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53857-47011 note |
Retainer, Front Wheel Opening Extension, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53857-47011 note |
Retainer, Front Wheel Opening Extension, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53858 — Retainer, Front Wheel Opening Extension, LH | ||||
| 53857-0R010 note |
Retainer, Front Wheel Opening Extension, LH
2017-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53857-47011 |
Retainer, Front Wheel Opening Extension, LH
2015-01 → 2017-01
ended
|
ARS212,GRS218 | — | |
| 53857-47011 note |
Retainer, Front Wheel Opening Extension, LH
2017-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53857-0R010 note |
Retainer, Front Wheel Opening Extension, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53857-0R010 note |
Retainer, Front Wheel Opening Extension, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53857-47011 note |
Retainer, Front Wheel Opening Extension, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53857-47011 note |
Retainer, Front Wheel Opening Extension, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53882N — Clip(FOR FRONT FENDER SEAL) | ||||
| 90467-06205-C0 note |
Clip(FOR FRONT FENDER SEAL)
2015-01 → 2016-02
ended
|
ARS212,GRS218 | — | |
| 90467-C0038 |
Clip(FOR FRONT FENDER SEAL)
2016-03 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90467-C0038 |
Clip(FOR FRONT FENDER SEAL)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90467-C0038 |
Clip(FOR FRONT FENDER SEAL)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53882P — Seal, Front Fender, RH | ||||
| 53882-0N020 |
Seal, Front Fender, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53882-0N020 |
Seal, Front Fender, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53882-0N020 |
Seal, Front Fender, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53883K — Seal, Front Fender, LH | ||||
| 53883-0N020 |
Seal, Front Fender, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53883-0N020 |
Seal, Front Fender, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53883-0N020 |
Seal, Front Fender, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
