Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

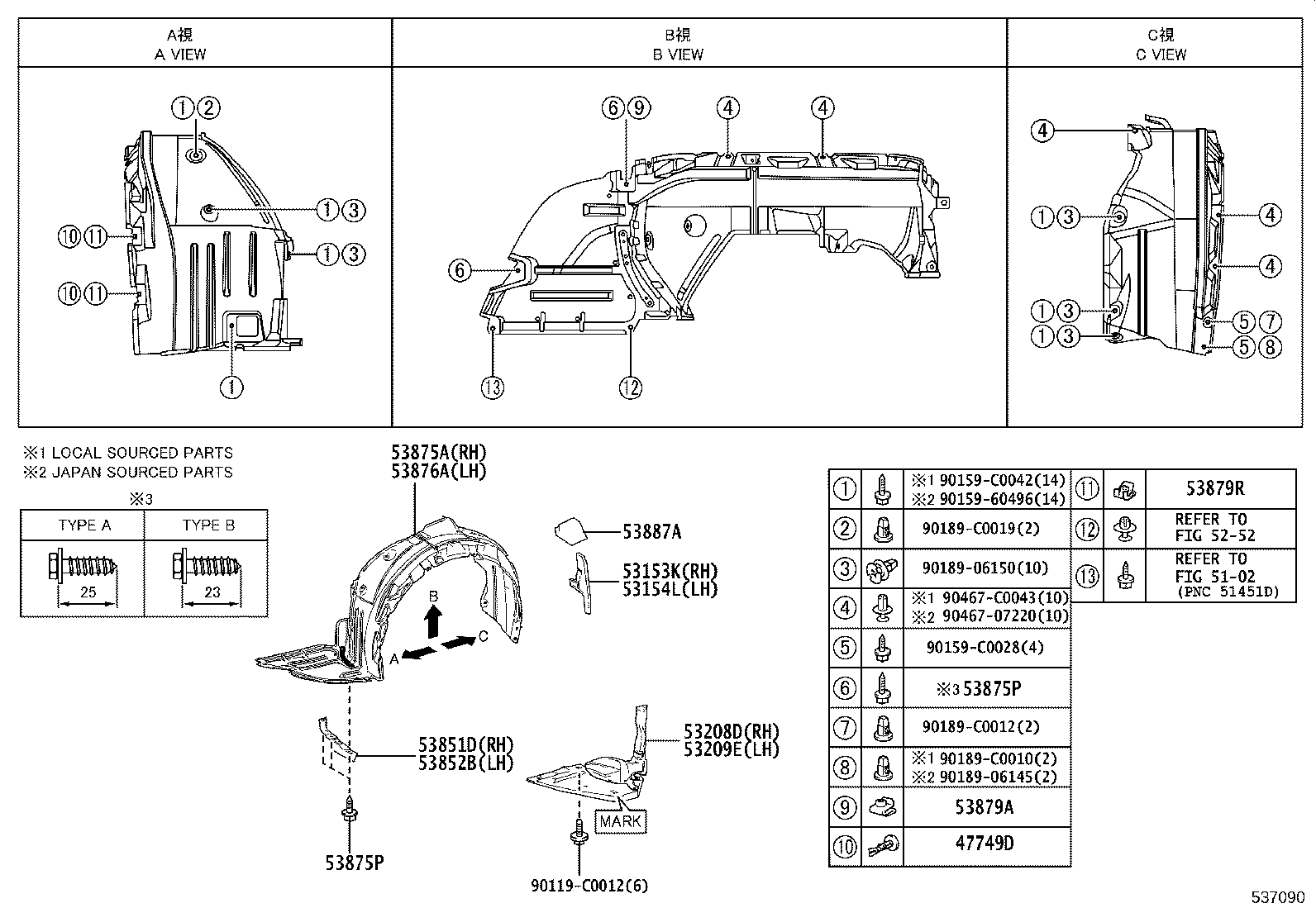

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47749D — Clip, Pin Hold | ||||
| 47749-50090 |
Clip, Pin Hold
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 47749-50090 |
Clip, Pin Hold
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 47749-50090 |
Clip, Pin Hold
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53153K — Guide, Radiator Grille Side Air, RH | ||||
| 53154-0N040 |
Guide, Radiator Grille Side Air, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53154-0N040 |
Guide, Radiator Grille Side Air, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53154-0N040 |
Guide, Radiator Grille Side Air, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53154L — Guide, Radiator Grille Side Air, LH | ||||
| 53154-0N040 |
Guide, Radiator Grille Side Air, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53154-0N040 |
Guide, Radiator Grille Side Air, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53154-0N040 |
Guide, Radiator Grille Side Air, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53208D — Duct Sub-assy, Cool Air Intake, NO.2 | ||||
| 53208-0N060 |
Duct Sub-assy, Cool Air Intake, NO.2
2015-01 → 2017-03
ended
|
ARS212,GRS218 | — | |
| 53208-0N060 note |
Duct Sub-assy, Cool Air Intake, NO.2
2017-03 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53208-0N090 note |
Duct Sub-assy, Cool Air Intake, NO.2
2017-03 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53208-0N060 note |
Duct Sub-assy, Cool Air Intake, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53208-0N060 note |
Duct Sub-assy, Cool Air Intake, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53208-0N090 note |
Duct Sub-assy, Cool Air Intake, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53208-0N090 note |
Duct Sub-assy, Cool Air Intake, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53209E — Duct Sub-assy, Cool Air Intake, NO.3 | ||||
| 53209-0N020 |
Duct Sub-assy, Cool Air Intake, NO.3
2015-01 → 2017-03
ended
|
ARS212,GRS218 | — | |
| 53209-0N020 note |
Duct Sub-assy, Cool Air Intake, NO.3
2017-03 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53209-0N040 note |
Duct Sub-assy, Cool Air Intake, NO.3
2017-03 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53209-0N020 note |
Duct Sub-assy, Cool Air Intake, NO.3
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53209-0N020 note |
Duct Sub-assy, Cool Air Intake, NO.3
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53209-0N040 note |
Duct Sub-assy, Cool Air Intake, NO.3
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53209-0N040 note |
Duct Sub-assy, Cool Air Intake, NO.3
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53851D — Pad, Front Wheel Opening Extension, RH | ||||
| 53851-0N030 |
Pad, Front Wheel Opening Extension, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53851-0N030 |
Pad, Front Wheel Opening Extension, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53851-0N030 |
Pad, Front Wheel Opening Extension, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53852B — Pad, Front Wheel Opening Extension, LH | ||||
| 53852-0N030 |
Pad, Front Wheel Opening Extension, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53852-0N030 |
Pad, Front Wheel Opening Extension, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53852-0N030 |
Pad, Front Wheel Opening Extension, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53875A — Liner, Front Fender, RH | ||||
| 53875-0N040 |
Liner, Front Fender, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53875-0N040 |
Liner, Front Fender, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53875-0N040 |
Liner, Front Fender, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53875P — Screw, NO.1 | ||||
| 90159-C0012 |
Screw, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90159-60477 note |
Screw, NO.1
2017-12 → —
|
ARS212 | — | |
| 90159-C0012 note |
Screw, NO.1
2017-12 → —
|
ARS212 | — | |
| 53876A — Liner, Front Fender, LH | ||||
| 53876-0N040 |
Liner, Front Fender, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53876-0N040 |
Liner, Front Fender, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53876-0N040 |
Liner, Front Fender, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53879A — Retainer, Front Fender Liner | ||||
| 53879-0N020 |
Retainer, Front Fender Liner
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53879-0N020 |
Retainer, Front Fender Liner
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53879-0N020 |
Retainer, Front Fender Liner
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53879R — Retainer, Front Fender Liner | ||||
| 53879-0N010 |
Retainer, Front Fender Liner
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53879-0N010 |
Retainer, Front Fender Liner
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53879-0N010 |
Retainer, Front Fender Liner
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53887A — Seal, Front Fender Splash Shield, NO.1 | ||||
| 53887-0N010 |
Seal, Front Fender Splash Shield, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53887-0N010 |
Seal, Front Fender Splash Shield, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53887-0N010 |
Seal, Front Fender Splash Shield, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
