Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

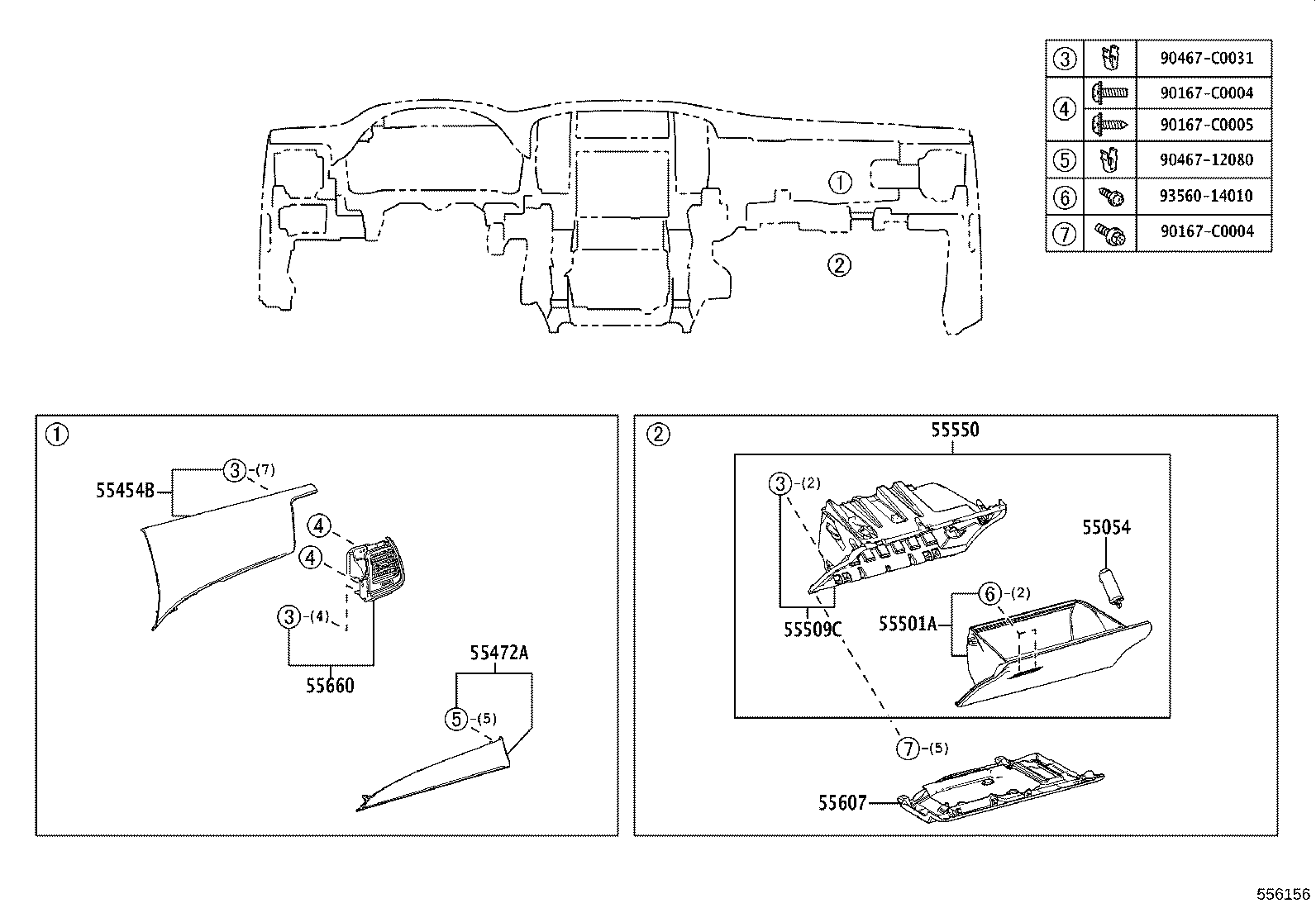

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55054 — Stopper Sub-assy, Glove Compartment Door | ||||
| 55054-75020 |
Stopper Sub-assy, Glove Compartment Door
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 55054-75020 |
Stopper Sub-assy, Glove Compartment Door
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 55054-75020 |
Stopper Sub-assy, Glove Compartment Door
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 55454B — Pad, Instrument Panel Safety, NO.2 | ||||
| 55454-0N010-C0 note |
Pad, Instrument Panel Safety, NO.2
2015-01 → 2015-11
ended
|
ARS212,GRS218 | — | |
| 55454-0N010-C1 note |
Pad, Instrument Panel Safety, NO.2
2015-01 → 2015-11
ended
|
ARS212,GRS218 Q,S,U | — | |
| 55454-0N011-C0 note |
Pad, Instrument Panel Safety, NO.2
2015-12 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 55454-0N011-C1 note |
Pad, Instrument Panel Safety, NO.2
2015-12 → 2017-12
ended
|
ARS212 S | — | |
| 55454-0N011-C1 note |
Pad, Instrument Panel Safety, NO.2
2015-12 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 55454-0N011-C0 note |
Pad, Instrument Panel Safety, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 55454-0N011-C0 note |
Pad, Instrument Panel Safety, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 55454-0N011-C1 note |
Pad, Instrument Panel Safety, NO.2
2017-12 → —
|
ARS212 Q,S,U | — | |
| 55454-0N011-C1 note |
Pad, Instrument Panel Safety, NO.2
2017-12 → —
|
ARS212 P | — | |
| 55472A — Moulding, Instrument Cluster, NO.2 | ||||
| 55472-0N060-C0 note |
Moulding, Instrument Cluster, NO.2
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 55472-0N060-C0 note |
Moulding, Instrument Cluster, NO.2
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 55472-0N060-E0 note |
Moulding, Instrument Cluster, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 55472-0N060-C1 note |
Moulding, Instrument Cluster, NO.2
2017-12 → —
|
ARS212 Q,S,U | — | |
| 55472-0N060-C1 note |
Moulding, Instrument Cluster, NO.2
2017-12 → —
|
ARS212 P | — | |
| 55472-0N060-E1 note |
Moulding, Instrument Cluster, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 55472-0N060-E1 note |
Moulding, Instrument Cluster, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 55501A — Door Sub-assy, Glove Compartment | ||||
| 55501-0N030-C0 note |
Door Sub-assy, Glove Compartment
2015-01 → 2015-12
ended
|
ARS212 S | — | |
| 55501-0N030-C0 note |
Door Sub-assy, Glove Compartment
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 55501-0N030-C0 note |
Door Sub-assy, Glove Compartment
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 55501-0N030-C0 note |
Door Sub-assy, Glove Compartment
2015-12 → 2017-12
ended
|
ARS212 S | — | |
| 55501-0N030-C0 note |
Door Sub-assy, Glove Compartment
2017-12 → —
|
ARS212 P | — | |
| 55501-0N030-C0 note |
Door Sub-assy, Glove Compartment
2017-12 → —
|
ARS212 Q,S,U | — | |
| 55501-0N030-C0 note |
Door Sub-assy, Glove Compartment
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 55509C — Panel Sub-assy, Glove Compartment | ||||
| 55509-0N010 |
Panel Sub-assy, Glove Compartment
2015-01 → 2015-11
ended
|
ARS212,GRS218 | — | |
| 55509-0N011 |
Panel Sub-assy, Glove Compartment
2015-12 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 55509-0N011 |
Panel Sub-assy, Glove Compartment
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 55509-0N011 |
Panel Sub-assy, Glove Compartment
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 55550 — Door Assy, Glove Compartment | ||||
| 55550-0N030-C0 note |
Door Assy, Glove Compartment
2015-01 → 2015-11
ended
|
ARS212,GRS218 B | — | |
| 55550-0N030-C0 note |
Door Assy, Glove Compartment
2015-01 → 2015-11
ended
|
ARS212,GRS218 Q,S,U | — | |
| 55550-0N031-C0 note |
Door Assy, Glove Compartment
2015-12 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 55550-0N031-C0 note |
Door Assy, Glove Compartment
2015-12 → 2017-12
ended
|
ARS212 S | — | |
| 55550-0N031-C0 note |
Door Assy, Glove Compartment
2015-12 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 55550-0N031-C0 note |
Door Assy, Glove Compartment
2017-12 → —
|
ARS212 P | — | |
| 55550-0N031-C0 note |
Door Assy, Glove Compartment
2017-12 → —
|
ARS212 Q,S,U | — | |
| 55550-0N031-C0 note |
Door Assy, Glove Compartment
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 55607 — Cover Sub-assy, Instrument Panel Under, NO.2 | ||||
| 55607-0N030 |
Cover Sub-assy, Instrument Panel Under, NO.2
2015-01 → 2015-11
ended
|
ARS212,GRS218 | — | |
| 55607-0N031 |
Cover Sub-assy, Instrument Panel Under, NO.2
2015-12 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 55607-0N031 |
Cover Sub-assy, Instrument Panel Under, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 55607-0N031 |
Cover Sub-assy, Instrument Panel Under, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 55660 — Register Assy, Instrument Panel, NO.2 | ||||
| 55660-0N040-C0 note |
Register Assy, Instrument Panel, NO.2
2015-01 → 2015-12
ended
|
ARS212 S | — | |
| 55660-0N040-C0 note |
Register Assy, Instrument Panel, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 55660-0N040-C0 note |
Register Assy, Instrument Panel, NO.2
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 55660-0N040-C0 note |
Register Assy, Instrument Panel, NO.2
2015-12 → 2017-12
ended
|
ARS212 S | — | |
| 55660-0N040-C0 note |
Register Assy, Instrument Panel, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 55660-0N040-C0 note |
Register Assy, Instrument Panel, NO.2
2017-12 → —
|
ARS212 Q,S,U | — | |
| 55660-0N040-C0 note |
Register Assy, Instrument Panel, NO.2
2017-12 → —
|
ARS212 P | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
