Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

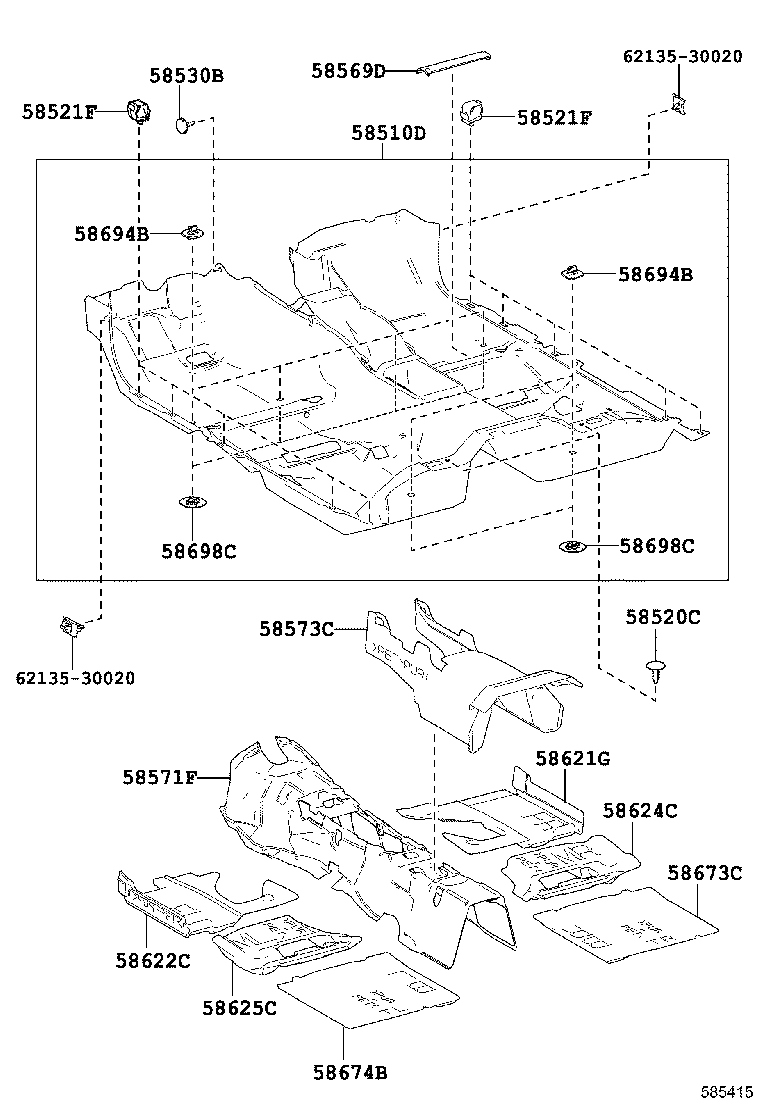

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58510D — Carpet Assy, Floor, Front | ||||
| 58510-0N050-C0 note |
Carpet Assy, Floor, Front
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 58510-0N050-C0 note |
Carpet Assy, Floor, Front
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 58510-0N050-C0 note |
Carpet Assy, Floor, Front
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 58510-0N050-C0 note |
Carpet Assy, Floor, Front
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58510-0N050-C0 note |
Carpet Assy, Floor, Front
2017-12 → —
|
ARS212 Q,S,U | — | |
| 58510-0N050-C0 note |
Carpet Assy, Floor, Front
2017-12 → —
|
ARS212 P | — | |
| 58520C — Clip(FOR FRONT FLOOR CARPET) | ||||
| 90467-C0016-C0 note |
Clip(FOR FRONT FLOOR CARPET)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90467-C0016-C1 note |
Clip(FOR FRONT FLOOR CARPET)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90467-C0016-C1 note |
Clip(FOR FRONT FLOOR CARPET)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58521F — Hook, Floor Carpet | ||||
| 58521-0P020 |
Hook, Floor Carpet
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58521-0P020 |
Hook, Floor Carpet
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58521-0P020 |
Hook, Floor Carpet
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58530B — Clip(FOR FRONT FLOOR CARPET) | ||||
| 90467-07049-23 note |
Clip(FOR FRONT FLOOR CARPET)
2016-10 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90467-07049-C0 note |
Clip(FOR FRONT FLOOR CARPET)
2015-01 → 2016-10
ended
|
ARS212,GRS218 | — | |
| 90467-07049-23 note |
Clip(FOR FRONT FLOOR CARPET)
2017-12 → 2018-11
ended
|
ARS212 | — | |
| 90467-C0059-C0 note |
Clip(FOR FRONT FLOOR CARPET)
2018-12 → 2019-10
ended
|
ARS212 B | — | |
| 90467-C0059-C0 note |
Clip(FOR FRONT FLOOR CARPET)
2018-12 → —
|
ARS212 P,Q,S,U | — | |
| 58569D — Cover, Front Floor Caution Plate | ||||
| 58569-0N010-C0 note |
Cover, Front Floor Caution Plate
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 58569-0N010-C0 note |
Cover, Front Floor Caution Plate
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 58569-0N010-C0 note |
Cover, Front Floor Caution Plate
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 58569-0N010-C0 note |
Cover, Front Floor Caution Plate
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58569-0N010-C0 note |
Cover, Front Floor Caution Plate
2017-12 → —
|
ARS212 Q,S,U | — | |
| 58569-0N010-C0 note |
Cover, Front Floor Caution Plate
2017-12 → —
|
ARS212 P | — | |
| 58571F — Pad, Front Floor, Front | ||||
| 58571-0N030 |
Pad, Front Floor, Front
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58571-0N030 |
Pad, Front Floor, Front
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58571-0N030 |
Pad, Front Floor, Front
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58573C — Pad, Front Floor Center | ||||
| 58573-0N040 |
Pad, Front Floor Center
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58573-0N040 |
Pad, Front Floor Center
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58573-0N040 |
Pad, Front Floor Center
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58621G — Pad, Front Floor Silencer, RH | ||||
| 58621-0N020 |
Pad, Front Floor Silencer, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58621-0N020 |
Pad, Front Floor Silencer, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58621-0N020 |
Pad, Front Floor Silencer, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58622C — Pad, Front Floor Silencer, LH | ||||
| 58622-0N020 |
Pad, Front Floor Silencer, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58622-0N020 |
Pad, Front Floor Silencer, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58622-0N020 |
Pad, Front Floor Silencer, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58624C — Pad, Center Floor Silencer, RH | ||||
| 58624-0N020 |
Pad, Center Floor Silencer, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58624-0N020 |
Pad, Center Floor Silencer, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58624-0N020 |
Pad, Center Floor Silencer, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58625C — Pad, Center Floor Silencer, LH | ||||
| 58625-0N020 |
Pad, Center Floor Silencer, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58625-0N020 |
Pad, Center Floor Silencer, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58625-0N020 |
Pad, Center Floor Silencer, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58673C — Pad, Rear Floor Silencer, NO.1 | ||||
| 58673-0N030 |
Pad, Rear Floor Silencer, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58673-0N030 |
Pad, Rear Floor Silencer, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58673-0N030 |
Pad, Rear Floor Silencer, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58674B — Pad, Rear Floor Silencer, NO.2 | ||||
| 58674-0N030 |
Pad, Rear Floor Silencer, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58674-0N030 |
Pad, Rear Floor Silencer, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58674-0N030 |
Pad, Rear Floor Silencer, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58694B — Plate, Mat Set, Upper | ||||
| 58694-76010 |
Plate, Mat Set, Upper
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58694-76010 |
Plate, Mat Set, Upper
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58694-76010 |
Plate, Mat Set, Upper
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58698C — Plate, Mat Set, Lower | ||||
| 58698-76010 |
Plate, Mat Set, Lower
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58698-76010 |
Plate, Mat Set, Lower
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58698-76010 |
Plate, Mat Set, Lower
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
