Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

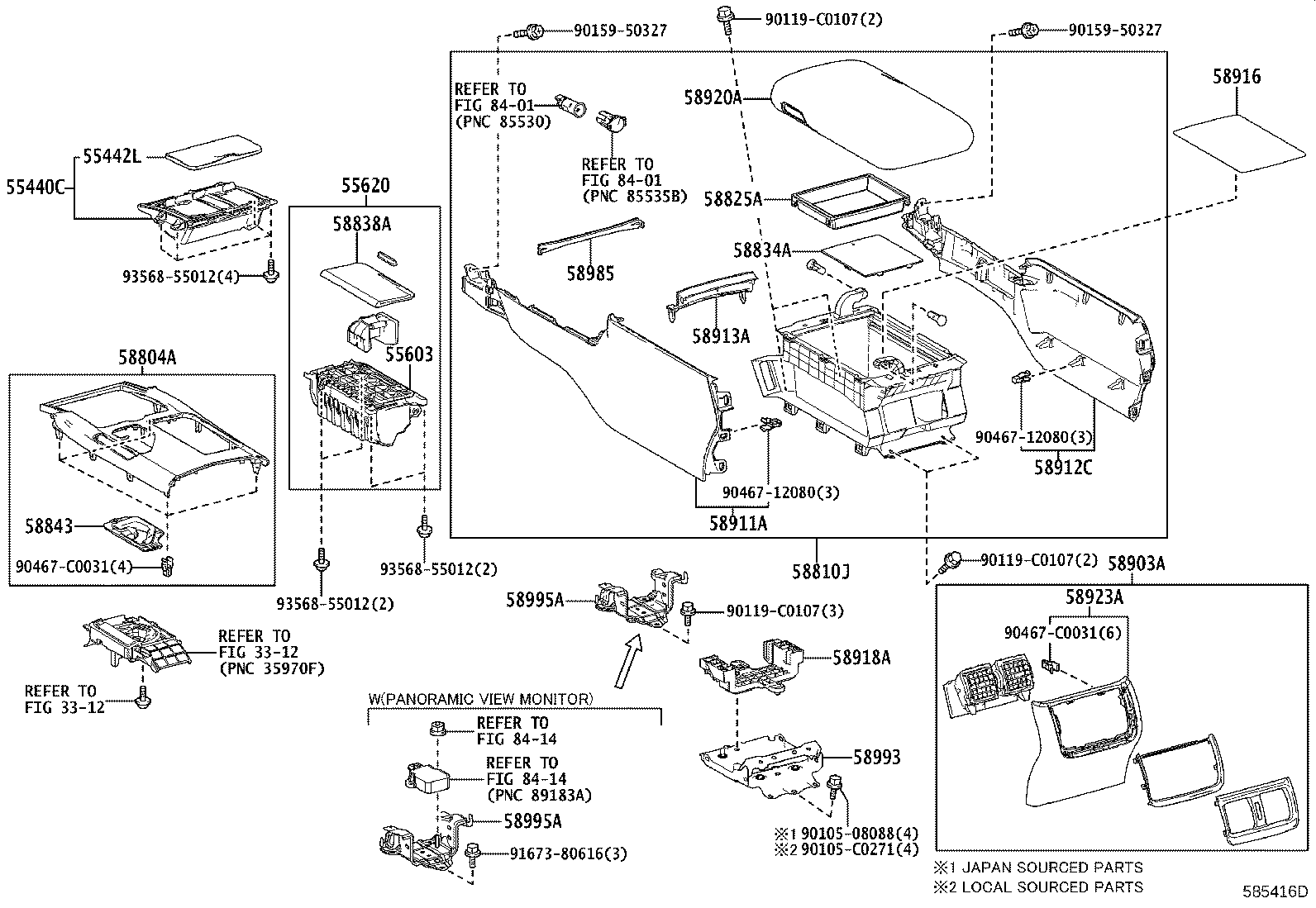

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55440C — Box Assy, Instrument Panel | ||||
| 55440-0N020-C0 note |
Box Assy, Instrument Panel
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 55440-0N020-C0 note |
Box Assy, Instrument Panel
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 55440-0N020-E0 note |
Box Assy, Instrument Panel
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 55440-0N020-C1 note |
Box Assy, Instrument Panel
2017-12 → —
|
ARS212 Q,S,U | — | |
| 55440-0N020-C1 note |
Box Assy, Instrument Panel
2017-12 → —
|
ARS212 P | — | |
| 55440-0N020-E1 note |
Box Assy, Instrument Panel
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 55440-0N020-E1 note |
Box Assy, Instrument Panel
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 55442L — Door, Instrument Panel | ||||
| 55442-0N080-C0 note |
Door, Instrument Panel
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 55442-0N080-C0 note |
Door, Instrument Panel
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 55442-0N080-E0 note |
Door, Instrument Panel
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 55442-0N080-C1 note |
Door, Instrument Panel
2017-12 → —
|
ARS212 Q,S,U | — | |
| 55442-0N080-C1 note |
Door, Instrument Panel
2017-12 → —
|
ARS212 P | — | |
| 55442-0N080-E1 note |
Door, Instrument Panel
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 55442-0N080-E1 note |
Door, Instrument Panel
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 55603 — Case Sub-assy, Instrument Panel Cup Holder | ||||
| 55603-0N010 |
Case Sub-assy, Instrument Panel Cup Holder
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 55603-0N010 |
Case Sub-assy, Instrument Panel Cup Holder
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 55603-0N010 |
Case Sub-assy, Instrument Panel Cup Holder
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 55620 — Holder Assy, Instrument Panel Cup | ||||
| 55620-0N060-C0 note |
Holder Assy, Instrument Panel Cup
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 55620-0N060-C0 note |
Holder Assy, Instrument Panel Cup
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 55620-0N060-E0 note |
Holder Assy, Instrument Panel Cup
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 55620-0N060-C1 note |
Holder Assy, Instrument Panel Cup
2017-12 → —
|
ARS212 Q,S,U | — | |
| 55620-0N060-C1 note |
Holder Assy, Instrument Panel Cup
2017-12 → —
|
ARS212 P | — | |
| 55620-0N060-E1 note |
Holder Assy, Instrument Panel Cup
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 55620-0N060-E1 note |
Holder Assy, Instrument Panel Cup
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58804A — Panel Sub-assy, Console, Upper | ||||
| 58804-0N070-C0 note |
Panel Sub-assy, Console, Upper
2015-01 → 2015-11
ended
|
ARS212,GRS218 Q,S,U | — | |
| 58804-0N070-E0 note |
Panel Sub-assy, Console, Upper
2015-01 → 2015-11
ended
|
ARS212,GRS218 | — | |
| 58804-0N071-C0 note |
Panel Sub-assy, Console, Upper
2015-12 → 2017-12
ended
|
ARS212 S | — | |
| 58804-0N071-C0 note |
Panel Sub-assy, Console, Upper
2015-12 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 58804-0N071-E0 note |
Panel Sub-assy, Console, Upper
2015-12 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58804-0N071-C1 note |
Panel Sub-assy, Console, Upper
2017-12 → —
|
ARS212 P | — | |
| 58804-0N071-C1 note |
Panel Sub-assy, Console, Upper
2017-12 → —
|
ARS212 Q,S,U | — | |
| 58804-0N071-E1 note |
Panel Sub-assy, Console, Upper
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58804-0N071-E1 note |
Panel Sub-assy, Console, Upper
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58810J — Box Assy, Console | ||||
| 58810-0N050-A0 note |
Box Assy, Console
2015-01 → 2015-11
ended
|
ARS212,GRS218 | — | |
| 58810-0N050-C0 note |
Box Assy, Console
2015-01 → 2015-11
ended
|
ARS212,GRS218 Q,S,U | — | |
| 58810-0N051-A0 note |
Box Assy, Console
2015-12 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58810-0N051-C0 note |
Box Assy, Console
2015-12 → 2017-12
ended
|
ARS212 S | — | |
| 58810-0N051-C0 note |
Box Assy, Console
2015-12 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 58810-0N051-A0 note |
Box Assy, Console
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58810-0N051-A0 note |
Box Assy, Console
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58810-0N051-C0 note |
Box Assy, Console
2017-12 → —
|
ARS212 Q,S,U | — | |
| 58810-0N051-C0 note |
Box Assy, Console
2017-12 → —
|
ARS212 P | — | |
| 58825A — Pocket, Console Box | ||||
| 58825-0N030 |
Pocket, Console Box
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58825-0N030 |
Pocket, Console Box
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58825-0N030 |
Pocket, Console Box
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58834A — Cover, Console, Lower | ||||
| 58834-0P010 |
Cover, Console, Lower
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58834-0P010 |
Cover, Console, Lower
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58834-0P010 |
Cover, Console, Lower
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58838A — Door, Console Cup Holder Box | ||||
| 55442-0N060-C0 note |
Door, Console Cup Holder Box
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 55442-0N060-C0 note |
Door, Console Cup Holder Box
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 55442-0N060-E0 note |
Door, Console Cup Holder Box
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 55442-0N060-C1 note |
Door, Console Cup Holder Box
2017-12 → —
|
ARS212 Q,S,U | — | |
| 55442-0N060-C1 note |
Door, Console Cup Holder Box
2017-12 → —
|
ARS212 P | — | |
| 55442-0N060-E1 note |
Door, Console Cup Holder Box
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 55442-0N060-E1 note |
Door, Console Cup Holder Box
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58843 — Bezel, Shifting Hole | ||||
| 58843-0N040 |
Bezel, Shifting Hole
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58843-0N040 |
Bezel, Shifting Hole
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58843-0N040 |
Bezel, Shifting Hole
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58903A — Panel Sub-assy, Console Rear End | ||||
| 58903-0N030-A0 note |
Panel Sub-assy, Console Rear End
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58903-0N030-C0 note |
Panel Sub-assy, Console Rear End
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 58903-0N030-C0 note |
Panel Sub-assy, Console Rear End
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 58903-0N030-A1 note |
Panel Sub-assy, Console Rear End
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58903-0N030-A1 note |
Panel Sub-assy, Console Rear End
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58903-0N030-C1 note |
Panel Sub-assy, Console Rear End
2017-12 → —
|
ARS212 Q,S,U | — | |
| 58903-0N030-C1 note |
Panel Sub-assy, Console Rear End
2017-12 → —
|
ARS212 P | — | |
| 58911A — Panel, Box Side, NO.1 | ||||
| 58911-0N040-A0 note |
Panel, Box Side, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58911-0N040-C0 note |
Panel, Box Side, NO.1
2015-01 → 2015-12
ended
|
ARS212 S | — | |
| 58911-0N040-C0 note |
Panel, Box Side, NO.1
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 58911-0N040-C0 note |
Panel, Box Side, NO.1
2015-12 → 2017-12
ended
|
ARS212 S | — | |
| 58911-0N040-A0 note |
Panel, Box Side, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58911-0N040-A0 note |
Panel, Box Side, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58911-0N040-C0 note |
Panel, Box Side, NO.1
2017-12 → —
|
ARS212 Q,S,U | — | |
| 58911-0N040-C0 note |
Panel, Box Side, NO.1
2017-12 → —
|
ARS212 P | — | |
| 58912C — Panel, Box Side, NO.2 | ||||
| 58912-0N040-A0 note |
Panel, Box Side, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58912-0N040-C0 note |
Panel, Box Side, NO.2
2015-12 → 2017-12
ended
|
ARS212 S | — | |
| 58912-0N040-C0 note |
Panel, Box Side, NO.2
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 58912-0N040-C0 note |
Panel, Box Side, NO.2
2015-01 → 2015-12
ended
|
ARS212 S | — | |
| 58912-0N040-A0 note |
Panel, Box Side, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58912-0N040-A0 note |
Panel, Box Side, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58912-0N040-C0 note |
Panel, Box Side, NO.2
2017-12 → —
|
ARS212 Q,S,U | — | |
| 58912-0N040-C0 note |
Panel, Box Side, NO.2
2017-12 → —
|
ARS212 P | — | |
| 58913A — Panel, Box, NO.3 | ||||
| 58913-0N030-A0 note |
Panel, Box, NO.3
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58913-0N030-C0 note |
Panel, Box, NO.3
2015-01 → 2015-12
ended
|
ARS212 S | — | |
| 58913-0N030-C0 note |
Panel, Box, NO.3
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 58913-0N030-C0 note |
Panel, Box, NO.3
2015-12 → 2017-12
ended
|
ARS212 S | — | |
| 58913-0N030-A0 note |
Panel, Box, NO.3
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58913-0N030-A0 note |
Panel, Box, NO.3
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58913-0N030-C0 note |
Panel, Box, NO.3
2017-12 → —
|
ARS212 Q,S,U | — | |
| 58913-0N030-C0 note |
Panel, Box, NO.3
2017-12 → —
|
ARS212 P | — | |
| 58916 — Mat, Box Bottom | ||||
| 58916-0N040 |
Mat, Box Bottom
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58916-0N040 |
Mat, Box Bottom
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58916-0N040 |
Mat, Box Bottom
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58918A — Bracket, Box Support | ||||
| 58918-0N010 |
Bracket, Box Support
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58918-0N010 |
Bracket, Box Support
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58918-0N010 |
Bracket, Box Support
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58920A — Armrest Assy, Rear Console | ||||
| 58920-0N030-A0 note |
Armrest Assy, Rear Console
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58920-0N030-C0 note |
Armrest Assy, Rear Console
2015-01 → 2015-12
ended
|
ARS212 S | — | |
| 58920-0N030-C0 note |
Armrest Assy, Rear Console
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 58920-0N030-C0 note |
Armrest Assy, Rear Console
2015-12 → 2017-12
ended
|
ARS212 S | — | |
| 58920-0N030-A0 note |
Armrest Assy, Rear Console
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58920-0N030-A0 note |
Armrest Assy, Rear Console
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58920-0N030-C0 note |
Armrest Assy, Rear Console
2017-12 → —
|
ARS212 Q,S,U | — | |
| 58920-0N030-C0 note |
Armrest Assy, Rear Console
2017-12 → —
|
ARS212 P | — | |
| 58923A — Panel, Console Rear End | ||||
| 58923-0N020-A0 note |
Panel, Console Rear End
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58923-0N020-C0 note |
Panel, Console Rear End
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 58923-0N020-C0 note |
Panel, Console Rear End
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 58923-0N020-A0 note |
Panel, Console Rear End
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58923-0N020-A0 note |
Panel, Console Rear End
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58923-0N020-C0 note |
Panel, Console Rear End
2017-12 → —
|
ARS212 Q,S,U | — | |
| 58923-0N020-C0 note |
Panel, Console Rear End
2017-12 → —
|
ARS212 P | — | |
| 58985 — Retainer, Console Box | ||||
| 58985-0N030 |
Retainer, Console Box
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58985-0N030 |
Retainer, Console Box
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58985-0N030 |
Retainer, Console Box
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58993 — Bracket, Console Box Mounting, Rear | ||||
| 58105-0P010 |
Bracket, Console Box Mounting, Rear
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58105-0P010 |
Bracket, Console Box Mounting, Rear
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58105-0P010 |
Bracket, Console Box Mounting, Rear
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58995A — Bracket, Console Box Mounting, NO.1 | ||||
| 58995-0N010 |
Bracket, Console Box Mounting, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58995-30220 note |
Bracket, Console Box Mounting, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 58995-0N010 |
Bracket, Console Box Mounting, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58995-0N010 |
Bracket, Console Box Mounting, NO.1
2017-12 → —
|
ARS212 P,Q,S | — | |
| 58995-30220 |
Bracket, Console Box Mounting, NO.1
2017-12 → —
|
ARS212 U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
