Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

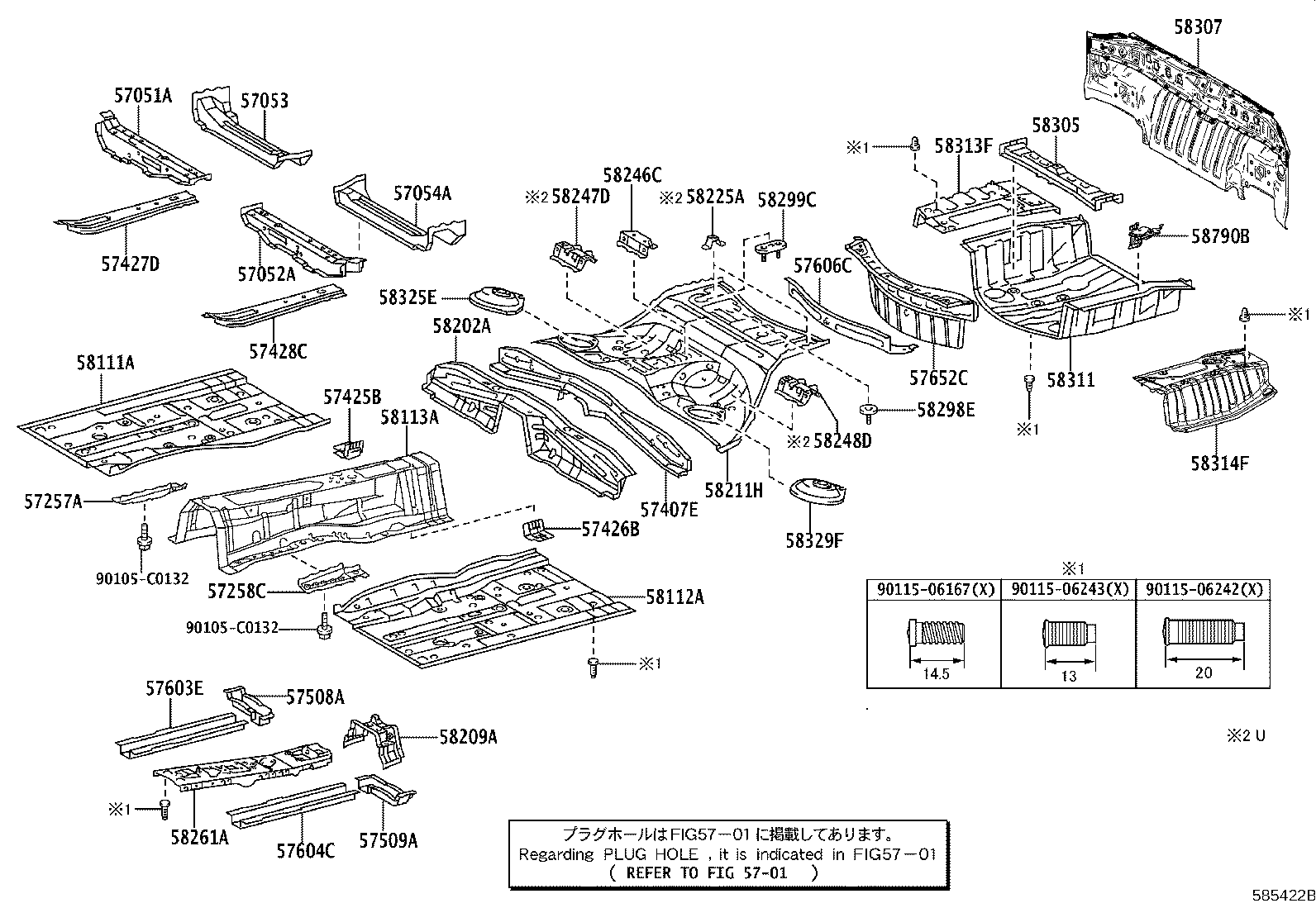

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 57051A — Member Sub-assy, Front Floor Cross, RH | ||||
| 57051-0P010 |
Member Sub-assy, Front Floor Cross, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57051-0P010 |
Member Sub-assy, Front Floor Cross, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57051-0P010 |
Member Sub-assy, Front Floor Cross, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57052A — Member Sub-assy, Front Floor Cross, LH | ||||
| 57052-0N010 |
Member Sub-assy, Front Floor Cross, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57052-0N010 |
Member Sub-assy, Front Floor Cross, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57052-0N010 |
Member Sub-assy, Front Floor Cross, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57053 — Reinforcement Sub-assy, Front Floor Crossmember, RH | ||||
| 57053-30071 |
Reinforcement Sub-assy, Front Floor Crossmember, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57053-30071 |
Reinforcement Sub-assy, Front Floor Crossmember, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57053-30071 |
Reinforcement Sub-assy, Front Floor Crossmember, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57054A — Reinforcement Sub-assy, Front Floor Crossmember, LH | ||||
| 57054-30071 |
Reinforcement Sub-assy, Front Floor Crossmember, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57054-30071 |
Reinforcement Sub-assy, Front Floor Crossmember, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57054-30071 |
Reinforcement Sub-assy, Front Floor Crossmember, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57257A — Bracket, Engine Rear Mounting Member, RH | ||||
| 57257-0N010 |
Bracket, Engine Rear Mounting Member, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57257-0N010 |
Bracket, Engine Rear Mounting Member, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57257-0N010 |
Bracket, Engine Rear Mounting Member, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57258C — Bracket, Engine Rear Mounting Member, LH | ||||
| 57258-0P010 |
Bracket, Engine Rear Mounting Member, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57258-0P010 |
Bracket, Engine Rear Mounting Member, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57258-0P010 |
Bracket, Engine Rear Mounting Member, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57407E — Member Sub-assy, Center Floor Cross | ||||
| 57407-0N010 |
Member Sub-assy, Center Floor Cross
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57407-0N010 |
Member Sub-assy, Center Floor Cross
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57407-0N010 |
Member Sub-assy, Center Floor Cross
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57425B — Reinforcement, Front Floor, NO.2 RH | ||||
| 57425-0P010 |
Reinforcement, Front Floor, NO.2 RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57425-0P010 |
Reinforcement, Front Floor, NO.2 RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57425-0P010 |
Reinforcement, Front Floor, NO.2 RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57426B — Reinforcement, Front Floor, NO.2 LH | ||||
| 57426-0P010 |
Reinforcement, Front Floor, NO.2 LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57426-0P010 |
Reinforcement, Front Floor, NO.2 LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57426-0P010 |
Reinforcement, Front Floor, NO.2 LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57427D — Reinforcement, Front Floor, NO.3 RH | ||||
| 57427-0N010 |
Reinforcement, Front Floor, NO.3 RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57427-0N010 |
Reinforcement, Front Floor, NO.3 RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57427-0N010 |
Reinforcement, Front Floor, NO.3 RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57428C — Reinforcement, Front Floor, NO.3 LH | ||||
| 57427-0N010 |
Reinforcement, Front Floor, NO.3 LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57427-0N010 |
Reinforcement, Front Floor, NO.3 LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57427-0N010 |
Reinforcement, Front Floor, NO.3 LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57508A — Reinforcement Sub-assy, Front Floor, RH | ||||
| 57508-0N010 |
Reinforcement Sub-assy, Front Floor, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57508-0N010 |
Reinforcement Sub-assy, Front Floor, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57508-0N010 |
Reinforcement Sub-assy, Front Floor, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57509A — Reinforcement Sub-assy, Front Floor, LH | ||||
| 57509-0N010 |
Reinforcement Sub-assy, Front Floor, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57509-0N010 |
Reinforcement Sub-assy, Front Floor, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57509-0N010 |
Reinforcement Sub-assy, Front Floor, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57603E — Extension Sub-assy, Rear Side Member, RH | ||||
| 57603-0N020 |
Extension Sub-assy, Rear Side Member, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57603-0N020 |
Extension Sub-assy, Rear Side Member, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57603-0N020 |
Extension Sub-assy, Rear Side Member, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57604C — Extension Sub-assy, Rear Side Member, LH | ||||
| 57603-0N020 |
Extension Sub-assy, Rear Side Member, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57603-0N020 |
Extension Sub-assy, Rear Side Member, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57603-0N020 |
Extension Sub-assy, Rear Side Member, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57606C — Member Sub-assy, Rear Floor Cross, NO.2 | ||||
| 57606-0N010 |
Member Sub-assy, Rear Floor Cross, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57606-0N010 |
Member Sub-assy, Rear Floor Cross, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57606-0N010 |
Member Sub-assy, Rear Floor Cross, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 57652C — Member, Rear Floor Cross, NO.1 | ||||
| 57652-0N020 |
Member, Rear Floor Cross, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 57652-0N020 |
Member, Rear Floor Cross, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 57652-0N020 |
Member, Rear Floor Cross, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58111A — Pan, Front Floor, RH | ||||
| 58111-30490 |
Pan, Front Floor, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58111-30490 |
Pan, Front Floor, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58111-30490 |
Pan, Front Floor, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58112A — Panel, Front Floor, LH | ||||
| 58112-30180 |
Panel, Front Floor, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58112-30180 |
Panel, Front Floor, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58112-30180 |
Panel, Front Floor, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58113A — Panel, Front Floor, Center | ||||
| 58113-0N020 |
Panel, Front Floor, Center
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58113-0N020 |
Panel, Front Floor, Center
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58113-0N020 |
Panel, Front Floor, Center
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58202A — Pan Sub-assy, Center Floor, Front | ||||
| 58202-0N010 |
Pan Sub-assy, Center Floor, Front
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58202-0N010 |
Pan Sub-assy, Center Floor, Front
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58202-0N010 |
Pan Sub-assy, Center Floor, Front
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58209A — Reinforcement Sub-assy, Drive Shaft Center Support | ||||
| 58209-30050 |
Reinforcement Sub-assy, Drive Shaft Center Support
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58209-30050 |
Reinforcement Sub-assy, Drive Shaft Center Support
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58209-30050 |
Reinforcement Sub-assy, Drive Shaft Center Support
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58211H — Pan, Center Floor | ||||
| 58211-0N010 |
Pan, Center Floor
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,Q,S | — | |
| 58211-0N020 |
Pan, Center Floor
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 58211-0N010 |
Pan, Center Floor
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58211-0N010 |
Pan, Center Floor
2017-12 → —
|
ARS212 P,Q,S | — | |
| 58211-0N020 |
Pan, Center Floor
2017-12 → —
|
ARS212 U | — | |
| 58225A — Bracket, Center Mounting | ||||
| 58225-30060 |
Bracket, Center Mounting
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 58225-30060 |
Bracket, Center Mounting
2017-12 → —
|
ARS212 U | — | |
| 58246C — Bracket, Rear Seat Hinge, Center NO.2 | ||||
| 58246-22020 |
Bracket, Rear Seat Hinge, Center NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58246-22020 |
Bracket, Rear Seat Hinge, Center NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58246-22020 |
Bracket, Rear Seat Hinge, Center NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58247D — Bracket, Rear Seat Hinge, Outer RH | ||||
| 58247-30020 |
Bracket, Rear Seat Hinge, Outer RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 58247-30020 |
Bracket, Rear Seat Hinge, Outer RH
2017-12 → —
|
ARS212 U | — | |
| 58248D — Bracket, Rear Seat Hinge, Outer LH | ||||
| 58248-30030 |
Bracket, Rear Seat Hinge, Outer LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 58248-30030 |
Bracket, Rear Seat Hinge, Outer LH
2017-12 → —
|
ARS212 U | — | |
| 58261A — Cover, Transmission | ||||
| 58261-30231 |
Cover, Transmission
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58261-30231 |
Cover, Transmission
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58261-30231 |
Cover, Transmission
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58298E — Bracket, Hot Air Intake, NO.1 | ||||
| 58298-0P010 |
Bracket, Hot Air Intake, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58298-0P010 |
Bracket, Hot Air Intake, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58298-0P010 |
Bracket, Hot Air Intake, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58299C — Bracket, Hot Air Intake, NO.2 | ||||
| 58299-0P010 |
Bracket, Hot Air Intake, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58299-0P010 |
Bracket, Hot Air Intake, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58299-0P010 |
Bracket, Hot Air Intake, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58305 — Bracket Sub-assy, Spare Wheel Clamp | ||||
| 58305-0N020 |
Bracket Sub-assy, Spare Wheel Clamp
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58305-0N020 |
Bracket Sub-assy, Spare Wheel Clamp
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58305-0N020 |
Bracket Sub-assy, Spare Wheel Clamp
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58307 — Panel Sub-assy, Body Lower Back | ||||
| 58307-0N040 |
Panel Sub-assy, Body Lower Back
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58307-0N040 |
Panel Sub-assy, Body Lower Back
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58307-0N040 |
Panel Sub-assy, Body Lower Back
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58311 — Pan, Rear Floor | ||||
| 58311-0N020 |
Pan, Rear Floor
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58311-0N020 |
Pan, Rear Floor
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58311-0N020 |
Pan, Rear Floor
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58313F — Extension, Rear Floor Pan TO Quarter Panel, RH | ||||
| 58313-0N011 |
Extension, Rear Floor Pan TO Quarter Panel, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58313-0N011 |
Extension, Rear Floor Pan TO Quarter Panel, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58313-0N011 |
Extension, Rear Floor Pan TO Quarter Panel, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58314F — Extension, Rear Floor Pan TO Quarter Panel, LH | ||||
| 58314-0N020 |
Extension, Rear Floor Pan TO Quarter Panel, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58314-0N020 |
Extension, Rear Floor Pan TO Quarter Panel, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58314-0N020 |
Extension, Rear Floor Pan TO Quarter Panel, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58325E — Cover, Rear Floor Service Hole | ||||
| 58325-0N010 |
Cover, Rear Floor Service Hole
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58325-0N010 |
Cover, Rear Floor Service Hole
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58325-0N010 |
Cover, Rear Floor Service Hole
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58329F — Cover, Rear Floor Service Hole, NO.2 | ||||
| 58329-0N010 |
Cover, Rear Floor Service Hole, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58329-0N010 |
Cover, Rear Floor Service Hole, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58329-0N010 |
Cover, Rear Floor Service Hole, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 58790B — Carrier Assy, Jack | ||||
| 58790-0N010 |
Carrier Assy, Jack
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 58790-0N010 |
Carrier Assy, Jack
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 58790-0N010 |
Carrier Assy, Jack
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
