Toyota Crown (CHINA)

2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

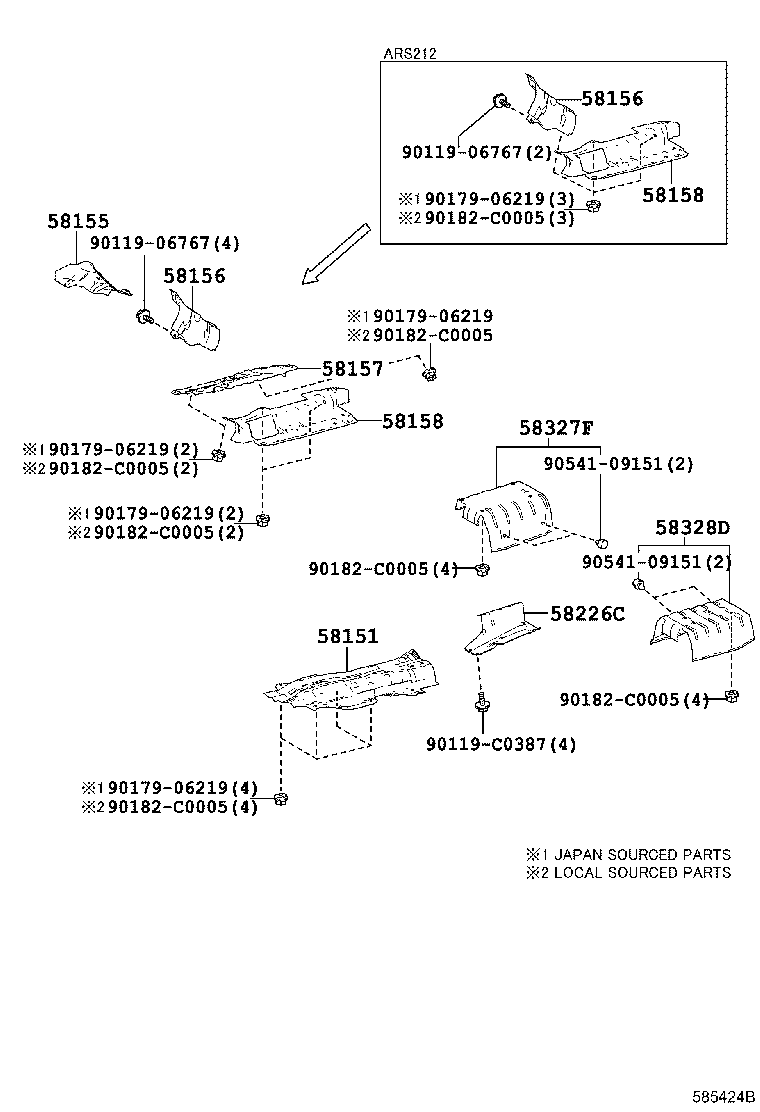

Exploded illustration 585424B 58151 — INSULATOR, FRONT FLOOR HEAT, NO.1 (3 parts) 58155 — INSULATOR, FRONT FLOOR HEAT, NO.3 (1 parts) 58156 — INSULATOR, FRONT FLOOR HEAT, NO.4 (4 parts) 58157 — INSULATOR, FRONT FLOOR HEAT, NO.5 (1 parts) 58158 — INSULATOR, FRONT FLOOR HEAT, NO.6 (4 parts) 58226C — PLATE, AIR GUIDE, OUTSIDE RH (3 parts) 58327F — INSULATOR, MAIN MUFFLER HEAT, RH (3 parts) 58328D — INSULATOR, MAIN MUFFLER HEAT, LH (3 parts) 9011906767 — not listed in this catalogue 90182C0005 — not listed in this catalogue 90119C0387 — not listed in this catalogue 9017906219 — not listed in this catalogue 90182C0005 — not listed in this catalogue 90182C0005 — not listed in this catalogue 9017906219 — not listed in this catalogue 90182C0005 — not listed in this catalogue 9017906219 — not listed in this catalogue 90182C0005 — not listed in this catalogue 9017906219 — not listed in this catalogue 90182C0005 — not listed in this catalogue 58156 — INSULATOR, FRONT FLOOR HEAT, NO.4 (4 parts) 58158 — INSULATOR, FRONT FLOOR HEAT, NO.6 (4 parts) 9011906767 — not listed in this catalogue 9017906219 — not listed in this catalogue 90182C0005 — not listed in this catalogue 9054109151 — not listed in this catalogue 9054109151 — not listed in this catalogue
585424B · 10 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
22 parts on this figure
Part number Description Fitment Price
58151 — Insulator, Front Floor Heat, NO.1
58151-0N010 Insulator, Front Floor Heat, NO.1
2015-01 → 2017-12 ended
ARS212,GRS218 —
58151-0N010 Insulator, Front Floor Heat, NO.1
2017-12 → 2019-10 ended
ARS212 B —
58151-0N010 Insulator, Front Floor Heat, NO.1
2017-12 → —
ARS212 P,Q,S,U —
58155 — Insulator, Front Floor Heat, NO.3
58155-0N010 Insulator, Front Floor Heat, NO.3
2015-01 → 2017-12 ended
GRS218 —
58156 — Insulator, Front Floor Heat, NO.4
58156-0N010 Insulator, Front Floor Heat, NO.4
2015-01 → 2017-12 ended
GRS218 —
58156-30160 Insulator, Front Floor Heat, NO.4
2015-08 → 2017-12 ended
ARS212 —
58156-30160 Insulator, Front Floor Heat, NO.4
2017-12 → 2019-10 ended
ARS212 B —
58156-30160 Insulator, Front Floor Heat, NO.4
2017-12 → —
ARS212 P,Q,S,U —
58157 — Insulator, Front Floor Heat, NO.5
58157-0N010 Insulator, Front Floor Heat, NO.5
2015-01 → 2017-12 ended
GRS218 —
58158 — Insulator, Front Floor Heat, NO.6
58158-0N010 Insulator, Front Floor Heat, NO.6
2015-01 → 2017-12 ended
GRS218 —
58158-0N020 Insulator, Front Floor Heat, NO.6
2015-08 → 2017-12 ended
ARS212 —
58158-0N020 Insulator, Front Floor Heat, NO.6
2017-12 → 2019-10 ended
ARS212 B —
58158-0N020 Insulator, Front Floor Heat, NO.6
2017-12 → —
ARS212 P,Q,S,U —
58226C — Plate, Air Guide, Outside RH
58226-0P010 Plate, Air Guide, Outside RH
2015-01 → 2017-12 ended
ARS212,GRS218 —
58226-0P010 Plate, Air Guide, Outside RH
2017-12 → 2019-10 ended
ARS212 B —
58226-0P010 Plate, Air Guide, Outside RH
2017-12 → —
ARS212 P,Q,S,U —
58327F — Insulator, Main Muffler Heat, RH
58327-0N010 Insulator, Main Muffler Heat, RH
2015-01 → 2017-12 ended
ARS212,GRS218 —
58327-0N010 Insulator, Main Muffler Heat, RH
2017-12 → 2019-10 ended
ARS212 B —
58327-0N010 Insulator, Main Muffler Heat, RH
2017-12 → —
ARS212 P,Q,S,U —
58328D — Insulator, Main Muffler Heat, LH
58328-0N010 Insulator, Main Muffler Heat, LH
2015-01 → 2017-12 ended
ARS212,GRS218 —
58328-0N010 Insulator, Main Muffler Heat, LH
2017-12 → 2019-10 ended
ARS212 B —
58328-0N010 Insulator, Main Muffler Heat, LH
2017-12 → —
ARS212 P,Q,S,U —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
