Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

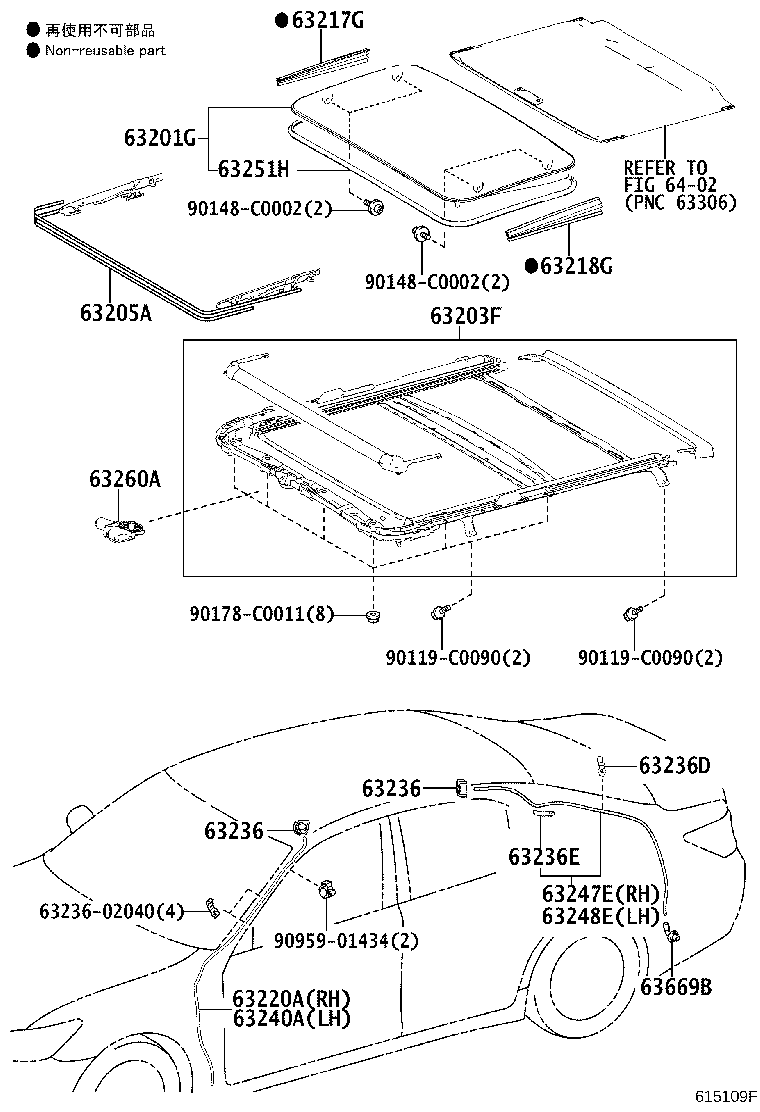

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63201G — Glass Sub-assy, Sliding Roof | ||||
| 63201-0N040 note |
Glass Sub-assy, Sliding Roof
2017-10 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 63201-0N040 |
Glass Sub-assy, Sliding Roof
2015-01 → 2017-10
ended
|
ARS212,GRS218 Q,S,U | — | |
| 63201-0N050 note |
Glass Sub-assy, Sliding Roof
2017-10 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 63201-0N050 |
Glass Sub-assy, Sliding Roof
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 63203F — Housing Sub-assy, Sliding Roof | ||||
| 63203-0N030 |
Housing Sub-assy, Sliding Roof
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 63203-0N030 |
Housing Sub-assy, Sliding Roof
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 63205A — Cable Sub-assy, Sliding Roof Drive | ||||
| 63205-0N020 |
Cable Sub-assy, Sliding Roof Drive
2015-01 → 2017-07
ended
|
ARS212,GRS218 Q,S,U | — | |
| 63205-0N021 |
Cable Sub-assy, Sliding Roof Drive
2017-08 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 63205-0N021 |
Cable Sub-assy, Sliding Roof Drive
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 63217G — Garnish, Sliding Roof Side, RH | ||||
| 63217-02030 |
Garnish, Sliding Roof Side, RH
2015-08 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 63217-0R010 |
Garnish, Sliding Roof Side, RH
2015-01 → 2015-07
ended
|
GRS218 Q,S,U | — | |
| 63217-30100 |
Garnish, Sliding Roof Side, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 63218G — Garnish, Sliding Roof Side, LH | ||||
| 63217-02030 |
Garnish, Sliding Roof Side, LH
2015-08 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 63217-0R010 |
Garnish, Sliding Roof Side, LH
2015-01 → 2015-07
ended
|
GRS218 Q,S,U | — | |
| 63217-30100 |
Garnish, Sliding Roof Side, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 63220A — Hose Assy, Sliding Roof Drain, RH | ||||
| 63220-0N020 |
Hose Assy, Sliding Roof Drain, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 63220-0N020 |
Hose Assy, Sliding Roof Drain, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 63236 — Clamp, Sliding Roof OR Removable Roof Drain Hose | ||||
| 63236-02060 |
Clamp, Sliding Roof OR Removable Roof Drain Hose
2017-09 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 63236-33030 |
Clamp, Sliding Roof OR Removable Roof Drain Hose
2015-01 → 2017-08
ended
|
ARS212,GRS218 Q,S,U | — | |
| 63236-02060 |
Clamp, Sliding Roof OR Removable Roof Drain Hose
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 63236D — Clamp, Sliding Roof Drain Hose | ||||
| 63236-02010 |
Clamp, Sliding Roof Drain Hose
2017-05 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 63236-30010 |
Clamp, Sliding Roof Drain Hose
2015-01 → 2017-04
ended
|
ARS212,GRS218 Q,S,U | — | |
| 63236-02010 |
Clamp, Sliding Roof Drain Hose
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 63236E — Clamp, Sliding Roof Drain Hose | ||||
| 63236-30040 note |
Clamp, Sliding Roof Drain Hose
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 63236-30050 note |
Clamp, Sliding Roof Drain Hose
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 63236-30040 note |
Clamp, Sliding Roof Drain Hose
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 63236-30050 note |
Clamp, Sliding Roof Drain Hose
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 63240A — Hose Assy, Sliding Roof Drain, LH | ||||
| 63220-0N020 |
Hose Assy, Sliding Roof Drain, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 63220-0N020 |
Hose Assy, Sliding Roof Drain, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 63247E — Hose, Sliding Roof Drain, Rear RH | ||||
| 63247-0N020 |
Hose, Sliding Roof Drain, Rear RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 63247-0N020 |
Hose, Sliding Roof Drain, Rear RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 63248E — Hose, Sliding Roof Drain, Rear LH | ||||
| 63248-0N020 |
Hose, Sliding Roof Drain, Rear LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 63248-0N020 |
Hose, Sliding Roof Drain, Rear LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 63251H — Weatherstrip, Sliding Roof | ||||
| 63251-0N030 |
Weatherstrip, Sliding Roof
2017-10 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 63251-30100 |
Weatherstrip, Sliding Roof
2015-01 → 2017-09
ended
|
ARS212,GRS218 Q,S,U | — | |
| 63251-30100 |
Weatherstrip, Sliding Roof
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 63260A — Gear Sub-assy, Sliding Roof Drive | ||||
| 63260-0N030 |
Gear Sub-assy, Sliding Roof Drive
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 63260-0N030 |
Gear Sub-assy, Sliding Roof Drive
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 63669B — Grommet, Sliding Roof Drain | ||||
| 63669-50010 |
Grommet, Sliding Roof Drain
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 63669-06050 note |
Grommet, Sliding Roof Drain
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 63669-50010 note |
Grommet, Sliding Roof Drain
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
