Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

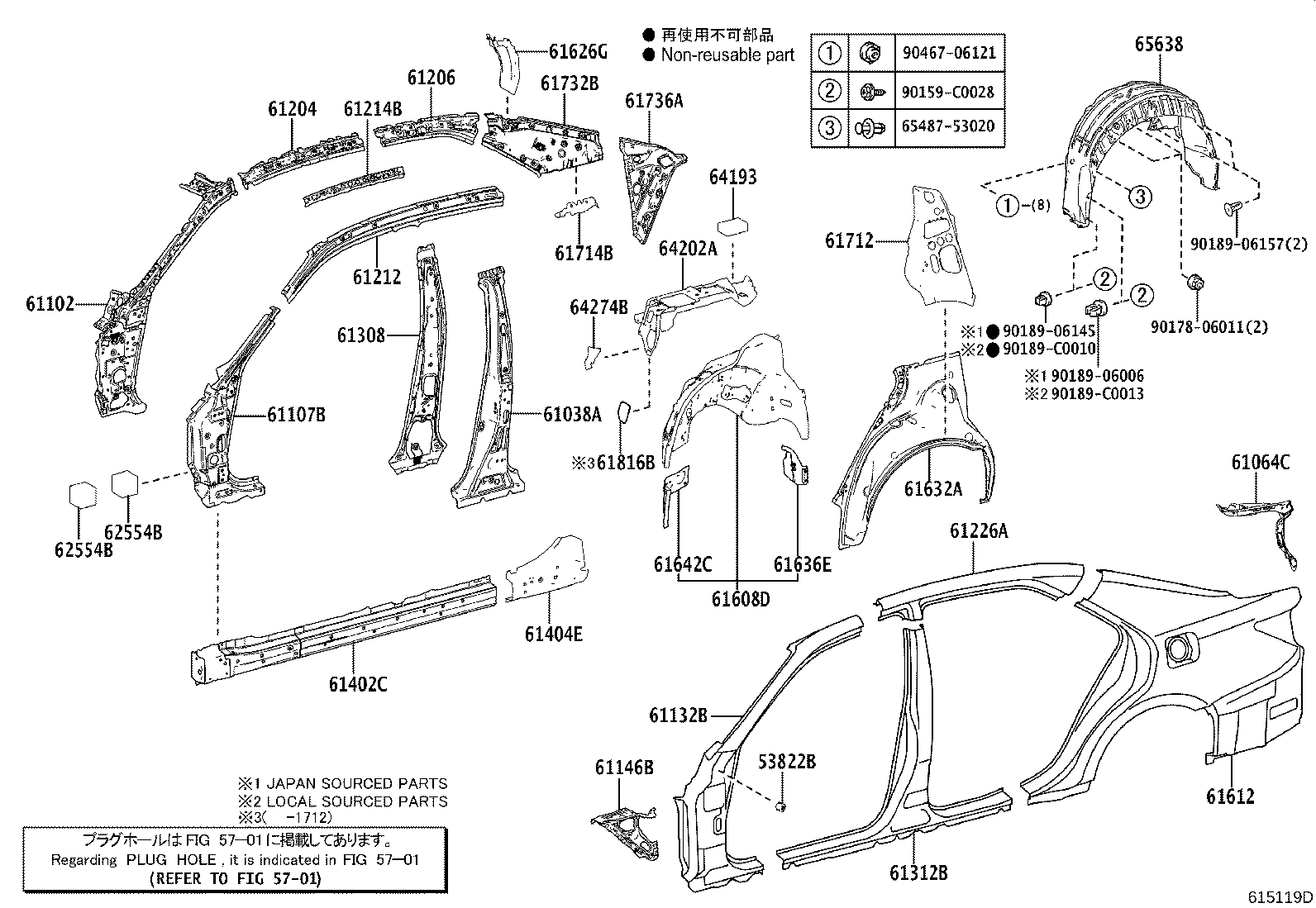

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53822B — Bracket, Front Fender, Rear LH | ||||
| 53821-0N020 |
Bracket, Front Fender, Rear LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 53821-0N020 |
Bracket, Front Fender, Rear LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53821-0N020 |
Bracket, Front Fender, Rear LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 61038A — Reinforcement Sub-assy, Center Body Pillar, LH | ||||
| 61038-0N030 |
Reinforcement Sub-assy, Center Body Pillar, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 61038-0N030 |
Reinforcement Sub-assy, Center Body Pillar, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 61038-0N030 |
Reinforcement Sub-assy, Center Body Pillar, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 61064C — Trough Sub-assy, Luggage Door Opening, Front LH | ||||
| 61064-0N040 |
Trough Sub-assy, Luggage Door Opening, Front LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 61064-0N040 |
Trough Sub-assy, Luggage Door Opening, Front LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 61064-0N040 |
Trough Sub-assy, Luggage Door Opening, Front LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 61102 — Panel Sub-assy, Cowl Side, LH | ||||
| 61102-0N020 |
Panel Sub-assy, Cowl Side, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 61102-0N020 |
Panel Sub-assy, Cowl Side, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 61102-0N020 |
Panel Sub-assy, Cowl Side, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 61107B — Reinforce Sub-assy, Front Body Pillar, Upper LH | ||||
| 61107-0N904 |
Reinforce Sub-assy, Front Body Pillar, Upper LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 61107-0N904 |
Reinforce Sub-assy, Front Body Pillar, Upper LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 61107-0N904 |
Reinforce Sub-assy, Front Body Pillar, Upper LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 61132B — Pillar, Front Body, Outer LH | ||||
| 61132-0N040 |
Pillar, Front Body, Outer LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 61132-0N040 |
Pillar, Front Body, Outer LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 61132-0N040 |
Pillar, Front Body, Outer LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 61146B — Gusset, Front Body Pillar, Lower LH | ||||
| 61016-0N030 |
Gusset, Front Body Pillar, Lower LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 61016-0N030 |
Gusset, Front Body Pillar, Lower LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 61016-0N030 |
Gusset, Front Body Pillar, Lower LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 61204 — Rail Sub-assy, Roof Side, Inner LH | ||||
| 61204-0N020 |
Rail Sub-assy, Roof Side, Inner LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 61204-0N020 |
Rail Sub-assy, Roof Side, Inner LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 61204-0N020 |
Rail Sub-assy, Roof Side, Inner LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 61206 — Rail Sub-assy, Roof Side, Inner Rear LH | ||||
| 61206-0N020 |
Rail Sub-assy, Roof Side, Inner Rear LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 61206-0N020 |
Rail Sub-assy, Roof Side, Inner Rear LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 61206-0N020 |
Rail Sub-assy, Roof Side, Inner Rear LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 61212 — Rail, Roof Side, Outer LH | ||||
| 61212-0N020 |
Rail, Roof Side, Outer LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 61212-0N020 |
Rail, Roof Side, Outer LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 61212-0N020 |
Rail, Roof Side, Outer LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 61214B — Rail, Roof Side, Outer NO.2 LH | ||||
| 61214-0N020 |
Rail, Roof Side, Outer NO.2 LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 61214-0N020 |
Rail, Roof Side, Outer NO.2 LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 61214-0N020 |
Rail, Roof Side, Outer NO.2 LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 61226A — Rail, Roof Side Outer Upper NO.1, LH | ||||
| 61226-0N040 |
Rail, Roof Side Outer Upper NO.1, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 61226-0N040 |
Rail, Roof Side Outer Upper NO.1, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 61226-0N040 |
Rail, Roof Side Outer Upper NO.1, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 61308 — Pillar Sub-assy, Center Body, Inner LH | ||||
| 61308-0N020 |
Pillar Sub-assy, Center Body, Inner LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 61308-0N020 |
Pillar Sub-assy, Center Body, Inner LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 61308-0N020 |
Pillar Sub-assy, Center Body, Inner LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 61312B — Pillar, Center Body, Outer LH | ||||
| 61312-0N040 |
Pillar, Center Body, Outer LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 61312-0N040 |
Pillar, Center Body, Outer LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 61312-0N040 |
Pillar, Center Body, Outer LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 61402C — Panel Sub-assy, Rocker, Outer LH | ||||
| 61402-0N902 |
Panel Sub-assy, Rocker, Outer LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 61402-0N902 |
Panel Sub-assy, Rocker, Outer LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 61402-0N902 |
Panel Sub-assy, Rocker, Outer LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 61404E — Reinforce Sub-assy, Rocker, Outer LH | ||||
| 61404-0N020 |
Reinforce Sub-assy, Rocker, Outer LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 61404-0N020 |
Reinforce Sub-assy, Rocker, Outer LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 61404-0N020 |
Reinforce Sub-assy, Rocker, Outer LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 61608D — Panel, Quarter Wheel House, Inner LH | ||||
| 61608-0N040 |
Panel, Quarter Wheel House, Inner LH
2015-01 → 2017-05
ended
|
ARS212,GRS218 | — | |
| 61608-0N041 |
Panel, Quarter Wheel House, Inner LH
2017-06 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 61608-0N041 |
Panel, Quarter Wheel House, Inner LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 61608-0N041 |
Panel, Quarter Wheel House, Inner LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 61612 — Panel, Quarter, LH | ||||
| 61612-0N040 |
Panel, Quarter, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 61612-0N040 |
Panel, Quarter, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 61612-0N040 |
Panel, Quarter, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 61626G — Extension, Quarter Panel, Rear LH | ||||
| 61626-0N030 |
Extension, Quarter Panel, Rear LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 61626-0N030 |
Extension, Quarter Panel, Rear LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 61626-0N030 |
Extension, Quarter Panel, Rear LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 61632A — Panel, Quarter Wheel House, Outer LH | ||||
| 61632-0N040 |
Panel, Quarter Wheel House, Outer LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 61632-0N040 |
Panel, Quarter Wheel House, Outer LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 61632-0N040 |
Panel, Quarter Wheel House, Outer LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 61636E — Extension, Quarter Wheel House, LH | ||||
| 61636-0N010 |
Extension, Quarter Wheel House, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 61636-0N010 |
Extension, Quarter Wheel House, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 61636-0N010 |
Extension, Quarter Wheel House, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 61642C — Gusset, Quarter Wheel House, Front LH | ||||
| 61642-0N010 |
Gusset, Quarter Wheel House, Front LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 61642-0N010 |
Gusset, Quarter Wheel House, Front LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 61642-0N010 |
Gusset, Quarter Wheel House, Front LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 61712 — Panel, Roof Side, Outer LH | ||||
| 61712-0N040 |
Panel, Roof Side, Outer LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 61712-0N040 |
Panel, Roof Side, Outer LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 61712-0N040 |
Panel, Roof Side, Outer LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 61714B — Reinforce, Roof Side, Outer LH | ||||
| 61714-0N010 |
Reinforce, Roof Side, Outer LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 61714-0N010 |
Reinforce, Roof Side, Outer LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 61714-0N010 |
Reinforce, Roof Side, Outer LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 61732B — Panel, Roof Side, Inner LH | ||||
| 61732-0N040 |
Panel, Roof Side, Inner LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 61732-0N040 |
Panel, Roof Side, Inner LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 61732-0N040 |
Panel, Roof Side, Inner LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 61736A — Panel, Roof Side, Inner Rear LH | ||||
| 61736-0N040 |
Panel, Roof Side, Inner Rear LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 61736-0N040 |
Panel, Roof Side, Inner Rear LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 61736-0N040 |
Panel, Roof Side, Inner Rear LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 61816B — Cover, Roof Side, Inner Upper LH | ||||
| 61816-0N010 |
Cover, Roof Side, Inner Upper LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 62554B — Pad, Pillar, NO.4 | ||||
| 62554-0N040 |
Pad, Pillar, NO.4
2017-07 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 62554-30010 |
Pad, Pillar, NO.4
2015-01 → 2017-06
ended
|
ARS212,GRS218 | — | |
| 62554-0N040 |
Pad, Pillar, NO.4
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 62554-0N040 |
Pad, Pillar, NO.4
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 64193 — Pad, Back Panel Silencer | ||||
| 62151-20160 |
Pad, Back Panel Silencer
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 62151-20160 |
Pad, Back Panel Silencer
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 62151-20160 |
Pad, Back Panel Silencer
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 64202A — Strainer Sub-assy, Package Tray TO Floor, LH | ||||
| 64202-0N040 |
Strainer Sub-assy, Package Tray TO Floor, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 64202-0N041 |
Strainer Sub-assy, Package Tray TO Floor, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 64202-0N041 |
Strainer Sub-assy, Package Tray TO Floor, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 64274B — Pad, Room Partition, NO.2 | ||||
| 64274-0N010 |
Pad, Room Partition, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 64274-0N010 |
Pad, Room Partition, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 64274-0N010 |
Pad, Room Partition, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 65638 — Liner, Rear Wheel House, LH | ||||
| 65638-0N020 |
Liner, Rear Wheel House, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 65638-0N020 |
Liner, Rear Wheel House, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 65638-0N020 |
Liner, Rear Wheel House, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
