Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

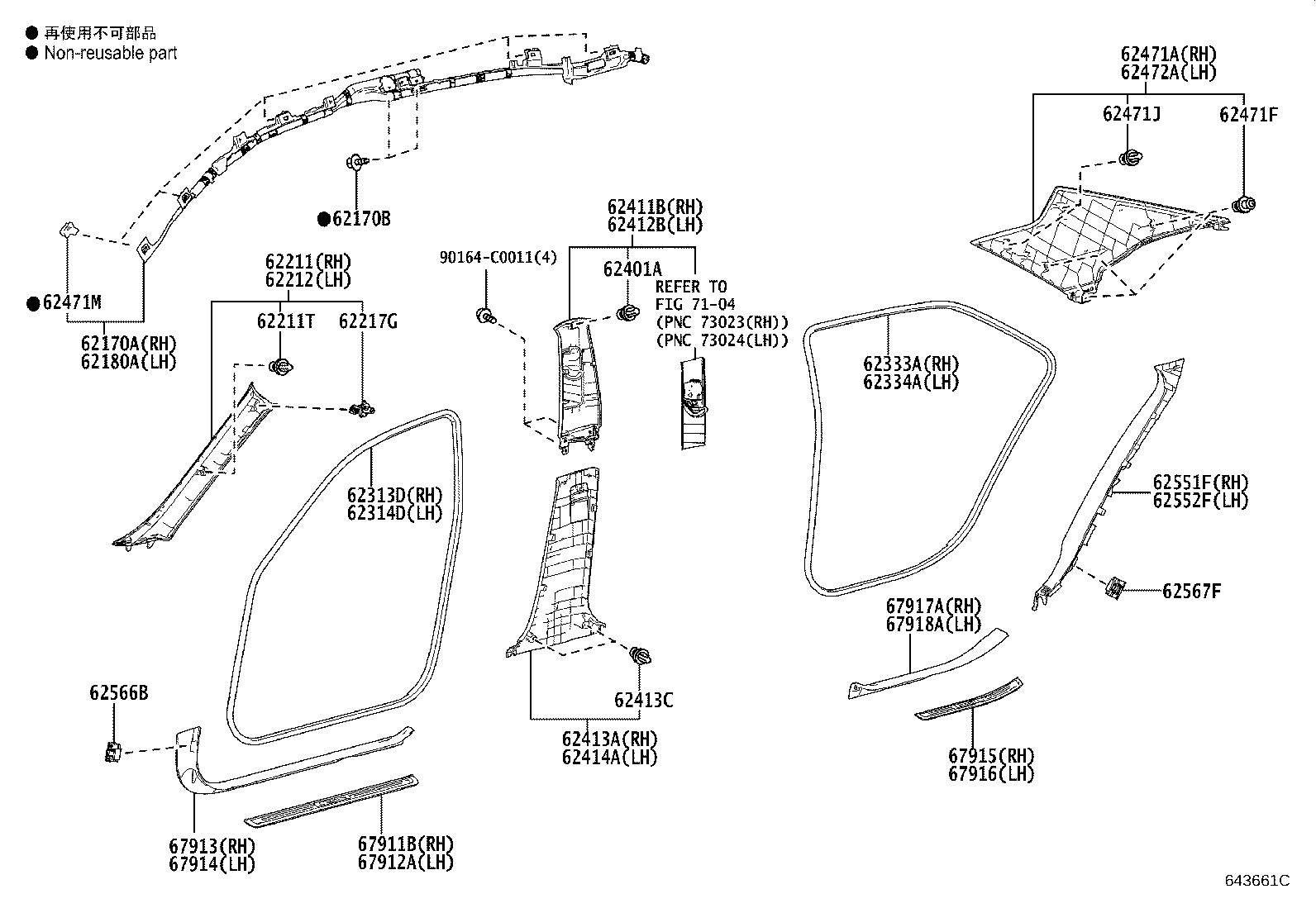

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 62170A — Airbag Assy, Curtain Shield, RH | ||||
| 62170-0N020 |
Airbag Assy, Curtain Shield, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 62170-0N020 |
Airbag Assy, Curtain Shield, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 62170-0N020 |
Airbag Assy, Curtain Shield, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 62170B — Bolt, W/Washer | ||||
| 90119-06869 |
Bolt, W/Washer
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90119-06869 |
Bolt, W/Washer
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 90119-06869 |
Bolt, W/Washer
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 62180A — Airbag Assy, Curtain Shield, LH | ||||
| 62180-0N020 |
Airbag Assy, Curtain Shield, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 62180-0N020 |
Airbag Assy, Curtain Shield, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 62180-0N020 |
Airbag Assy, Curtain Shield, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 62211 — Garnish, Front Pillar, RH | ||||
| 62211-0N040-A0 note |
Garnish, Front Pillar, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 62211-0N040-B0 note |
Garnish, Front Pillar, RH
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 62211-0N040-B0 note |
Garnish, Front Pillar, RH
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 62211-0N040-A0 note |
Garnish, Front Pillar, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 62211-0N040-A0 note |
Garnish, Front Pillar, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 62211-0N040-B0 note |
Garnish, Front Pillar, RH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 62211-0N040-B0 note |
Garnish, Front Pillar, RH
2017-12 → —
|
ARS212 P | — | |
| 62211T — Clip(FOR FRONT PILLAR GARNISH) | ||||
| 90467-10161 |
Clip(FOR FRONT PILLAR GARNISH)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90467-10161 |
Clip(FOR FRONT PILLAR GARNISH)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90467-10161 |
Clip(FOR FRONT PILLAR GARNISH)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 62212 — Garnish, Front Pillar, LH | ||||
| 62212-0N040-A0 note |
Garnish, Front Pillar, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 62212-0N040-B0 note |
Garnish, Front Pillar, LH
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 62212-0N040-B0 note |
Garnish, Front Pillar, LH
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 62212-0N040-A0 note |
Garnish, Front Pillar, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 62212-0N040-A0 note |
Garnish, Front Pillar, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 62212-0N040-B0 note |
Garnish, Front Pillar, LH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 62212-0N040-B0 note |
Garnish, Front Pillar, LH
2017-12 → —
|
ARS212 P | — | |
| 62217G — Clip, Front Pillar Garnish | ||||
| 62217-52120 |
Clip, Front Pillar Garnish
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 62217-52120 |
Clip, Front Pillar Garnish
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 62217-52120 |
Clip, Front Pillar Garnish
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 62313D — Trim, Front Door Opening, RH | ||||
| 62313-0N030-C0 note |
Trim, Front Door Opening, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 62313-0N030-C0 note |
Trim, Front Door Opening, RH
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 62313-0N030-C0 note |
Trim, Front Door Opening, RH
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 62313-0N030-C0 note |
Trim, Front Door Opening, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 62313-0N030-C0 note |
Trim, Front Door Opening, RH
2017-12 → —
|
ARS212 P | — | |
| 62313-0N030-C0 note |
Trim, Front Door Opening, RH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 62314D — Trim, Front Door Opening, LH | ||||
| 62314-0N030-C0 note |
Trim, Front Door Opening, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 62314-0N030-C0 note |
Trim, Front Door Opening, LH
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 62314-0N030-C0 note |
Trim, Front Door Opening, LH
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 62314-0N030-C0 note |
Trim, Front Door Opening, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 62314-0N030-C0 note |
Trim, Front Door Opening, LH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 62314-0N030-C0 note |
Trim, Front Door Opening, LH
2017-12 → —
|
ARS212 P | — | |
| 62333A — Trim, Rear Door Opening, RH | ||||
| 62333-0N030-C0 note |
Trim, Rear Door Opening, RH
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 62333-0N030-C0 note |
Trim, Rear Door Opening, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 62333-0N030-C0 note |
Trim, Rear Door Opening, RH
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 62333-0N030-C0 note |
Trim, Rear Door Opening, RH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 62333-0N030-C0 note |
Trim, Rear Door Opening, RH
2017-12 → —
|
ARS212 P | — | |
| 62333-0N030-C0 note |
Trim, Rear Door Opening, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 62334A — Trim, Rear Door Opening, LH | ||||
| 62334-0N030-C0 note |
Trim, Rear Door Opening, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 62334-0N030-C0 note |
Trim, Rear Door Opening, LH
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 62334-0N030-C0 note |
Trim, Rear Door Opening, LH
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 62334-0N030-C0 note |
Trim, Rear Door Opening, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 62334-0N030-C0 note |
Trim, Rear Door Opening, LH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 62334-0N030-C0 note |
Trim, Rear Door Opening, LH
2017-12 → —
|
ARS212 P | — | |
| 62401A — Clip (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 90467-10167 |
Clip (FOR CENTER PILLAR GARNISH PANEL, UPPER)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90467-10167 |
Clip (FOR CENTER PILLAR GARNISH PANEL, UPPER)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90467-10167 |
Clip (FOR CENTER PILLAR GARNISH PANEL, UPPER)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 62411B — Garnish, Center Pillar, Upper RH | ||||
| 62411-0N030-A0 note |
Garnish, Center Pillar, Upper RH
2015-01 → 2015-11
ended
|
ARS212,GRS218 | — | |
| 62411-0N030-B0 note |
Garnish, Center Pillar, Upper RH
2015-01 → 2015-11
ended
|
ARS212,GRS218 Q,S,U | — | |
| 62411-0N031-A0 note |
Garnish, Center Pillar, Upper RH
2015-12 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 62411-0N031-B0 note |
Garnish, Center Pillar, Upper RH
2015-12 → 2017-12
ended
|
ARS212 S | — | |
| 62411-0N031-B0 note |
Garnish, Center Pillar, Upper RH
2015-12 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 62411-0N031-A0 note |
Garnish, Center Pillar, Upper RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 62411-0N031-A0 note |
Garnish, Center Pillar, Upper RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 62411-0N031-B0 note |
Garnish, Center Pillar, Upper RH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 62411-0N031-B0 note |
Garnish, Center Pillar, Upper RH
2017-12 → —
|
ARS212 P | — | |
| 62412B — Garnish, Center Pillar, Upper LH | ||||
| 62412-0N030-A0 note |
Garnish, Center Pillar, Upper LH
2015-01 → 2015-11
ended
|
ARS212,GRS218 | — | |
| 62412-0N030-B0 note |
Garnish, Center Pillar, Upper LH
2015-01 → 2015-11
ended
|
ARS212,GRS218 Q,S,U | — | |
| 62412-0N031-A0 note |
Garnish, Center Pillar, Upper LH
2015-12 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 62412-0N031-B0 note |
Garnish, Center Pillar, Upper LH
2015-12 → 2017-12
ended
|
ARS212 S | — | |
| 62412-0N031-B0 note |
Garnish, Center Pillar, Upper LH
2015-12 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 62412-0N031-A0 note |
Garnish, Center Pillar, Upper LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 62412-0N031-A0 note |
Garnish, Center Pillar, Upper LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 62412-0N031-B0 note |
Garnish, Center Pillar, Upper LH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 62412-0N031-B0 note |
Garnish, Center Pillar, Upper LH
2017-12 → —
|
ARS212 P | — | |
| 62413A — Garnish, Center Pillar, Lower RH | ||||
| 62413-0N030-C0 note |
Garnish, Center Pillar, Lower RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 62413-0N030-C0 note |
Garnish, Center Pillar, Lower RH
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 62413-0N030-C0 note |
Garnish, Center Pillar, Lower RH
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 62413-0N030-C0 note |
Garnish, Center Pillar, Lower RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 62413-0N030-C0 note |
Garnish, Center Pillar, Lower RH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 62413-0N030-C0 note |
Garnish, Center Pillar, Lower RH
2017-12 → —
|
ARS212 P | — | |
| 62413C — Clip (FOR CENTER LOWER GARNISH) | ||||
| 90467-C0036 |
Clip (FOR CENTER LOWER GARNISH)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90467-C0036 |
Clip (FOR CENTER LOWER GARNISH)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90467-C0036 |
Clip (FOR CENTER LOWER GARNISH)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 62414A — Garnish, Center Pillar, Lower LH | ||||
| 62414-0N030-C0 note |
Garnish, Center Pillar, Lower LH
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 62414-0N030-C0 note |
Garnish, Center Pillar, Lower LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 62414-0N030-C0 note |
Garnish, Center Pillar, Lower LH
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 62414-0N030-C0 note |
Garnish, Center Pillar, Lower LH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 62414-0N030-C0 note |
Garnish, Center Pillar, Lower LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 62414-0N030-C0 note |
Garnish, Center Pillar, Lower LH
2017-12 → —
|
ARS212 P | — | |
| 62471A — Garnish, Roof Side, Inner RH | ||||
| 62471-0N060-A0 note |
Garnish, Roof Side, Inner RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 62471-0N060-B0 note |
Garnish, Roof Side, Inner RH
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 62471-0N060-B0 note |
Garnish, Roof Side, Inner RH
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 62471-0N060-A0 note |
Garnish, Roof Side, Inner RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 62471-0N060-A0 note |
Garnish, Roof Side, Inner RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 62471-0N060-B0 note |
Garnish, Roof Side, Inner RH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 62471-0N060-B0 note |
Garnish, Roof Side, Inner RH
2017-12 → —
|
ARS212 P | — | |
| 62471F — Clip (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90467-A0033 |
Clip (FOR ROOF SIDE, INNER UPPER GARNISH)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90467-A0033 |
Clip (FOR ROOF SIDE, INNER UPPER GARNISH)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90467-A0033 |
Clip (FOR ROOF SIDE, INNER UPPER GARNISH)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 62471J — Clip (FOR ROOF SIDE GARNISH) | ||||
| 90467-10188 |
Clip (FOR ROOF SIDE GARNISH)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90467-10188 |
Clip (FOR ROOF SIDE GARNISH)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90467-10188 |
Clip (FOR ROOF SIDE GARNISH)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 62471M — Clip | ||||
| 90467-18017 |
Clip
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90467-18017 |
Clip
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90467-18017 |
Clip
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 62472A — Garnish, Roof Side, Inner LH | ||||
| 62472-0N060-A0 note |
Garnish, Roof Side, Inner LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 62472-0N060-B0 note |
Garnish, Roof Side, Inner LH
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 62472-0N060-B0 note |
Garnish, Roof Side, Inner LH
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 62472-0N060-A0 note |
Garnish, Roof Side, Inner LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 62472-0N060-A0 note |
Garnish, Roof Side, Inner LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 62472-0N060-B0 note |
Garnish, Roof Side, Inner LH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 62472-0N060-B0 note |
Garnish, Roof Side, Inner LH
2017-12 → —
|
ARS212 P | — | |
| 62551F — Garnish, Rear Seat Side, RH | ||||
| 62551-0N080-C0 note |
Garnish, Rear Seat Side, RH
2015-01 → 2015-11
ended
|
ARS212,GRS218 B | — | |
| 62551-0N080-C0 note |
Garnish, Rear Seat Side, RH
2015-01 → 2015-11
ended
|
ARS212,GRS218 Q,S,U | — | |
| 62551-0N081-C0 note |
Garnish, Rear Seat Side, RH
2015-12 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 62551-0N081-C0 note |
Garnish, Rear Seat Side, RH
2015-12 → 2017-12
ended
|
ARS212 S | — | |
| 62551-0N081-C0 note |
Garnish, Rear Seat Side, RH
2015-12 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 62551-0N081-C0 note |
Garnish, Rear Seat Side, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 62551-0N081-C0 note |
Garnish, Rear Seat Side, RH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 62551-0N081-C0 note |
Garnish, Rear Seat Side, RH
2017-12 → —
|
ARS212 P | — | |
| 62552F — Garnish, Rear Seat Side, LH | ||||
| 62552-0N040-C0 note |
Garnish, Rear Seat Side, LH
2015-01 → 2015-11
ended
|
ARS212,GRS218 B | — | |
| 62552-0N040-C0 note |
Garnish, Rear Seat Side, LH
2015-01 → 2015-11
ended
|
ARS212,GRS218 Q,S,U | — | |
| 62552-0N041-C0 note |
Garnish, Rear Seat Side, LH
2015-12 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 62552-0N041-C0 note |
Garnish, Rear Seat Side, LH
2015-12 → 2017-12
ended
|
ARS212 S | — | |
| 62552-0N041-C0 note |
Garnish, Rear Seat Side, LH
2015-12 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 62552-0N041-C0 note |
Garnish, Rear Seat Side, LH
2017-12 → —
|
ARS212 P | — | |
| 62552-0N041-C0 note |
Garnish, Rear Seat Side, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 62552-0N041-C0 note |
Garnish, Rear Seat Side, LH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 62566B — Clamp, Rocker Panel Inner Protecter, NO.1 | ||||
| 62566-30010 |
Clamp, Rocker Panel Inner Protecter, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 62566-30010 |
Clamp, Rocker Panel Inner Protecter, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 62566-30010 |
Clamp, Rocker Panel Inner Protecter, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 62567F — Clamp, Rocker Panel Inner Protector, NO.2 | ||||
| 62566-30010 |
Clamp, Rocker Panel Inner Protector, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 62566-30010 |
Clamp, Rocker Panel Inner Protector, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 62566-30010 |
Clamp, Rocker Panel Inner Protector, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 67911B — Plate, Front Door Scuff, Outside, RH | ||||
| 67910-0N040 |
Plate, Front Door Scuff, Outside, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 67910-0N040 |
Plate, Front Door Scuff, Outside, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 67910-0N040 |
Plate, Front Door Scuff, Outside, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 67912A — Plate, Front Door Scuff, Outside LH | ||||
| 67920-0N040 |
Plate, Front Door Scuff, Outside LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 67920-0N040 |
Plate, Front Door Scuff, Outside LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 67920-0N040 |
Plate, Front Door Scuff, Outside LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 67913 — Plate, Front Door Scuff, RH | ||||
| 67913-0N030-C0 note |
Plate, Front Door Scuff, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 67913-0N030-C0 note |
Plate, Front Door Scuff, RH
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 67913-0N030-C0 note |
Plate, Front Door Scuff, RH
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 67913-0N030-C0 note |
Plate, Front Door Scuff, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 67913-0N030-C0 note |
Plate, Front Door Scuff, RH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 67913-0N030-C0 note |
Plate, Front Door Scuff, RH
2017-12 → —
|
ARS212 P | — | |
| 67914 — Plate, Front Door Scuff, LH | ||||
| 67914-0N030-C0 note |
Plate, Front Door Scuff, LH
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 67914-0N030-C0 note |
Plate, Front Door Scuff, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 67914-0N030-C0 note |
Plate, Front Door Scuff, LH
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 67914-0N030-C0 note |
Plate, Front Door Scuff, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 67914-0N030-C0 note |
Plate, Front Door Scuff, LH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 67914-0N030-C0 note |
Plate, Front Door Scuff, LH
2017-12 → —
|
ARS212 P | — | |
| 67915 — Plate, Rear Door Scuff, Outside RH | ||||
| 67930-0N040 |
Plate, Rear Door Scuff, Outside RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 67930-0N040 |
Plate, Rear Door Scuff, Outside RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 67930-0N040 |
Plate, Rear Door Scuff, Outside RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 67916 — Plate, Rear Door Scuff, Outside LH | ||||
| 67940-0N040 |
Plate, Rear Door Scuff, Outside LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 67940-0N040 |
Plate, Rear Door Scuff, Outside LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 67940-0N040 |
Plate, Rear Door Scuff, Outside LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 67917A — Plate, Rear Door Scuff, RH | ||||
| 67917-0N030-C0 note |
Plate, Rear Door Scuff, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 67917-0N030-C0 note |
Plate, Rear Door Scuff, RH
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 67917-0N030-C0 note |
Plate, Rear Door Scuff, RH
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 67917-0N030-C0 note |
Plate, Rear Door Scuff, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 67917-0N030-C0 note |
Plate, Rear Door Scuff, RH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 67917-0N030-C0 note |
Plate, Rear Door Scuff, RH
2017-12 → —
|
ARS212 P | — | |
| 67918A — Plate, Rear Door Scuff, LH | ||||
| 67918-0N030-C0 note |
Plate, Rear Door Scuff, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 67918-0N030-C0 note |
Plate, Rear Door Scuff, LH
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 67918-0N030-C0 note |
Plate, Rear Door Scuff, LH
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 67918-0N030-C0 note |
Plate, Rear Door Scuff, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 67918-0N030-C0 note |
Plate, Rear Door Scuff, LH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 67918-0N030-C0 note |
Plate, Rear Door Scuff, LH
2017-12 → —
|
ARS212 P | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
