Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

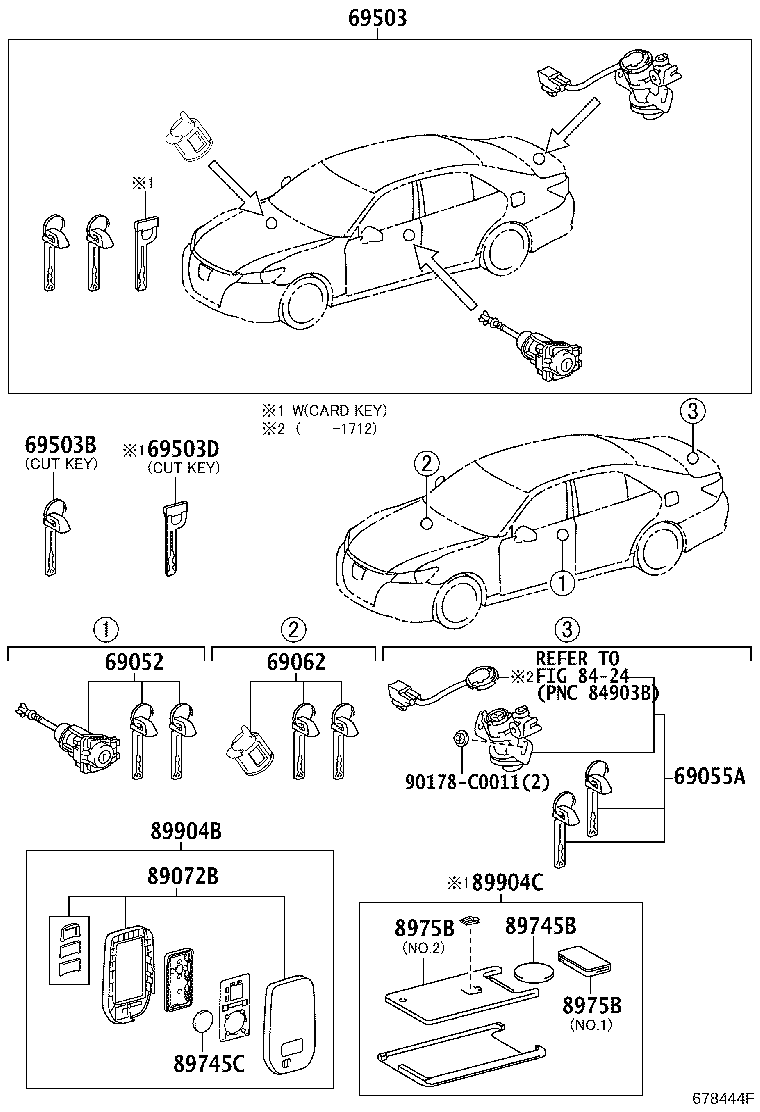

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 69052 — Cylinder & Key Set, Door Lock, LH | ||||
| 69052-0N040 |
Cylinder & Key Set, Door Lock, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 69052-0N040 |
Cylinder & Key Set, Door Lock, LH
2017-12 → —
|
ARS212 | — | |
| 69055A — Cylinder & Key Set, Luggage Compartment Lock | ||||
| 69055-0N050 |
Cylinder & Key Set, Luggage Compartment Lock
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 69055-0N060 |
Cylinder & Key Set, Luggage Compartment Lock
2017-12 → —
|
ARS212 | — | |
| 69062 — Cylinder & Key Set, Glove Compartment Lock | ||||
| 69056-0N030 |
Cylinder & Key Set, Glove Compartment Lock
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 69056-0N030 |
Cylinder & Key Set, Glove Compartment Lock
2017-12 → —
|
ARS212 | — | |
| 69503 — Cylinder Set, Lock | ||||
| 69005-0N090 |
Cylinder Set, Lock
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 69005-0N100 |
Cylinder Set, Lock
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 69005-0N100 note |
Cylinder Set, Lock
2015-01 → 2017-12
ended
|
GRS218 S | — | |
| 69005-0N110 |
Cylinder Set, Lock
2017-12 → —
|
ARS212 P,Q,U | — | |
| 69005-0N120 |
Cylinder Set, Lock
2017-12 → —
|
ARS212 B,S | — | |
| 69503B — Key, Cut | ||||
| 69515-33110 note |
Key, Cut
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 69515-33110 note |
Key, Cut
2017-12 → —
|
ARS212 | — | |
| 69503D — Key, Cut(CARD KEY) | ||||
| 69515-30330 note |
Key, Cut(CARD KEY)
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 69515-30330 note |
Key, Cut(CARD KEY)
2017-12 → —
|
ARS212 P,Q,U | — | |
| 89072B — Housing Set, Door Control Transmitter (FOR SMART KEY) | ||||
| 89072-0N030 |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 89072-0N030 |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2017-12 → —
|
ARS212 | — | |
| 89745B — Battery, Transmitter(CARD KEY) | ||||
| 89745-50030 note |
Battery, Transmitter(CARD KEY)
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 89745-50030 note |
Battery, Transmitter(CARD KEY)
2017-12 → —
|
ARS212 P,Q,U | — | |
| 89745C — Battery, Transmitter | ||||
| 89745-45010 note |
Battery, Transmitter
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 89745-45010 note |
Battery, Transmitter
2017-12 → —
|
ARS212 | — | |
| 8975B — Cover, Transmitter Battery Housing | ||||
| 8975B-30030 note |
Cover, Transmitter Battery Housing
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 8975B-30040 note |
Cover, Transmitter Battery Housing
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 8975B-30030 note |
Cover, Transmitter Battery Housing
2017-12 → —
|
ARS212 P,Q,U | — | |
| 8975B-30040 note |
Cover, Transmitter Battery Housing
2017-12 → —
|
ARS212 P,Q,U | — | |
| 89904B — Transmitter Sub-assy, Electrical Key | ||||
| 89904-0N070 |
Transmitter Sub-assy, Electrical Key
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 89904-0N070 |
Transmitter Sub-assy, Electrical Key
2017-12 → —
|
ARS212 | — | |
| 89904C — Transmitter Sub-assy, Electrical Key(CARD KEY) | ||||
| 89904-30730 |
Transmitter Sub-assy, Electrical Key(CARD KEY)
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 89904-30730 |
Transmitter Sub-assy, Electrical Key(CARD KEY)
2017-12 → —
|
ARS212 P,Q,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
