Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

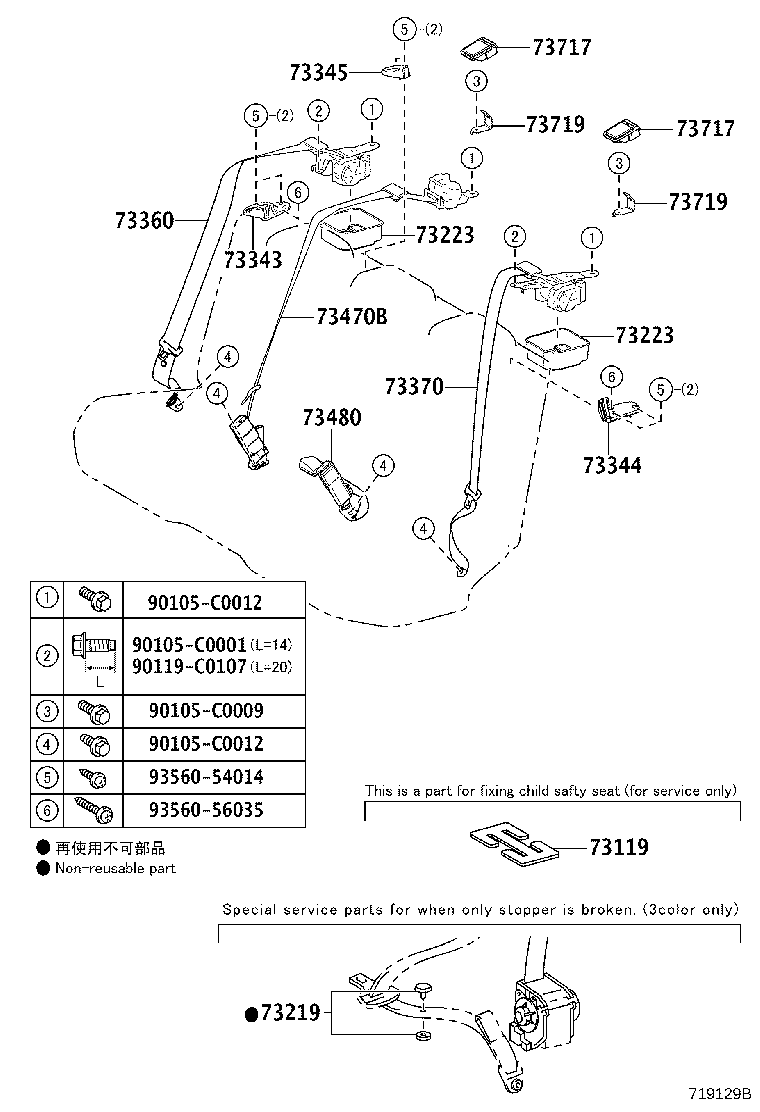

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 73119 — Plate, Seat Belt Webbing Clip | ||||
| 73119-22010 |
Plate, Seat Belt Webbing Clip
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 73119-22010 |
Plate, Seat Belt Webbing Clip
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 73119-22010 |
Plate, Seat Belt Webbing Clip
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 73219 — Stopper, Tongue Plate | ||||
| 73219-33010 note |
Stopper, Tongue Plate
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 73219-33020 note |
Stopper, Tongue Plate
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 73219-33030 note |
Stopper, Tongue Plate
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 73219-33010 note |
Stopper, Tongue Plate
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 73219-33010 note |
Stopper, Tongue Plate
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 73219-33020 note |
Stopper, Tongue Plate
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 73219-33020 note |
Stopper, Tongue Plate
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 73219-33030 note |
Stopper, Tongue Plate
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 73219-33030 note |
Stopper, Tongue Plate
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 73223 — Cover, Seat Belt Retractor | ||||
| 73223-0N070 |
Cover, Seat Belt Retractor
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 73223-0N070 |
Cover, Seat Belt Retractor
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 73223-0N070 |
Cover, Seat Belt Retractor
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 73343 — Guide, Rear Seat Shoulder Belt, RH | ||||
| 73330-0N010-A2 note |
Guide, Rear Seat Shoulder Belt, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 73330-0N010-C0 note |
Guide, Rear Seat Shoulder Belt, RH
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 73330-0N010-C0 note |
Guide, Rear Seat Shoulder Belt, RH
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 73330-0N010-A2 note |
Guide, Rear Seat Shoulder Belt, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 73330-0N010-A2 note |
Guide, Rear Seat Shoulder Belt, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 73330-0N010-C0 note |
Guide, Rear Seat Shoulder Belt, RH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 73330-0N010-C0 note |
Guide, Rear Seat Shoulder Belt, RH
2017-12 → —
|
ARS212 P | — | |
| 73344 — Guide, Rear Seat Shoulder Belt, LH | ||||
| 73340-0N010-A2 note |
Guide, Rear Seat Shoulder Belt, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 73340-0N010-C0 note |
Guide, Rear Seat Shoulder Belt, LH
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 73340-0N010-C0 note |
Guide, Rear Seat Shoulder Belt, LH
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 73340-0N010-A2 note |
Guide, Rear Seat Shoulder Belt, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 73340-0N010-A2 note |
Guide, Rear Seat Shoulder Belt, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 73340-0N010-C0 note |
Guide, Rear Seat Shoulder Belt, LH
2017-12 → —
|
ARS212 P | — | |
| 73340-0N010-C0 note |
Guide, Rear Seat Shoulder Belt, LH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 73345 — Guide, Rear Seat Shoulder Belt, Center | ||||
| 73343-0N010-A2 note |
Guide, Rear Seat Shoulder Belt, Center
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 73343-0N010-C0 note |
Guide, Rear Seat Shoulder Belt, Center
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 73343-0N010-C0 note |
Guide, Rear Seat Shoulder Belt, Center
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 73343-0N010-A2 note |
Guide, Rear Seat Shoulder Belt, Center
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 73343-0N010-A2 note |
Guide, Rear Seat Shoulder Belt, Center
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 73343-0N010-C0 note |
Guide, Rear Seat Shoulder Belt, Center
2017-12 → —
|
ARS212 Q,S,U | — | |
| 73343-0N010-C0 note |
Guide, Rear Seat Shoulder Belt, Center
2017-12 → —
|
ARS212 P | — | |
| 73360 — Belt Assy, Rear Seat 3 Point Type, Outer RH | ||||
| 73360-0N040-A0 note |
Belt Assy, Rear Seat 3 Point Type, Outer RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 73360-0N040-C0 note |
Belt Assy, Rear Seat 3 Point Type, Outer RH
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 73360-0N040-C0 note |
Belt Assy, Rear Seat 3 Point Type, Outer RH
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 73360-0N040-A0 note |
Belt Assy, Rear Seat 3 Point Type, Outer RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 73360-0N040-A0 note |
Belt Assy, Rear Seat 3 Point Type, Outer RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 73360-0N040-C0 note |
Belt Assy, Rear Seat 3 Point Type, Outer RH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 73360-0N040-C0 note |
Belt Assy, Rear Seat 3 Point Type, Outer RH
2017-12 → —
|
ARS212 P | — | |
| 73370 — Belt Assy, Rear Seat 3 Point Type, Outer LH | ||||
| 73370-0N040-A0 note |
Belt Assy, Rear Seat 3 Point Type, Outer LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 73370-0N040-C0 note |
Belt Assy, Rear Seat 3 Point Type, Outer LH
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 73370-0N040-C0 note |
Belt Assy, Rear Seat 3 Point Type, Outer LH
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 73370-0N040-A0 note |
Belt Assy, Rear Seat 3 Point Type, Outer LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 73370-0N040-A0 note |
Belt Assy, Rear Seat 3 Point Type, Outer LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 73370-0N040-C0 note |
Belt Assy, Rear Seat 3 Point Type, Outer LH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 73370-0N040-C0 note |
Belt Assy, Rear Seat 3 Point Type, Outer LH
2017-12 → —
|
ARS212 P | — | |
| 73470B — Belt Assy, Rear Seat Inner W/Center, RH | ||||
| 73470-0N030-A0 note |
Belt Assy, Rear Seat Inner W/Center, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 73470-0N030-C0 note |
Belt Assy, Rear Seat Inner W/Center, RH
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 73470-0N030-C0 note |
Belt Assy, Rear Seat Inner W/Center, RH
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 73470-0N030-A0 note |
Belt Assy, Rear Seat Inner W/Center, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 73470-0N030-A0 note |
Belt Assy, Rear Seat Inner W/Center, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 73470-0N030-C0 note |
Belt Assy, Rear Seat Inner W/Center, RH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 73470-0N030-C0 note |
Belt Assy, Rear Seat Inner W/Center, RH
2017-12 → —
|
ARS212 P | — | |
| 73480 — Belt Assy, Rear Seat Inner W/Center, LH | ||||
| 73480-0N030-A0 note |
Belt Assy, Rear Seat Inner W/Center, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 73480-0N030-C0 note |
Belt Assy, Rear Seat Inner W/Center, LH
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 73480-0N030-C0 note |
Belt Assy, Rear Seat Inner W/Center, LH
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 73480-0N030-A0 note |
Belt Assy, Rear Seat Inner W/Center, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 73480-0N030-A0 note |
Belt Assy, Rear Seat Inner W/Center, LH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 73480-0N030-C0 note |
Belt Assy, Rear Seat Inner W/Center, LH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 73480-0N030-C0 note |
Belt Assy, Rear Seat Inner W/Center, LH
2017-12 → —
|
ARS212 P | — | |
| 73717 — Cover, Child Restraint Seat Tether Anchor | ||||
| 73717-0N010-C0 note |
Cover, Child Restraint Seat Tether Anchor
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 73717-0N010-C0 note |
Cover, Child Restraint Seat Tether Anchor
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 73717-0N010-C0 note |
Cover, Child Restraint Seat Tether Anchor
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 73717-0N010-C0 note |
Cover, Child Restraint Seat Tether Anchor
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 73717-0N010-C0 note |
Cover, Child Restraint Seat Tether Anchor
2017-12 → —
|
ARS212 Q,S,U | — | |
| 73717-0N010-C0 note |
Cover, Child Restraint Seat Tether Anchor
2017-12 → —
|
ARS212 P | — | |
| 73719 — Bracket, Child Restraint Seat Tether Anchor | ||||
| 73719-0N020 |
Bracket, Child Restraint Seat Tether Anchor
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 73719-0N020 |
Bracket, Child Restraint Seat Tether Anchor
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 73719-0N020 |
Bracket, Child Restraint Seat Tether Anchor
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
