Toyota Crown (CHINA)

2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

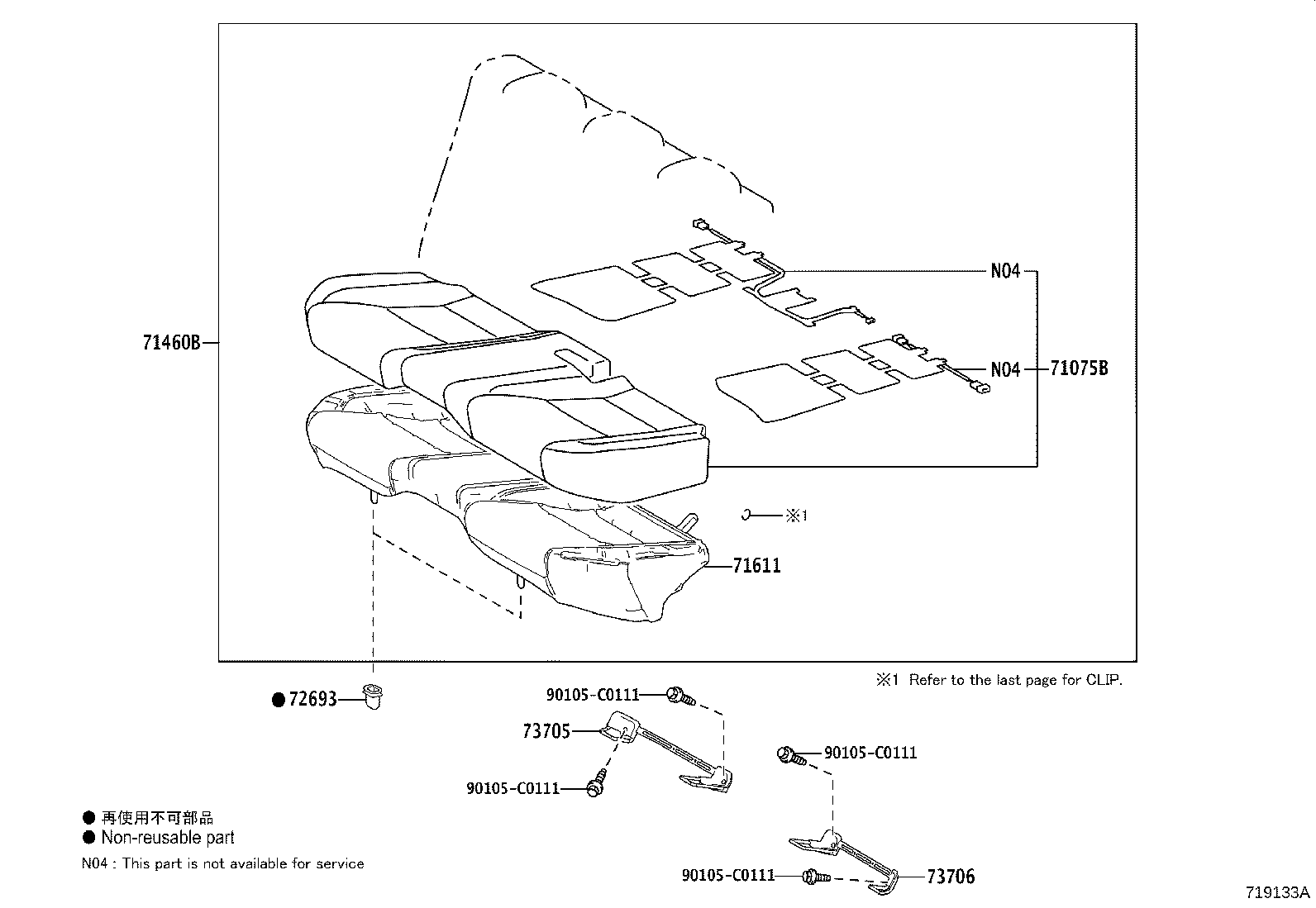

Exploded illustration 719133A 71075B — COVER, REAR SEAT CUSHION (FOR BENCH TYPE) (20 parts) 71460B — CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) (12 parts) 72693 — HOOK, REAR SEAT CUSHION LOCK (3 parts) 71611 — PAD, REAR SEAT CUSHION (2 parts) 73705 — BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH (3 parts) 73706 — BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH (3 parts) 90105C0111 — not listed in this catalogue 90105C0111 — not listed in this catalogue 90105C0111 — not listed in this catalogue 90105C0111 — not listed in this catalogue
719133A · 6 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
43 parts on this figure
Part number Description Fitment Price
71075B — Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075-0N100-A1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-01 → 2017-02 ended
ARS212,GRS218 U —
71075-0N100-C1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-01 → 2017-02 ended
ARS212,GRS218 U —
71075-0N101-A1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-03 → 2017-12 ended
ARS212,GRS218 U —
71075-0N101-C1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-03 → 2017-12 ended
ARS212,GRS218 U —
71075-0N110-A1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-01 → 2017-02 ended
ARS212,GRS218 Q,S —
71075-0N110-C1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-01 → 2017-02 ended
ARS212,GRS218 Q,S —
71075-0N111-A1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-03 → 2017-12 ended
ARS212,GRS218 Q,S —
71075-0N111-C1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-03 → 2017-12 ended
ARS212,GRS218 Q,S —
71075-0N120-A0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-01 → 2017-02 ended
ARS212,GRS218 B —
71075-0N121-A0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-03 → 2017-12 ended
ARS212,GRS218 B —
71075-0N130-D0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-10 → 2017-02 ended
ARS212 S —
71075-0N131-D0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-03 → 2017-12 ended
ARS212 S —
71075-0N101-A1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-12 → 2020-01 ended
ARS212 U —
71075-0N101-C1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-12 → 2020-01 ended
ARS212 U —
71075-0N102-A1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2020-01 → —
ARS212 U —
71075-0N102-C1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2020-01 → —
ARS212 U —
71075-0N111-A1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-12 → —
ARS212 Q,S —
71075-0N111-C1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-12 → —
ARS212 Q,S —
71075-0N111-D0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-12 → —
ARS212 P —
71075-0N121-A0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-12 → 2019-10 ended
ARS212 B —
71460B — Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460-0N100-A0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
2015-01 → 2017-12 ended
ARS212,GRS218 B —
71460-0N110-A1 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
2015-01 → 2017-12 ended
ARS212,GRS218 Q,S —
71460-0N110-C1 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
2015-01 → 2017-12 ended
ARS212,GRS218 Q,S —
71460-0N120-A1 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
2015-01 → 2017-12 ended
ARS212,GRS218 U —
71460-0N120-C1 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
2015-01 → 2017-12 ended
ARS212,GRS218 U —
71460-0N130-D0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
2016-10 → 2017-12 ended
ARS212 S —
71460-0N100-A0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
2017-12 → 2019-10 ended
ARS212 B —
71460-0N110-A1 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
2017-12 → —
ARS212 P,Q,S —
71460-0N110-C1 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
2017-12 → —
ARS212 P,Q,S —
71460-0N110-D0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
2017-12 → —
ARS212 P —
71460-0N120-A1 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
2017-12 → —
ARS212 U —
71460-0N120-C1 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
2017-12 → —
ARS212 U —
71611 — Pad, Rear Seat Cushion
71503-0N060 Pad, Rear Seat Cushion
2015-01 → 2017-12 ended
ARS212,GRS218 —
71503-0N060 Pad, Rear Seat Cushion
2017-12 → —
ARS212 —
72693 — Hook, Rear Seat Cushion Lock
72693-12080 Hook, Rear Seat Cushion Lock
2015-01 → 2017-12 ended
ARS212,GRS218 —
72693-12080 Hook, Rear Seat Cushion Lock
2017-12 → 2019-10 ended
ARS212 B —
72693-12080 Hook, Rear Seat Cushion Lock
2017-12 → —
ARS212 P,Q,S,U —
73705 — Bracket Sub-assy, Child Restraint Seat Anchor, RH
73705-30030 Bracket Sub-assy, Child Restraint Seat Anchor, RH
2015-01 → 2017-12 ended
ARS212,GRS218 —
73705-30030 Bracket Sub-assy, Child Restraint Seat Anchor, RH
2017-12 → 2019-10 ended
ARS212 B —
73705-30030 Bracket Sub-assy, Child Restraint Seat Anchor, RH
2017-12 → —
ARS212 P,Q,S,U —
73706 — Bracket Sub-assy, Child Restraint Seat Anchor, LH
73706-30030 Bracket Sub-assy, Child Restraint Seat Anchor, LH
2015-01 → 2017-12 ended
ARS212,GRS218 —
73706-30030 Bracket Sub-assy, Child Restraint Seat Anchor, LH
2017-12 → 2019-10 ended
ARS212 B —
73706-30030 Bracket Sub-assy, Child Restraint Seat Anchor, LH
2017-12 → —
ARS212 P,Q,S,U —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
