Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

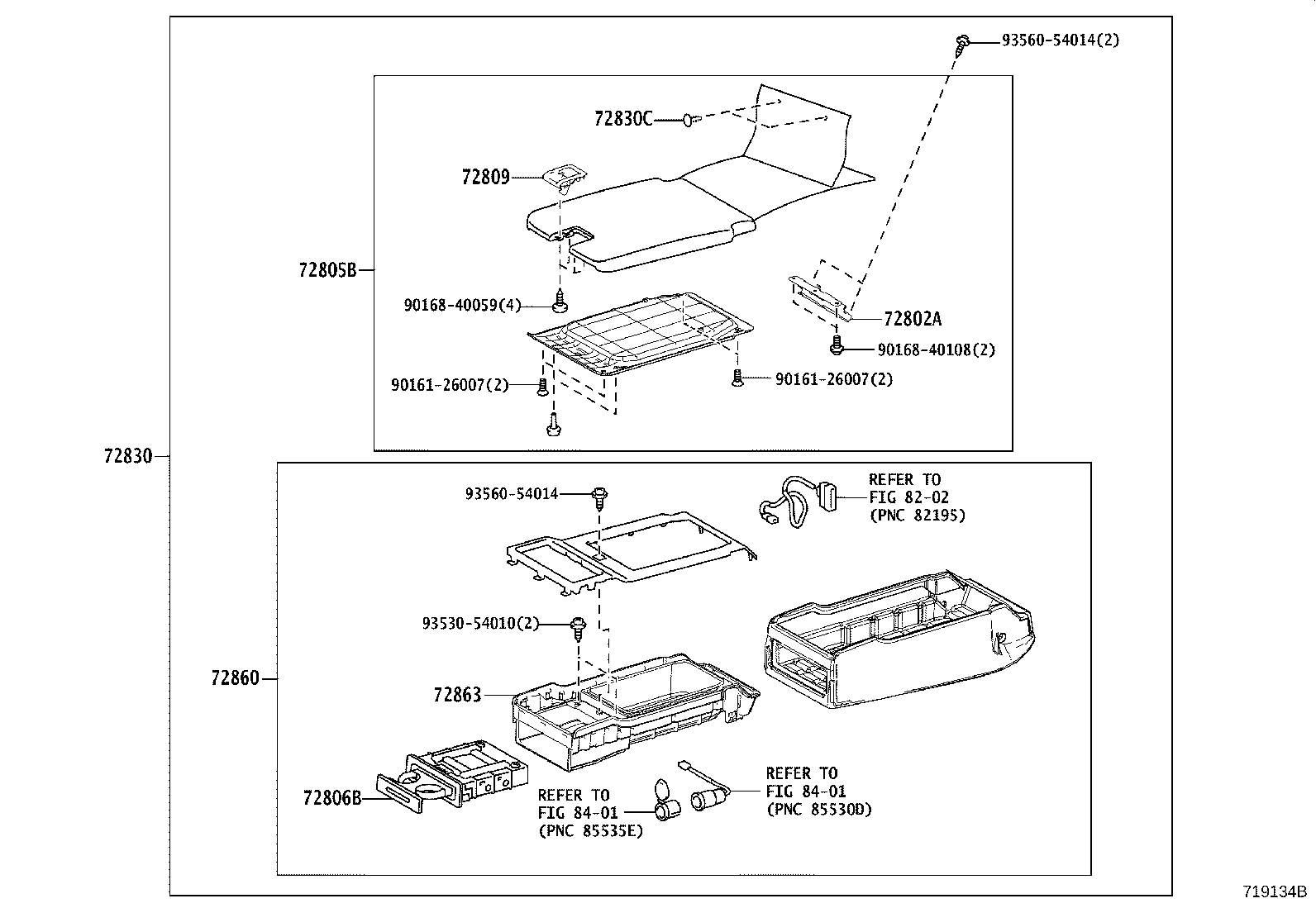

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 72802A — Hinge Sub-assy, Armrest Console | ||||
| 72802-30040 |
Hinge Sub-assy, Armrest Console
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 72802-30040 |
Hinge Sub-assy, Armrest Console
2017-12 → —
|
ARS212 U | — | |
| 72805B — Door Sub-assy, Rear Seat Center Armrest | ||||
| 72805-0N091-A0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 72805-0N091-C0 note |
Door Sub-assy, Rear Seat Center Armrest
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 72805-0N091-A0 note |
Door Sub-assy, Rear Seat Center Armrest
2017-12 → —
|
ARS212 U | — | |
| 72805-0N091-C0 note |
Door Sub-assy, Rear Seat Center Armrest
2017-12 → —
|
ARS212 U | — | |
| 72806B — Holder Sub-assy, Rear Seat Center Armrest Cup | ||||
| 72806-0N030-A0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 72806-0N040-A0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S | — | |
| 72806-0N040-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-01 → 2017-12
ended
|
ARS212 Q;GRS218 Q,S | — | |
| 72806-0N040-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 72806-30090-A2 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 72806-30090-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 72806-0N030-A0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 72806-0N040-A0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2017-12 → —
|
ARS212 Q,S | — | |
| 72806-0N040-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2017-12 → —
|
ARS212 Q,S | — | |
| 72806-0N040-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2017-12 → —
|
ARS212 P | — | |
| 72806-30090-A2 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2017-12 → —
|
ARS212 U | — | |
| 72806-30090-C0 note |
Holder Sub-assy, Rear Seat Center Armrest Cup
2017-12 → —
|
ARS212 U | — | |
| 72809 — Lock Sub-assy, Center Armrest | ||||
| 72809-30030-A5 note |
Lock Sub-assy, Center Armrest
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 72809-30030-C0 note |
Lock Sub-assy, Center Armrest
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 72809-30030-A5 note |
Lock Sub-assy, Center Armrest
2017-12 → —
|
ARS212 U | — | |
| 72809-30030-C0 note |
Lock Sub-assy, Center Armrest
2017-12 → —
|
ARS212 U | — | |
| 72830 — Armrest Assy, Rear Seat, Center | ||||
| 72830-0N130-A1 note |
Armrest Assy, Rear Seat, Center
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 72830-0N140-A2 note |
Armrest Assy, Rear Seat, Center
2015-01 → 2017-02
ended
|
ARS212,GRS218 Q,S | — | |
| 72830-0N140-C2 note |
Armrest Assy, Rear Seat, Center
2015-01 → 2017-02
ended
|
ARS212 Q;GRS218 Q,S | — | |
| 72830-0N140-C2 note |
Armrest Assy, Rear Seat, Center
2015-08 → 2017-02
ended
|
ARS212 S | — | |
| 72830-0N141-A2 note |
Armrest Assy, Rear Seat, Center
2017-03 → 2017-12
ended
|
ARS212,GRS218 Q,S | — | |
| 72830-0N141-C2 note |
Armrest Assy, Rear Seat, Center
2017-03 → 2017-12
ended
|
ARS212 S | — | |
| 72830-0N141-C2 note |
Armrest Assy, Rear Seat, Center
2017-03 → 2017-12
ended
|
ARS212 Q;GRS218 Q,S | — | |
| 72830-0N150-A1 note |
Armrest Assy, Rear Seat, Center
2015-01 → 2017-02
ended
|
ARS212,GRS218 U | — | |
| 72830-0N150-C1 note |
Armrest Assy, Rear Seat, Center
2015-01 → 2017-02
ended
|
ARS212,GRS218 U | — | |
| 72830-0N151-A1 note |
Armrest Assy, Rear Seat, Center
2017-03 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 72830-0N151-C1 note |
Armrest Assy, Rear Seat, Center
2017-03 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 72830-0N130 |
Armrest Assy, Rear Seat, Center
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 72830-0N141-A2 note |
Armrest Assy, Rear Seat, Center
2017-12 → —
|
ARS212 Q,S | — | |
| 72830-0N141-C2 note |
Armrest Assy, Rear Seat, Center
2017-12 → —
|
ARS212 P | — | |
| 72830-0N141-C2 note |
Armrest Assy, Rear Seat, Center
2017-12 → —
|
ARS212 Q,S | — | |
| 72830-0N151-A2 note |
Armrest Assy, Rear Seat, Center
2017-12 → —
|
ARS212 U | — | |
| 72830-0N151-C2 note |
Armrest Assy, Rear Seat, Center
2017-12 → —
|
ARS212 U | — | |
| 72830C — Clip, Rear Seat Center Armrest | ||||
| 90467-05161-A8 note |
Clip, Rear Seat Center Armrest
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 90467-05161-C0 note |
Clip, Rear Seat Center Armrest
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 90467-05161-A8 note |
Clip, Rear Seat Center Armrest
2017-12 → —
|
ARS212 U | — | |
| 90467-05161-C0 note |
Clip, Rear Seat Center Armrest
2017-12 → 2018-08
ended
|
ARS212 U | — | |
| 90467-05161-C9 note |
Clip, Rear Seat Center Armrest
2018-08 → —
|
ARS212 U | — | |
| 72860 — Box Assy, Rear Seat Center Armrest | ||||
| 72860-0N130-A1 note |
Box Assy, Rear Seat Center Armrest
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 72860-0N130-C1 note |
Box Assy, Rear Seat Center Armrest
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 72860-0N130-A2 note |
Box Assy, Rear Seat Center Armrest
2017-12 → —
|
ARS212 U | — | |
| 72860-0N130-C2 note |
Box Assy, Rear Seat Center Armrest
2017-12 → —
|
ARS212 U | — | |
| 72863 — Box, Rear Seat Center Armrest | ||||
| 72863-0N010 |
Box, Rear Seat Center Armrest
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 72863-0N010 |
Box, Rear Seat Center Armrest
2017-12 → —
|
ARS212 U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
