Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

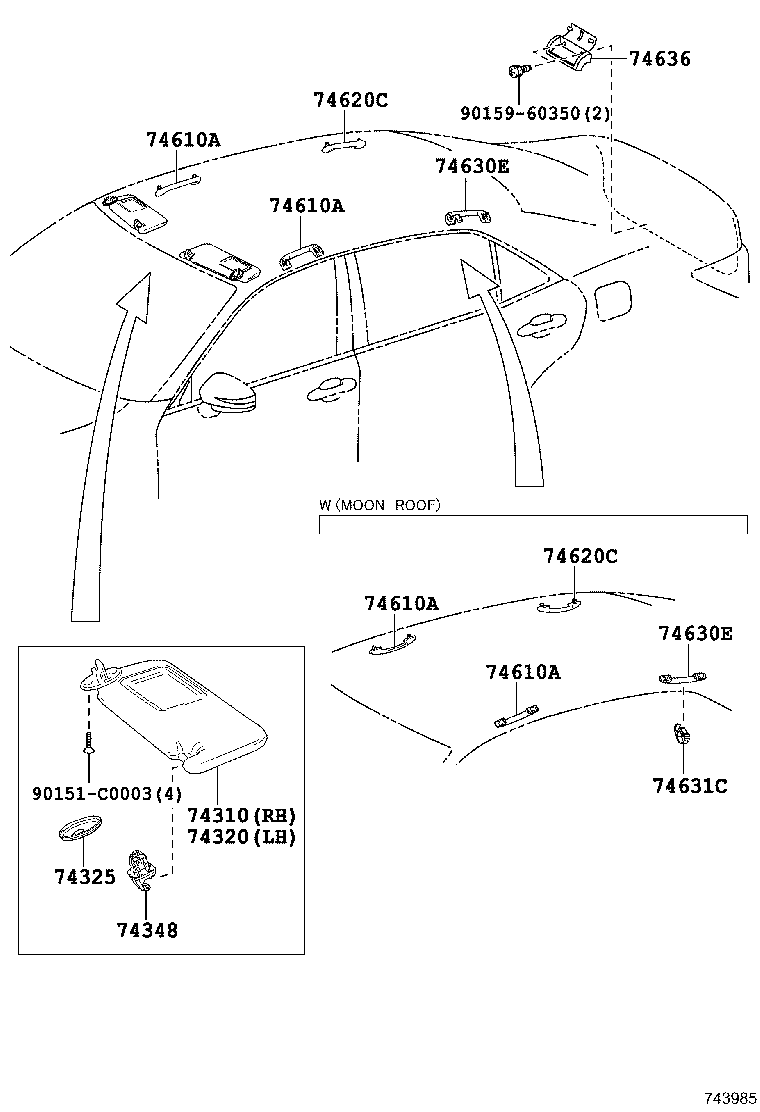

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74310 — Visor Assy, RH | ||||
| 74310-0N021-A2 note |
Visor Assy, RH
2015-01 → 2015-11
ended
|
ARS212,GRS218 | — | |
| 74310-0N021-B0 note |
Visor Assy, RH
2015-01 → 2015-11
ended
|
ARS212,GRS218 Q,S,U | — | |
| 74310-0N022-A2 note |
Visor Assy, RH
2015-12 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 74310-0N022-B0 note |
Visor Assy, RH
2015-12 → 2017-12
ended
|
ARS212 S | — | |
| 74310-0N022-B0 note |
Visor Assy, RH
2015-12 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 74310-0N022-A2 note |
Visor Assy, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 74310-0N022-A2 note |
Visor Assy, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 74310-0N022-B0 note |
Visor Assy, RH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 74310-0N022-B0 note |
Visor Assy, RH
2017-12 → —
|
ARS212 P | — | |
| 74320 — Visor Assy, LH | ||||
| 74320-0N021-A2 note |
Visor Assy, LH
2015-01 → 2015-11
ended
|
ARS212,GRS218 | — | |
| 74320-0N021-B0 note |
Visor Assy, LH
2015-01 → 2015-11
ended
|
ARS212,GRS218 Q,S,U | — | |
| 74320-0N022-A2 note |
Visor Assy, LH
2015-12 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 74320-0N022-B0 note |
Visor Assy, LH
2015-12 → 2017-12
ended
|
ARS212 S | — | |
| 74320-0N022-B0 note |
Visor Assy, LH
2015-12 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 74320-0N022-A2 note |
Visor Assy, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 74320-0N022-A2 note |
Visor Assy, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 74320-0N022-B0 note |
Visor Assy, LH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 74320-0N022-B0 note |
Visor Assy, LH
2017-12 → —
|
ARS212 P | — | |
| 74325 — Cover, Visor Bracket | ||||
| 74317-0N020-A1 note |
Cover, Visor Bracket
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 74317-0N020-B0 note |
Cover, Visor Bracket
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 74317-0N020-B0 note |
Cover, Visor Bracket
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 74317-0N020-A1 note |
Cover, Visor Bracket
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 74317-0N020-A1 note |
Cover, Visor Bracket
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 74317-0N020-B0 note |
Cover, Visor Bracket
2017-12 → —
|
ARS212 Q,S,U | — | |
| 74317-0N020-B0 note |
Cover, Visor Bracket
2017-12 → —
|
ARS212 P | — | |
| 74348 — Holder, Visor | ||||
| 74348-0D120-A1 note |
Holder, Visor
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 74348-0D120-B0 note |
Holder, Visor
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 74348-0D120-B0 note |
Holder, Visor
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 74348-0D120-A1 note |
Holder, Visor
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 74348-0D120-A1 note |
Holder, Visor
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 74348-0D120-B0 note |
Holder, Visor
2017-12 → —
|
ARS212 Q,S,U | — | |
| 74348-0D120-B0 note |
Holder, Visor
2017-12 → —
|
ARS212 P | — | |
| 74610A — Grip Sub-assy, Assist | ||||
| 74610-0N090-A0 note |
Grip Sub-assy, Assist
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 74610-0P030-A0 note |
Grip Sub-assy, Assist
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 74610-0P030-B1 note |
Grip Sub-assy, Assist
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 74610-0P030-B1 note |
Grip Sub-assy, Assist
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 74610-0N090-A0 note |
Grip Sub-assy, Assist
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 74610-0P030-A0 note |
Grip Sub-assy, Assist
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 74610-0P030-B1 note |
Grip Sub-assy, Assist
2017-12 → —
|
ARS212 Q,S,U | — | |
| 74610-0P030-B1 note |
Grip Sub-assy, Assist
2017-12 → —
|
ARS212 P | — | |
| 74620C — Grip Assy, Assist, Rear RH | ||||
| 74610-0N090-A0 note |
Grip Assy, Assist, Rear RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 74610-0P030-A0 note |
Grip Assy, Assist, Rear RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 74610-0P030-B1 note |
Grip Assy, Assist, Rear RH
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 74610-0P030-B1 note |
Grip Assy, Assist, Rear RH
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 74610-0N090-A0 note |
Grip Assy, Assist, Rear RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 74610-0P030-A0 note |
Grip Assy, Assist, Rear RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 74610-0P030-B1 note |
Grip Assy, Assist, Rear RH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 74610-0P030-B1 note |
Grip Assy, Assist, Rear RH
2017-12 → —
|
ARS212 P | — | |
| 74630E — Grip Assy, Assist, Rear LH | ||||
| 74610-0N100-A0 note |
Grip Assy, Assist, Rear LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 74610-0P030-A0 note |
Grip Assy, Assist, Rear LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 74610-0P030-B1 note |
Grip Assy, Assist, Rear LH
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 74610-0P030-B1 note |
Grip Assy, Assist, Rear LH
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 74610-0N100-A0 note |
Grip Assy, Assist, Rear LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 74610-0P030-A0 note |
Grip Assy, Assist, Rear LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 74610-0P030-B1 note |
Grip Assy, Assist, Rear LH
2017-12 → —
|
ARS212 P | — | |
| 74610-0P030-B1 note |
Grip Assy, Assist, Rear LH
2017-12 → —
|
ARS212 Q,S,U | — | |
| 74631C — Hook, Coat | ||||
| 74631-0N020-A1 note |
Hook, Coat
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 74631-0N020-B0 note |
Hook, Coat
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 74631-0N020-B0 note |
Hook, Coat
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 74631-0N020-A1 note |
Hook, Coat
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 74631-0N020-B0 note |
Hook, Coat
2017-12 → —
|
ARS212 Q,S,U | — | |
| 74631-0N020-B0 note |
Hook, Coat
2017-12 → —
|
ARS212 P | — | |
| 74636 — Grip, Back Door Assist | ||||
| 74649-51010-C0 note |
Grip, Back Door Assist
2015-01 → 2017-02
ended
|
ARS212,GRS218 B | — | |
| 74649-51010-C0 note |
Grip, Back Door Assist
2015-08 → 2017-02
ended
|
ARS212 S | — | |
| 74649-51010-C0 note |
Grip, Back Door Assist
2015-01 → 2017-02
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 74649-51010-C3 note |
Grip, Back Door Assist
2017-02 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 74649-51010-C3 note |
Grip, Back Door Assist
2017-02 → 2017-12
ended
|
ARS212 S | — | |
| 74649-51010-C3 note |
Grip, Back Door Assist
2017-02 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 74649-51010-C3 note |
Grip, Back Door Assist
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 74649-51010-C3 note |
Grip, Back Door Assist
2017-12 → —
|
ARS212 Q,S,U | — | |
| 74649-51010-C3 note |
Grip, Back Door Assist
2017-12 → —
|
ARS212 P | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
