Toyota Crown (CHINA)

2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General

Supported model Data version 2020-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

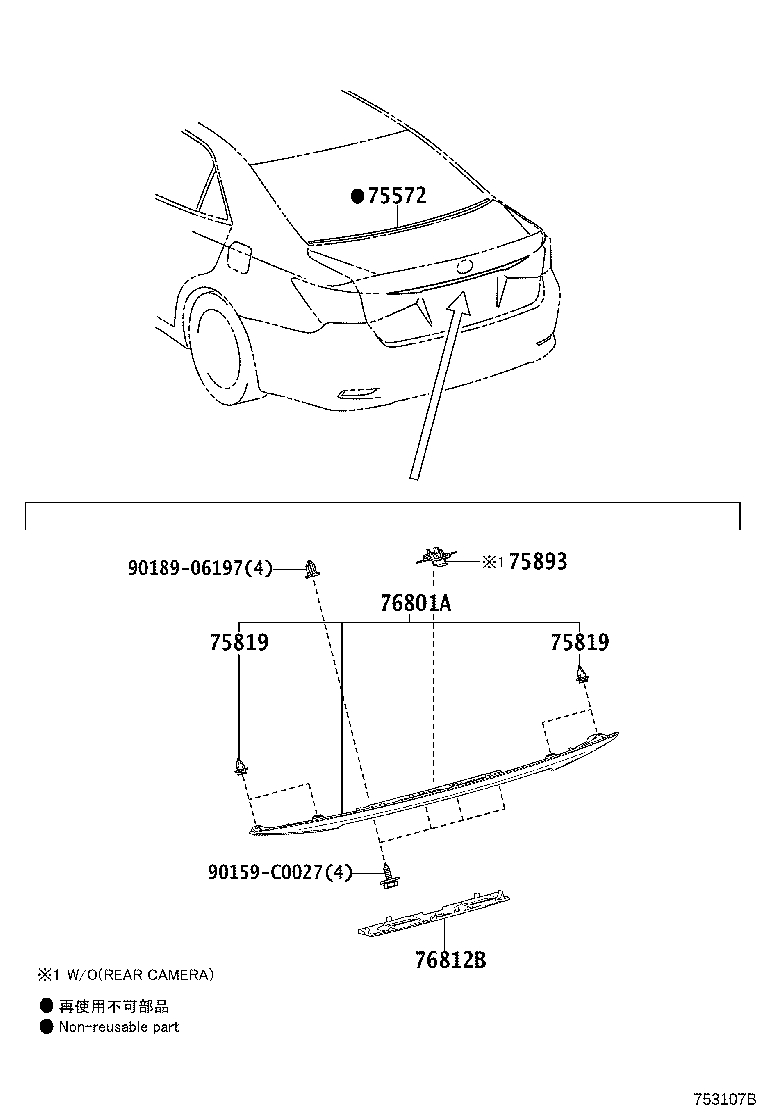

14 parts on this figure

Part number	Description	Fitment	Price
75572 — Moulding, Back Window, Lower
75575-0N020	Moulding, Back Window, Lower 2015-01 → 2017-12 ended	ARS212,GRS218	—
75575-0N020	Moulding, Back Window, Lower 2017-12 → 2019-10 ended	ARS212 B	—
75575-0N020	Moulding, Back Window, Lower 2017-12 → —	ARS212 P,Q,S,U	—
75819 — Clip, Luggage Compartment Door Moulding
75819-68010	Clip, Luggage Compartment Door Moulding 2015-01 → 2017-12 ended	ARS212,GRS218	—
75819-68010	Clip, Luggage Compartment Door Moulding 2017-12 → 2019-10 ended	ARS212 B	—
75819-68010	Clip, Luggage Compartment Door Moulding 2017-12 → —	ARS212 P,Q,S,U	—
75893 — Retainer, Luggage Door Moulding
76827-0N010	Retainer, Luggage Door Moulding 2015-01 → 2017-12 ended	ARS212,GRS218 B	—
76827-0N010	Retainer, Luggage Door Moulding 2017-12 → 2019-10 ended	ARS212 B	—
76801A — Garnish Sub-assy, Luggage Compartment Door, Outside
76801-0N090 note	Garnish Sub-assy, Luggage Compartment Door, Outside 2015-01 → 2017-12 ended	ARS212,GRS218	—
76801-0N090	Garnish Sub-assy, Luggage Compartment Door, Outside 2017-12 → 2019-10 ended	ARS212 B	—
76801-0N090	Garnish Sub-assy, Luggage Compartment Door, Outside 2017-12 → —	ARS212 P,Q,S,U	—
76812B — Garnish, Luggage Compartment Door, Outside NO.2
76812-0N010	Garnish, Luggage Compartment Door, Outside NO.2 2015-01 → 2017-12 ended	ARS212,GRS218	—
76812-0N010	Garnish, Luggage Compartment Door, Outside NO.2 2017-12 → 2019-10 ended	ARS212 B	—
76812-0N010	Garnish, Luggage Compartment Door, Outside NO.2 2017-12 → —	ARS212 P,Q,S,U	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
