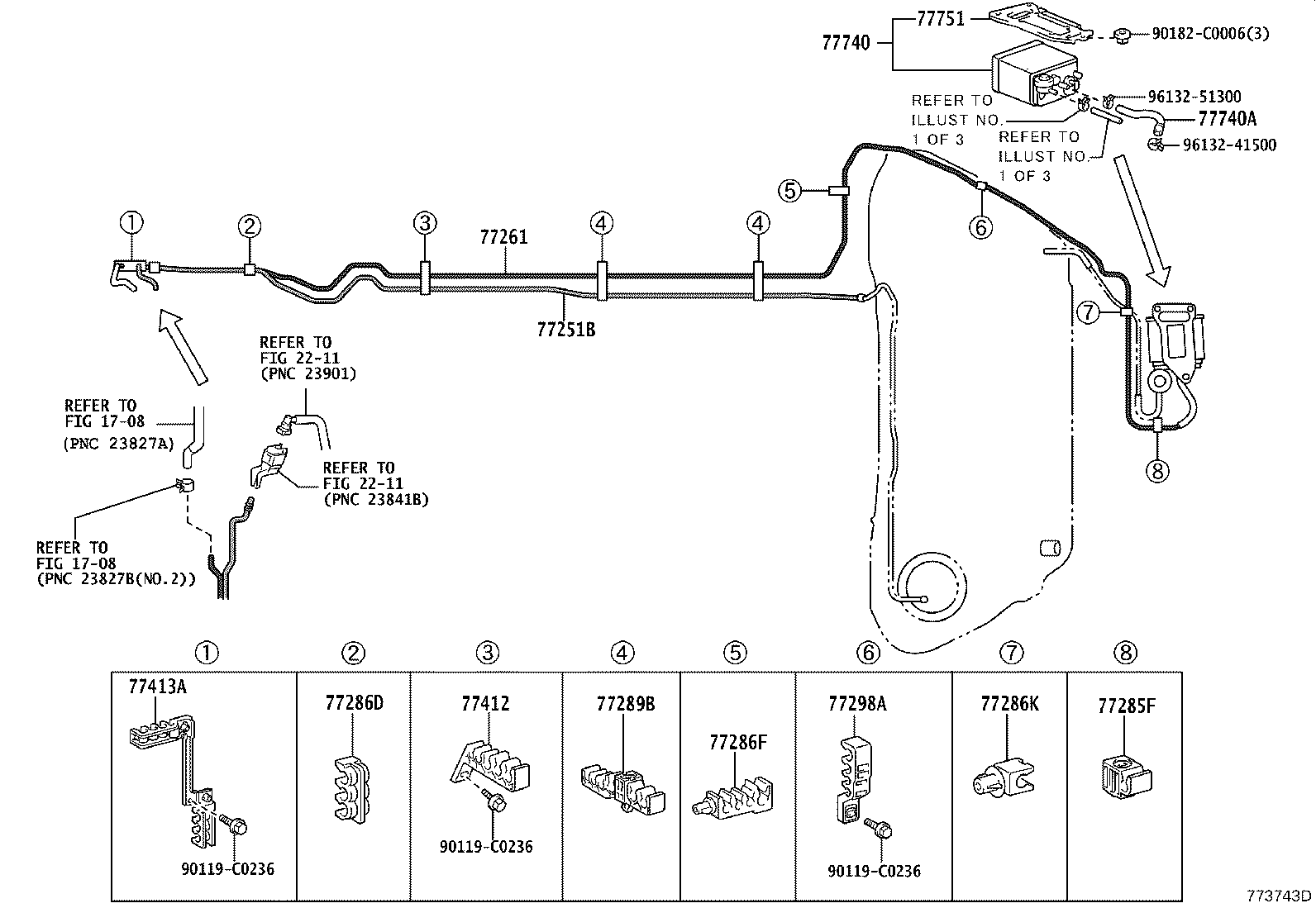

Exploded illustration 773743D 77251B — TUBE, FUEL MAIN (4 parts) 77261 — TUBE SUB-ASSY, FUEL EMISSION (4 parts) 77285F — CLAMP, FUEL TUBE, NO.1 (1 parts) 77286D — CLAMP, FUEL TUBE, NO.2 (4 parts) 77286F — CLAMP, FUEL TUBE, NO.2 (1 parts) 77286K — CLAMP, FUEL TUBE, NO.2 (1 parts) 77289B — CLAMP, FUEL TUBE, NO.3 (4 parts) 77298A — CLAMP, FUEL TUBE, NO.4 (4 parts) 77412 — SUPPORT, FUEL TUBE GROMMET, NO.2 (4 parts) 77413A — SUPPORT, FUEL TUBE GROMMET, NO.3 (4 parts) 90119C0236 — not listed in this catalogue 90119C0236 — not listed in this catalogue 90119C0236 — not listed in this catalogue 2211 — not listed in this catalogue 2211 — not listed in this catalogue 1708 — not listed in this catalogue 1708 — not listed in this catalogue 9613251300 — not listed in this catalogue 9613241500 — not listed in this catalogue 77740A — HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) (4 parts) 90182C0006 — not listed in this catalogue 77740 — CANISTER ASSY, CHARCOAL (4 parts) 77751 — BRACKET, CHARCOAL CANISTER BASE (3 parts)
773743D · 13 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
42 parts on this figure
Part number Description Fitment Price
77251B — Tube, Fuel Main
77251-0N030 Tube, Fuel Main
2015-01 → 2017-12 ended
GRS218 —
77251-0N050 Tube, Fuel Main
2015-08 → 2017-12 ended
ARS212 —
77251-0N050 Tube, Fuel Main
2017-12 → —
ARS212 P,Q,S,U —
77251-0N050 Tube, Fuel Main
2017-12 → 2019-10 ended
ARS212 B —
77261 — Tube Sub-assy, Fuel Emission
77261-0N030 Tube Sub-assy, Fuel Emission
2015-01 → 2017-12 ended
GRS218 —
77261-0N050 Tube Sub-assy, Fuel Emission
2015-08 → 2017-12 ended
ARS212 —
77261-0N050 Tube Sub-assy, Fuel Emission
2017-12 → 2019-10 ended
ARS212 B —
77261-0N050 Tube Sub-assy, Fuel Emission
2017-12 → —
ARS212 P,Q,S,U —
77285F — Clamp, Fuel Tube, NO.1
77285-0N010 Clamp, Fuel Tube, NO.1
2015-01 → 2017-12 ended
GRS218 —
77286D — Clamp, Fuel Tube, NO.2
77286-0N010 Clamp, Fuel Tube, NO.2
2015-01 → 2017-12 ended
GRS218 —
77286-0N040 Clamp, Fuel Tube, NO.2
2015-08 → 2017-12 ended
ARS212 —
77286-0N040 Clamp, Fuel Tube, NO.2
2017-12 → —
ARS212 P,Q,S,U —
77286-0N040 Clamp, Fuel Tube, NO.2
2017-12 → 2019-10 ended
ARS212 B —
77286F — Clamp, Fuel Tube, NO.2
77286-0N020 Clamp, Fuel Tube, NO.2
2015-01 → 2017-12 ended
GRS218 —
77286K — Clamp, Fuel Tube, NO.2
77286-0N030 Clamp, Fuel Tube, NO.2
2015-01 → 2017-12 ended
GRS218 —
77289B — Clamp, Fuel Tube, NO.3
77289-0N010 Clamp, Fuel Tube, NO.3
2015-01 → 2017-12 ended
GRS218 —
77289-0N021 Clamp, Fuel Tube, NO.3
2015-08 → 2017-12 ended
ARS212 —
77289-0N021 Clamp, Fuel Tube, NO.3
2017-12 → 2019-10 ended
ARS212 B —
77289-0N021 Clamp, Fuel Tube, NO.3
2017-12 → —
ARS212 P,Q,S,U —
77298A — Clamp, Fuel Tube, NO.4
77298-0N010 Clamp, Fuel Tube, NO.4
2015-01 → 2017-12 ended
GRS218 —
77298-0N020 Clamp, Fuel Tube, NO.4
2015-08 → 2017-12 ended
ARS212 —
77298-0N020 Clamp, Fuel Tube, NO.4
2017-12 → 2019-10 ended
ARS212 B —
77298-0N020 Clamp, Fuel Tube, NO.4
2017-12 → —
ARS212 P,Q,S,U —
77412 — Support, Fuel Tube Grommet, NO.2
77412-0N010 Support, Fuel Tube Grommet, NO.2
2015-01 → 2017-12 ended
GRS218 —
77412-0N020 Support, Fuel Tube Grommet, NO.2
2015-08 → 2017-12 ended
ARS212 —
77412-0N020 Support, Fuel Tube Grommet, NO.2
2017-12 → 2019-10 ended
ARS212 B —
77412-0N020 Support, Fuel Tube Grommet, NO.2
2017-12 → —
ARS212 P,Q,S,U —
77413A — Support, Fuel Tube Grommet, NO.3
77413-0N011 Support, Fuel Tube Grommet, NO.3
2015-01 → 2017-12 ended
GRS218 —
77413-0N020 Support, Fuel Tube Grommet, NO.3
2015-08 → 2017-12 ended
ARS212 —
77413-0N020 Support, Fuel Tube Grommet, NO.3
2017-12 → 2019-10 ended
ARS212 B —
77413-0N020 Support, Fuel Tube Grommet, NO.3
2017-12 → —
ARS212 P,Q,S,U —
77740 — Canister Assy, Charcoal
77740-0N011 Canister Assy, Charcoal
2015-01 → 2017-12 ended
GRS218 —
77740-0N020 Canister Assy, Charcoal
2015-08 → 2017-12 ended
ARS212 —
77740-0N020 Canister Assy, Charcoal
2017-12 → 2019-10 ended
ARS212 B —
77740-0N020 Canister Assy, Charcoal
2017-12 → —
ARS212 P,Q,S,U —
77740A — Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
23829-0P130 Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
2015-01 → 2017-12 ended
GRS218 —
23829-0V030 Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
2015-08 → 2017-12 ended
ARS212 —
23829-0V030 Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
2017-12 → 2019-10 ended
ARS212 B —
23829-0V030 Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
2017-12 → —
ARS212 P,Q,S,U —
77751 — Bracket, Charcoal Canister Base
77751-0N010 Bracket, Charcoal Canister Base
2015-01 → 2017-12 ended
ARS212,GRS218 —
77751-0N010 Bracket, Charcoal Canister Base
2017-12 → 2019-10 ended
ARS212 B —
77751-0N010 Bracket, Charcoal Canister Base
2017-12 → —
ARS212 P,Q,S,U —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
