Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

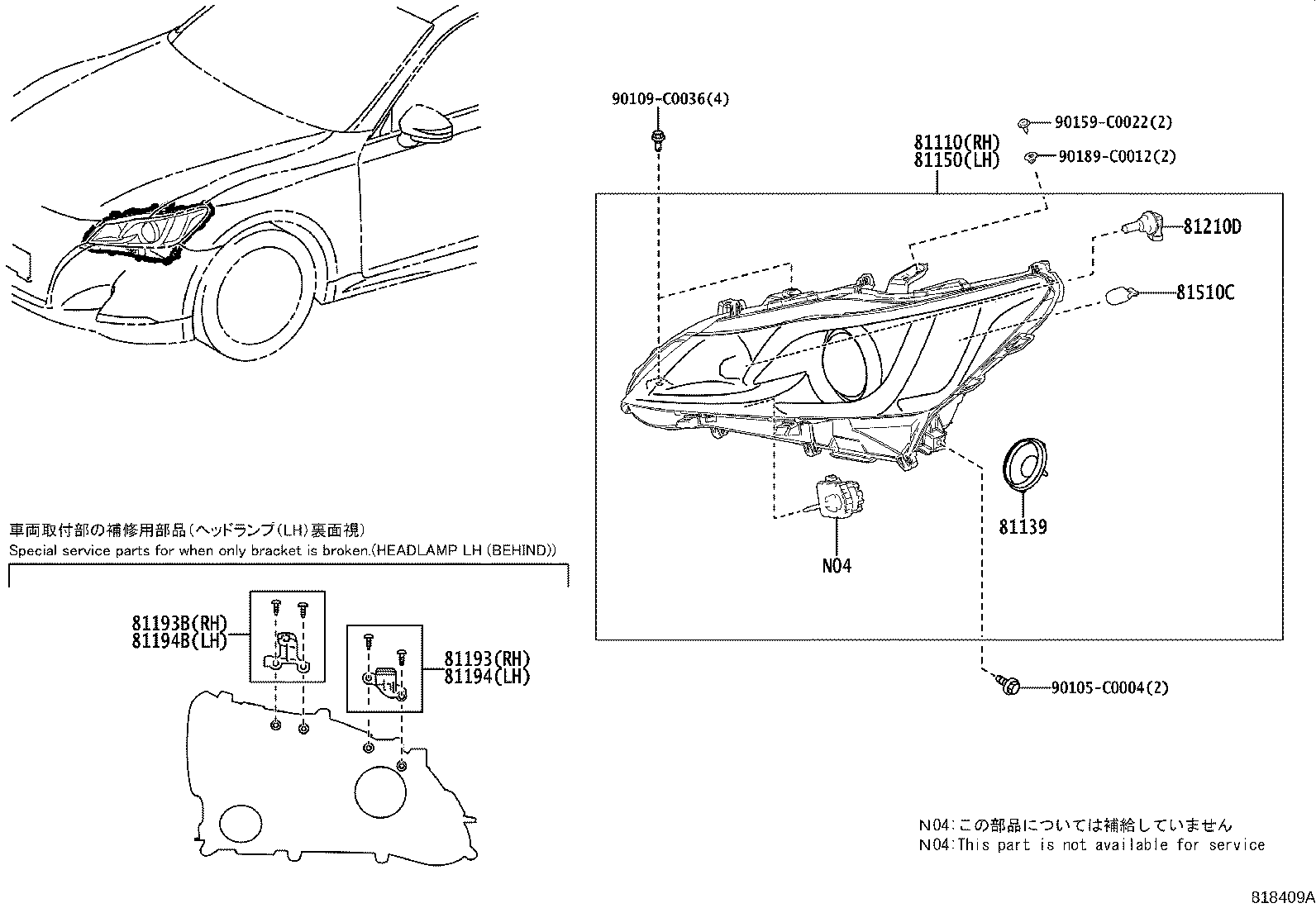

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81110 — Headlamp Assy, RH | ||||
| 81110-0N110 |
Headlamp Assy, RH
2015-01 → 2016-07
ended
|
ARS212,GRS218 | — | |
| 81110-0N140 |
Headlamp Assy, RH
2016-08 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 81110-0N130 |
Headlamp Assy, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 81110-0N130 |
Headlamp Assy, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 81139 — Cover, Headlamp Socket | ||||
| 81135-0N110 |
Cover, Headlamp Socket
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 81135-0N110 |
Cover, Headlamp Socket
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 81135-0N110 |
Cover, Headlamp Socket
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 81150 — Headlamp Assy, LH | ||||
| 81150-0N110 |
Headlamp Assy, LH
2015-01 → 2016-07
ended
|
ARS212,GRS218 | — | |
| 81150-0N140 |
Headlamp Assy, LH
2016-08 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 81150-0N130 |
Headlamp Assy, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 81150-0N130 |
Headlamp Assy, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 81193 — Retainer, Headlamp Protector, Upper RH | ||||
| 81193-0N020 |
Retainer, Headlamp Protector, Upper RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 81193-0N020 |
Retainer, Headlamp Protector, Upper RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 81193-0N020 |
Retainer, Headlamp Protector, Upper RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 81193B — Retainer, Headlamp Protector, Upper RH NO.2 | ||||
| 81195-0N010 |
Retainer, Headlamp Protector, Upper RH NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 81195-0N010 |
Retainer, Headlamp Protector, Upper RH NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 81195-0N010 |
Retainer, Headlamp Protector, Upper RH NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 81194 — Retainer, Headlamp Protector, Upper LH | ||||
| 81194-0N020 |
Retainer, Headlamp Protector, Upper LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 81194-0N020 |
Retainer, Headlamp Protector, Upper LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 81194-0N020 |
Retainer, Headlamp Protector, Upper LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 81194B — Retainer, Headlamp Protector, Upper LH NO.2 | ||||
| 81196-0N010 |
Retainer, Headlamp Protector, Upper LH NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 81196-0N010 |
Retainer, Headlamp Protector, Upper LH NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 81196-0N010 |
Retainer, Headlamp Protector, Upper LH NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 81210D — Bulb, Fog Lamp | ||||
| 90981-13083 note |
Bulb, Fog Lamp
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90981-13083 note |
Bulb, Fog Lamp
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90981-13083 note |
Bulb, Fog Lamp
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 81510C — Bulb (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90981-15021 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90981-15021 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
