Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

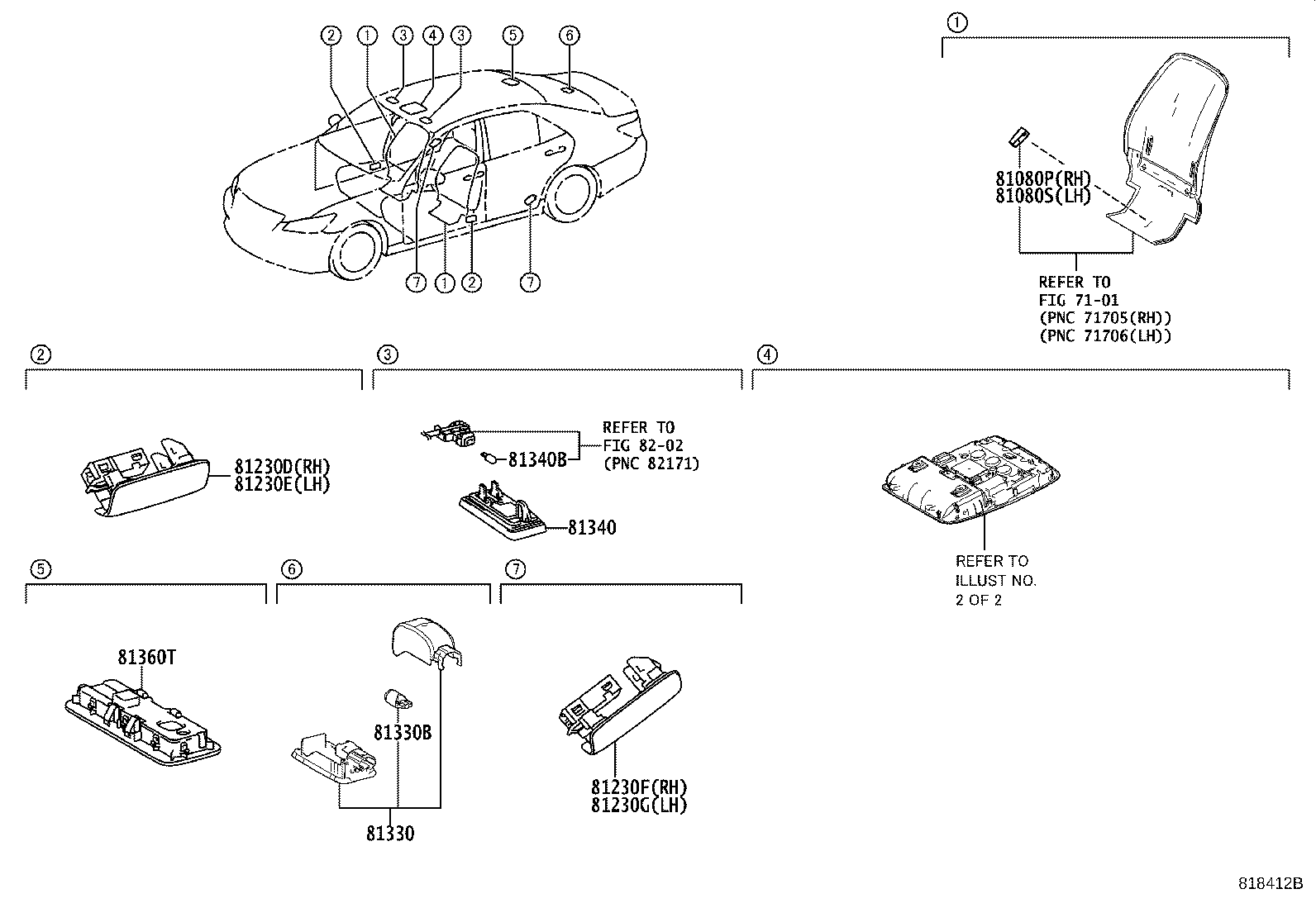

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81080P — Lamp Assy, Interior Illumination, NO.1 RH | ||||
| 81080-30040 |
Lamp Assy, Interior Illumination, NO.1 RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 81080-30040 |
Lamp Assy, Interior Illumination, NO.1 RH
2017-12 → —
|
ARS212 Q,U | — | |
| 81080S — Lamp Assy, Interior Illumination, NO.1 LH | ||||
| 81080-30040 |
Lamp Assy, Interior Illumination, NO.1 LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 81080-30040 |
Lamp Assy, Interior Illumination, NO.1 LH
2017-12 → —
|
ARS212 Q,U | — | |
| 81230D — Lamp Assy, Front Door Courtesy, RH | ||||
| 81230-30200 |
Lamp Assy, Front Door Courtesy, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 81230-11030 |
Lamp Assy, Front Door Courtesy, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 81230-11030 |
Lamp Assy, Front Door Courtesy, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 81230E — Lamp Assy, Front Door Courtesy, LH | ||||
| 81230-30200 |
Lamp Assy, Front Door Courtesy, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 81230-11030 |
Lamp Assy, Front Door Courtesy, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 81230-11030 |
Lamp Assy, Front Door Courtesy, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 81230F — Lamp Assy, Rear Door Courtesy, RH | ||||
| 81230-30200 |
Lamp Assy, Rear Door Courtesy, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 81230-11030 |
Lamp Assy, Rear Door Courtesy, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 81230-11030 |
Lamp Assy, Rear Door Courtesy, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 81230G — Lamp Assy, Rear Door Courtesy, LH | ||||
| 81230-30200 |
Lamp Assy, Rear Door Courtesy, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 81230-11030 |
Lamp Assy, Rear Door Courtesy, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 81230-11030 |
Lamp Assy, Rear Door Courtesy, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 81330 — Lamp Assy, Luggage Compartment, NO.1 | ||||
| 81250-30210 |
Lamp Assy, Luggage Compartment, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 81250-30210 |
Lamp Assy, Luggage Compartment, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 81250-30210 |
Lamp Assy, Luggage Compartment, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 81330B — Bulb, Luggage Compartment Lamp | ||||
| 99132-12050 note |
Bulb, Luggage Compartment Lamp
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 99132-12050 note |
Bulb, Luggage Compartment Lamp
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 99132-12050 note |
Bulb, Luggage Compartment Lamp
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 81340 — Lamp Assy, Vanity | ||||
| 81340-0P010 |
Lamp Assy, Vanity
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 81340-0P010 |
Lamp Assy, Vanity
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 81340-0P010 |
Lamp Assy, Vanity
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 81340B — Bulb (FOR VANITY LAMP) | ||||
| 90981-11062 note |
Bulb (FOR VANITY LAMP)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90981-11062 note |
Bulb (FOR VANITY LAMP)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90981-11062 note |
Bulb (FOR VANITY LAMP)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 81360T — Lamp Assy, Spot | ||||
| 81360-0N020-A2 note |
Lamp Assy, Spot
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 81360-0N020-B0 note |
Lamp Assy, Spot
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 81360-0N020-B0 note |
Lamp Assy, Spot
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 81360-0N030-A0 note |
Lamp Assy, Spot
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 81360-0N030-A0 note |
Lamp Assy, Spot
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 81360-0N030-B0 note |
Lamp Assy, Spot
2017-12 → —
|
ARS212 Q,S,U | — | |
| 81360-0N030-B0 note |
Lamp Assy, Spot
2017-12 → —
|
ARS212 P | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
