Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

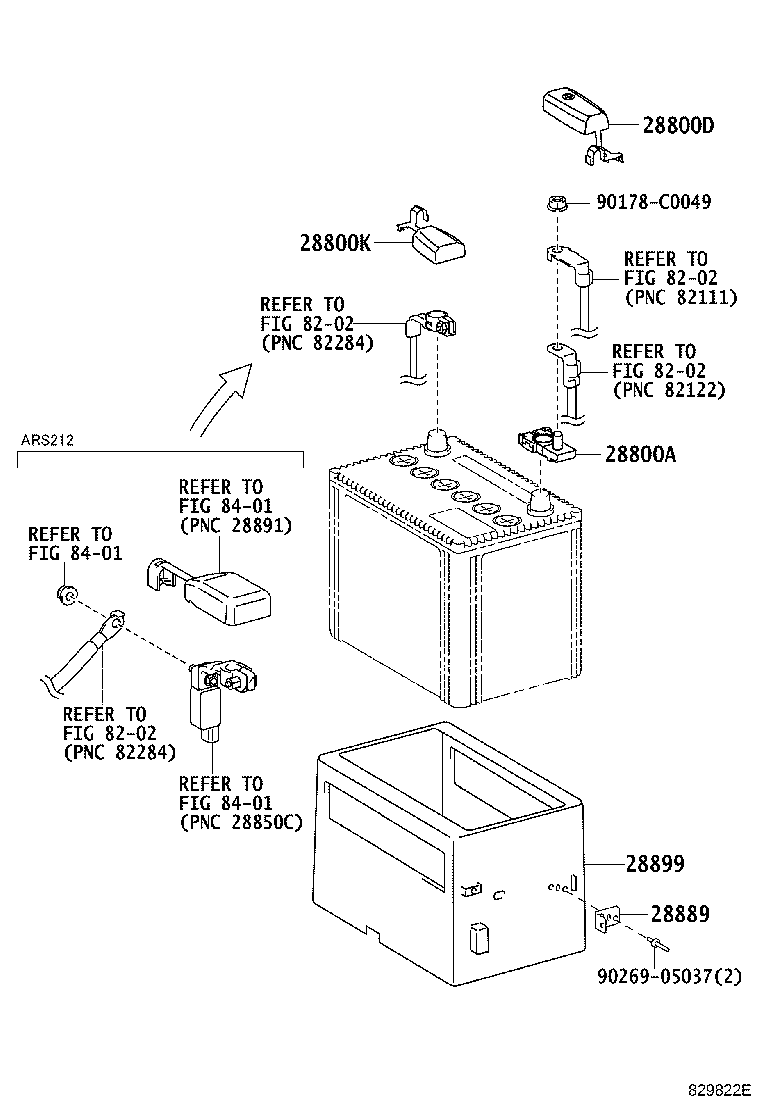

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28800A — Terminal, Battery Positive | ||||
| 90982-05062 |
Terminal, Battery Positive
2015-01 → 2017-12
ended
|
8ARFTS,5GRFE ARS212,GRS218 | — | |
| 90982-05062 |
Terminal, Battery Positive
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90982-05062 |
Terminal, Battery Positive
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 28800D — Cover, Connector(FOR BATTERY TERMINAL) | ||||
| 82821-50470 |
Cover, Connector(FOR BATTERY TERMINAL)
2015-01 → 2017-12
ended
|
8ARFTS,5GRFE ARS212,GRS218 | — | |
| 82821-50470 |
Cover, Connector(FOR BATTERY TERMINAL)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 82821-50470 |
Cover, Connector(FOR BATTERY TERMINAL)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 28800K — Cover, Connector(FOR BATTERY TERMINAL NEGATIVE) | ||||
| 82821-30760 |
Cover, Connector(FOR BATTERY TERMINAL NEGATIVE)
2015-01 → 2017-12
ended
|
5GRFE GRS218 | — | |
| 28889 — Bracket, Battery Wire Clamp | ||||
| 28889-31010 |
Bracket, Battery Wire Clamp
2015-01 → 2017-12
ended
|
8ARFTS,5GRFE ARS212,GRS218 | — | |
| 28889-31010 |
Bracket, Battery Wire Clamp
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 28889-31010 |
Bracket, Battery Wire Clamp
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 28899 — Insulator, Battery | ||||
| 28899-0P010 |
Insulator, Battery
2015-01 → 2017-12
ended
|
8ARFTS,5GRFE ARS212,GRS218 | — | |
| 28899-0P010 |
Insulator, Battery
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 28899-0P010 |
Insulator, Battery
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
