Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

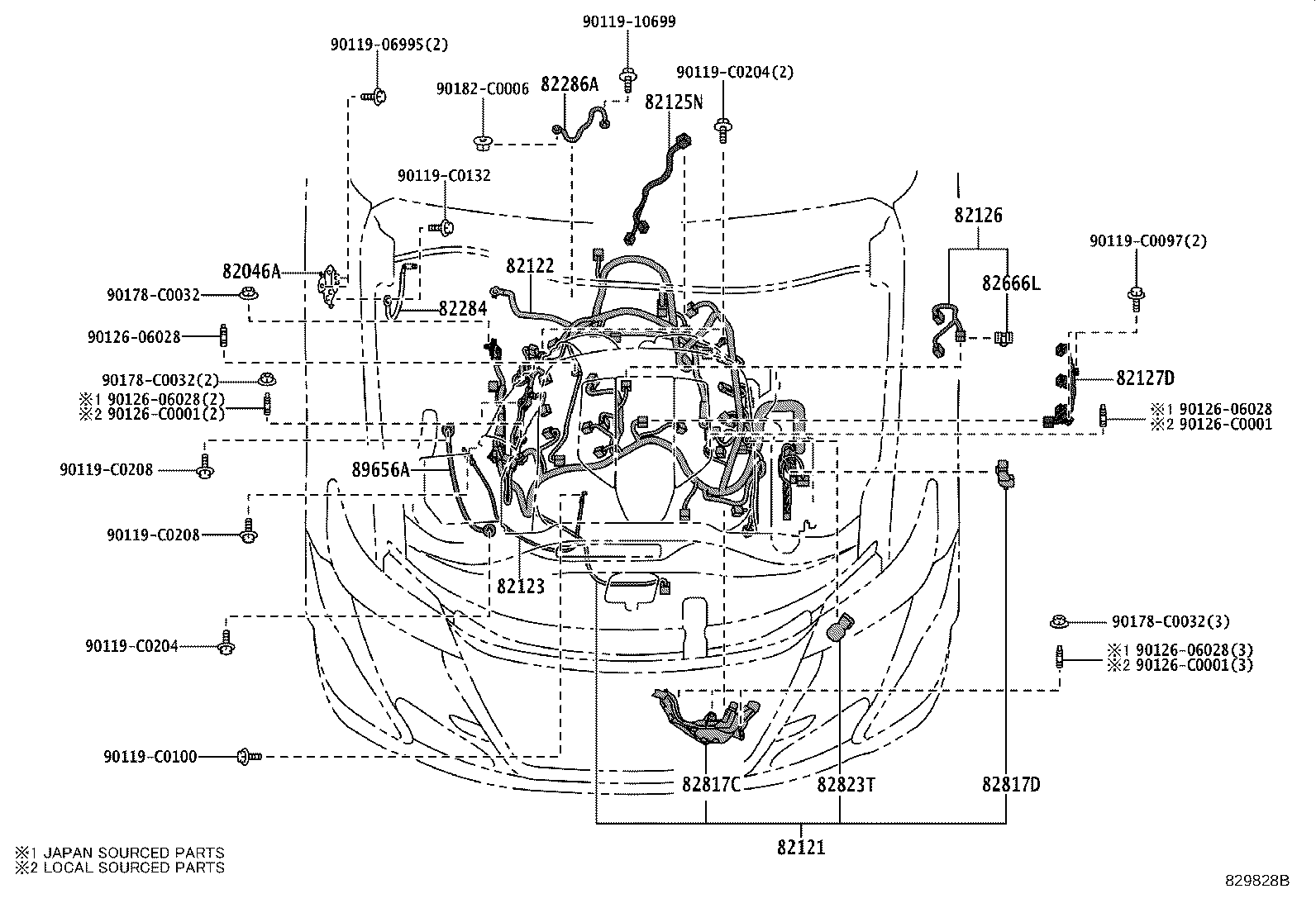

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82046A — Wire Sub-assy, Body Ground, NO.1 | ||||
| 82046-0N010 |
Wire Sub-assy, Body Ground, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 82046-0N010 |
Wire Sub-assy, Body Ground, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82046-0N010 |
Wire Sub-assy, Body Ground, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82121 — Wire, Engine | ||||
| 82121-0N060 |
Wire, Engine
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 82121-0N070 |
Wire, Engine
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82121-0N070 |
Wire, Engine
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82121-0N070 |
Wire, Engine
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82122 — Wire, Engine, NO.2 | ||||
| 82122-0N010 |
Wire, Engine, NO.2
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 82122-0N030 |
Wire, Engine, NO.2
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82122-0N030 |
Wire, Engine, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82122-0N030 |
Wire, Engine, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82123 — Wire, Engine, NO.3 | ||||
| 82123-0N010 |
Wire, Engine, NO.3
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 82123-0N030 |
Wire, Engine, NO.3
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82123-0N030 |
Wire, Engine, NO.3
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82123-0N030 |
Wire, Engine, NO.3
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82125N — Wire, Engine, NO.5 | ||||
| 82125-0N010 |
Wire, Engine, NO.5
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 82125-30591 |
Wire, Engine, NO.5
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82125-30591 |
Wire, Engine, NO.5
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82125-30591 |
Wire, Engine, NO.5
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82126 — Wire, Engine | ||||
| 82126-0N010 |
Wire, Engine
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 82126-78010 |
Wire, Engine
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82126-78010 |
Wire, Engine
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82126-78010 |
Wire, Engine
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82127D — Wire, Engine, NO.7 | ||||
| 82127-0N010 |
Wire, Engine, NO.7
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 82127-30060 |
Wire, Engine, NO.7
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82127-30060 |
Wire, Engine, NO.7
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82127-30060 |
Wire, Engine, NO.7
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82284 — Wire, Earth | ||||
| 82284-0N020 |
Wire, Earth
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 82284-0N030 |
Wire, Earth
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82284-0N030 |
Wire, Earth
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82284-0N030 |
Wire, Earth
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82286A — Wire, Earth, NO.2 | ||||
| 82286-0N030 |
Wire, Earth, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 82286-0N030 |
Wire, Earth, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82286-0N030 |
Wire, Earth, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82666L — Holder, Connector NO.9 | ||||
| 82666-43040 |
Holder, Connector NO.9
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 82817C — Protector, Wiring Harness, NO.4 | ||||
| 82817-0N080 |
Protector, Wiring Harness, NO.4
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82817-30A80 |
Protector, Wiring Harness, NO.4
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 82817-0N080 |
Protector, Wiring Harness, NO.4
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82817-0N080 |
Protector, Wiring Harness, NO.4
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82817D — Protector, Wiring Harness, NO.5 | ||||
| 82817-0N090 |
Protector, Wiring Harness, NO.5
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82817-30M90 |
Protector, Wiring Harness, NO.5
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 82817-0N090 |
Protector, Wiring Harness, NO.5
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82817-0N090 |
Protector, Wiring Harness, NO.5
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82823T — Cap, Alternator Terminal | ||||
| 82823-52010 |
Cap, Alternator Terminal
2015-01 → 2017-11
ended
|
ARS212,GRS218 | — | |
| 82823-52010 |
Cap, Alternator Terminal
2017-12 → —
|
ARS212 | — | |
| 89656A — Wire, Power Steering Earth | ||||
| 89656-30010 |
Wire, Power Steering Earth
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 89656-30030 |
Wire, Power Steering Earth
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 89656-30030 |
Wire, Power Steering Earth
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 89656-30030 |
Wire, Power Steering Earth
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
