Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

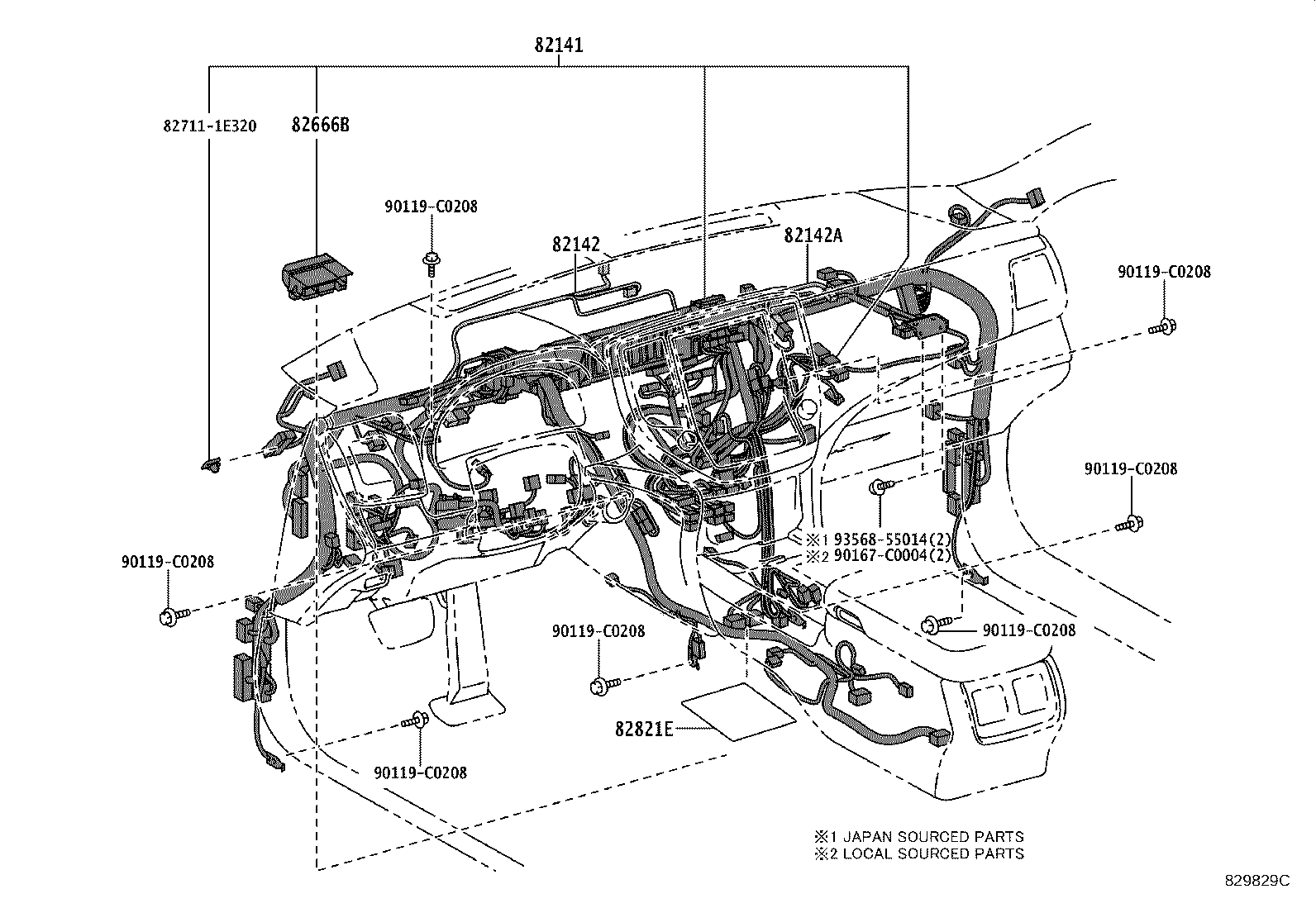

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82141 — Wire, Instrument Panel | ||||
| 82141-0N250 note |
Wire, Instrument Panel
2015-01 → 2017-12
ended
|
GRS218 U | — | |
| 82141-0N260 |
Wire, Instrument Panel
2015-01 → 2017-12
ended
|
GRS218 U | — | |
| 82141-0N270 |
Wire, Instrument Panel
2015-01 → 2017-12
ended
|
GRS218 Q | — | |
| 82141-0N280 |
Wire, Instrument Panel
2015-01 → 2017-12
ended
|
GRS218 S | — | |
| 82141-0N290 |
Wire, Instrument Panel
2015-01 → 2017-12
ended
|
GRS218 B | — | |
| 82141-0N300 note |
Wire, Instrument Panel
2015-08 → 2017-12
ended
|
ARS212 U | — | |
| 82141-0N310 |
Wire, Instrument Panel
2015-08 → 2017-12
ended
|
ARS212 U | — | |
| 82141-0N320 |
Wire, Instrument Panel
2015-08 → 2017-12
ended
|
ARS212 Q | — | |
| 82141-0N330 |
Wire, Instrument Panel
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 82141-0N340 |
Wire, Instrument Panel
2015-08 → 2017-12
ended
|
ARS212 B | — | |
| 82141-0N350 note |
Wire, Instrument Panel
2015-01 → 2017-12
ended
|
GRS218 S | — | |
| 82141-0N360 |
Wire, Instrument Panel
2017-12 → —
|
ARS212 U | — | |
| 82141-0N370 |
Wire, Instrument Panel
2017-12 → —
|
ARS212 Q | — | |
| 82141-0N380 |
Wire, Instrument Panel
2017-12 → —
|
ARS212 P | — | |
| 82141-0N390 |
Wire, Instrument Panel
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82141-0N400 |
Wire, Instrument Panel
2017-12 → —
|
ARS212 S | — | |
| 82142 — Wire, Instrument Panel, NO.2 | ||||
| 82142-0N030 |
Wire, Instrument Panel, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 82142-0N040 |
Wire, Instrument Panel, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q | — | |
| 82142-0N050 |
Wire, Instrument Panel, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,S | — | |
| 82142-0N030 |
Wire, Instrument Panel, NO.2
2017-12 → —
|
ARS212 U | — | |
| 82142-0N040 |
Wire, Instrument Panel, NO.2
2017-12 → —
|
ARS212 Q | — | |
| 82142-0N050 |
Wire, Instrument Panel, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82142-0N050 |
Wire, Instrument Panel, NO.2
2017-12 → —
|
ARS212 P,S | — | |
| 82142A — Wire, Instrument Panel, NO.2 | ||||
| 82140-0P020 |
Wire, Instrument Panel, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 82140-0P020 |
Wire, Instrument Panel, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82140-0P020 |
Wire, Instrument Panel, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82666B — Holder, Connector NO.3 | ||||
| 82666-30C40 |
Holder, Connector NO.3
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 82666-30C40 |
Holder, Connector NO.3
2017-12 → —
|
ARS212 S,U | — | |
| 82821E — Cover, Connector | ||||
| F1971-30040 |
Cover, Connector
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| F1971-30040 |
Cover, Connector
2017-12 → —
|
ARS212 S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
