Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

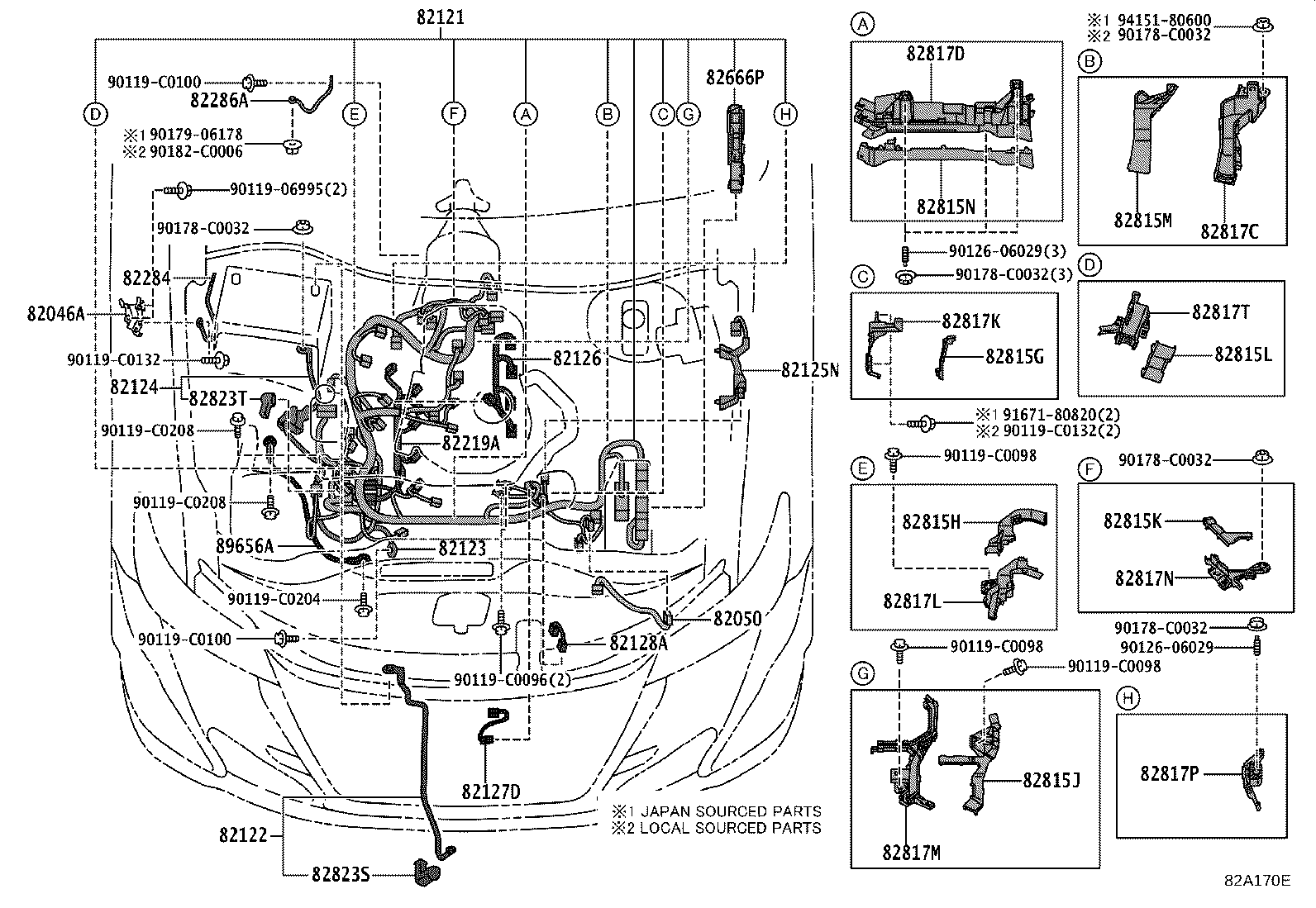

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82046A — Wire Sub-assy, Body Ground, NO.1 | ||||
| 82046-0N010 |
Wire Sub-assy, Body Ground, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 82046-0N010 |
Wire Sub-assy, Body Ground, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82046-0N010 |
Wire Sub-assy, Body Ground, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82050 — Wire Assy, Engine | ||||
| 8212A-30010 |
Wire Assy, Engine
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 8212A-30010 |
Wire Assy, Engine
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 8212A-30010 |
Wire Assy, Engine
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82121 — Wire, Engine | ||||
| 82121-0N060 |
Wire, Engine
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 82121-0N070 |
Wire, Engine
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82121-0N070 |
Wire, Engine
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82121-0N070 |
Wire, Engine
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82122 — Wire, Engine, NO.2 | ||||
| 82122-0N010 |
Wire, Engine, NO.2
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 82122-0N030 |
Wire, Engine, NO.2
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82122-0N030 |
Wire, Engine, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82122-0N030 |
Wire, Engine, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82123 — Wire, Engine, NO.3 | ||||
| 82123-0N010 |
Wire, Engine, NO.3
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 82123-0N030 |
Wire, Engine, NO.3
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82123-0N030 |
Wire, Engine, NO.3
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82123-0N030 |
Wire, Engine, NO.3
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82124 — Wire, Engine, NO.4 | ||||
| 82124-0N020 |
Wire, Engine, NO.4
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82124-0N020 |
Wire, Engine, NO.4
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82124-0N020 |
Wire, Engine, NO.4
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82125N — Wire, Engine, NO.5 | ||||
| 82125-0N010 |
Wire, Engine, NO.5
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 82125-30591 |
Wire, Engine, NO.5
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82125-30591 |
Wire, Engine, NO.5
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82125-30591 |
Wire, Engine, NO.5
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82126 — Wire, Engine | ||||
| 82126-0N010 |
Wire, Engine
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 82126-78010 |
Wire, Engine
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82126-78010 |
Wire, Engine
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82126-78010 |
Wire, Engine
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82127D — Wire, Engine, NO.7 | ||||
| 82127-0N010 |
Wire, Engine, NO.7
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 82127-30060 |
Wire, Engine, NO.7
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82127-30060 |
Wire, Engine, NO.7
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82127-30060 |
Wire, Engine, NO.7
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82128A — Wire, Engine, NO.8 | ||||
| 82128-30010 |
Wire, Engine, NO.8
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82128-30010 |
Wire, Engine, NO.8
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82128-30010 |
Wire, Engine, NO.8
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82219A — Wire, Sensor | ||||
| 82219-30040 |
Wire, Sensor
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82219-30040 |
Wire, Sensor
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82219-30040 |
Wire, Sensor
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82284 — Wire, Earth | ||||
| 82284-0N020 |
Wire, Earth
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 82284-0N030 |
Wire, Earth
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82284-0N030 |
Wire, Earth
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82284-0N030 |
Wire, Earth
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82286A — Wire, Earth, NO.2 | ||||
| 82286-0N030 |
Wire, Earth, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 82286-0N030 |
Wire, Earth, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82286-0N030 |
Wire, Earth, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82666P — Holder, Connector NO.11 | ||||
| 82666-30D90 |
Holder, Connector NO.11
2015-08 → 2017-11
ended
|
ARS212 | — | |
| 82666-30D90 |
Holder, Connector NO.11
2017-12 → 2020-04
ended
|
ARS212 | — | |
| 82815G — Cover, Wiring Harness Protector NO.5 | ||||
| 82815-0N060 |
Cover, Wiring Harness Protector NO.5
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82815-0N060 |
Cover, Wiring Harness Protector NO.5
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82815-0N060 |
Cover, Wiring Harness Protector NO.5
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82815H — Cover, Wiring Harness Protector NO.6 | ||||
| 82815-0N070 |
Cover, Wiring Harness Protector NO.6
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82815-0N070 |
Cover, Wiring Harness Protector NO.6
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82815-0N070 |
Cover, Wiring Harness Protector NO.6
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82815J — Cover, Wiring Harness Protector, NO.7 | ||||
| 82815-0N080 |
Cover, Wiring Harness Protector, NO.7
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82815-0N080 |
Cover, Wiring Harness Protector, NO.7
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82815-0N080 |
Cover, Wiring Harness Protector, NO.7
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82815K — Cover, Wiring Harness Protector, NO.8 | ||||
| 82815-0N090 |
Cover, Wiring Harness Protector, NO.8
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82815-0N090 |
Cover, Wiring Harness Protector, NO.8
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82815-0N090 |
Cover, Wiring Harness Protector, NO.8
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82815L — Cover, Wiring Harness Protector, NO.9 | ||||
| 82815-0N100 |
Cover, Wiring Harness Protector, NO.9
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82815-0N100 |
Cover, Wiring Harness Protector, NO.9
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82815-0N100 |
Cover, Wiring Harness Protector, NO.9
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82815M — Cover, Wiring Harness Protector, NO.10 | ||||
| 82815-0N040 |
Cover, Wiring Harness Protector, NO.10
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82815-0N040 |
Cover, Wiring Harness Protector, NO.10
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82815-0N040 |
Cover, Wiring Harness Protector, NO.10
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82815N — Cover, Wiring Harness Protector, NO.11 | ||||
| 82815-0N050 |
Cover, Wiring Harness Protector, NO.11
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82815-0N050 |
Cover, Wiring Harness Protector, NO.11
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82815-0N050 |
Cover, Wiring Harness Protector, NO.11
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82817C — Protector, Wiring Harness, NO.4 | ||||
| 82817-0N080 |
Protector, Wiring Harness, NO.4
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82817-30A80 |
Protector, Wiring Harness, NO.4
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 82817-0N080 |
Protector, Wiring Harness, NO.4
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82817-0N080 |
Protector, Wiring Harness, NO.4
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82817D — Protector, Wiring Harness, NO.5 | ||||
| 82817-0N090 |
Protector, Wiring Harness, NO.5
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82817-30M90 |
Protector, Wiring Harness, NO.5
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 82817-0N090 |
Protector, Wiring Harness, NO.5
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82817-0N090 |
Protector, Wiring Harness, NO.5
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82817K — Protector, Wiring Harness, NO.10 | ||||
| 82817-0N100 |
Protector, Wiring Harness, NO.10
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82817-0N100 |
Protector, Wiring Harness, NO.10
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82817-0N100 |
Protector, Wiring Harness, NO.10
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82817L — Protector, Wiring Harness, NO.11 | ||||
| 82817-0N110 |
Protector, Wiring Harness, NO.11
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82817-0N110 |
Protector, Wiring Harness, NO.11
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82817-0N110 |
Protector, Wiring Harness, NO.11
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82817M — Protector, Wiring Harness, NO.12 | ||||
| 82817-0N120 |
Protector, Wiring Harness, NO.12
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82817-0N120 |
Protector, Wiring Harness, NO.12
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82817-0N120 |
Protector, Wiring Harness, NO.12
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82817N — Protector, Wiring Harness, NO.13 | ||||
| 82817-0N130 |
Protector, Wiring Harness, NO.13
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82817-0N130 |
Protector, Wiring Harness, NO.13
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82817-0N130 |
Protector, Wiring Harness, NO.13
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82817P — Protector, Wiring Harness, NO.14 | ||||
| 82817-0N140 |
Protector, Wiring Harness, NO.14
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82817-0N140 |
Protector, Wiring Harness, NO.14
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82817-0N140 |
Protector, Wiring Harness, NO.14
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82817T — Protector, Wiring Harness, NO.15 | ||||
| 82817-0N220 |
Protector, Wiring Harness, NO.15
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82817-0N220 |
Protector, Wiring Harness, NO.15
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82817-0N220 |
Protector, Wiring Harness, NO.15
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82823S — Cap, Starter Terminal | ||||
| 82823-30090 |
Cap, Starter Terminal
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82823-30090 |
Cap, Starter Terminal
2017-12 → —
|
ARS212 | — | |
| 82823T — Cap, Alternator Terminal | ||||
| 82823-52010 |
Cap, Alternator Terminal
2015-01 → 2017-11
ended
|
ARS212,GRS218 | — | |
| 82823-52010 |
Cap, Alternator Terminal
2017-12 → —
|
ARS212 | — | |
| 89656A — Wire, Power Steering Earth | ||||
| 89656-30010 |
Wire, Power Steering Earth
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 89656-30030 |
Wire, Power Steering Earth
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 89656-30030 |
Wire, Power Steering Earth
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 89656-30030 |
Wire, Power Steering Earth
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
