Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

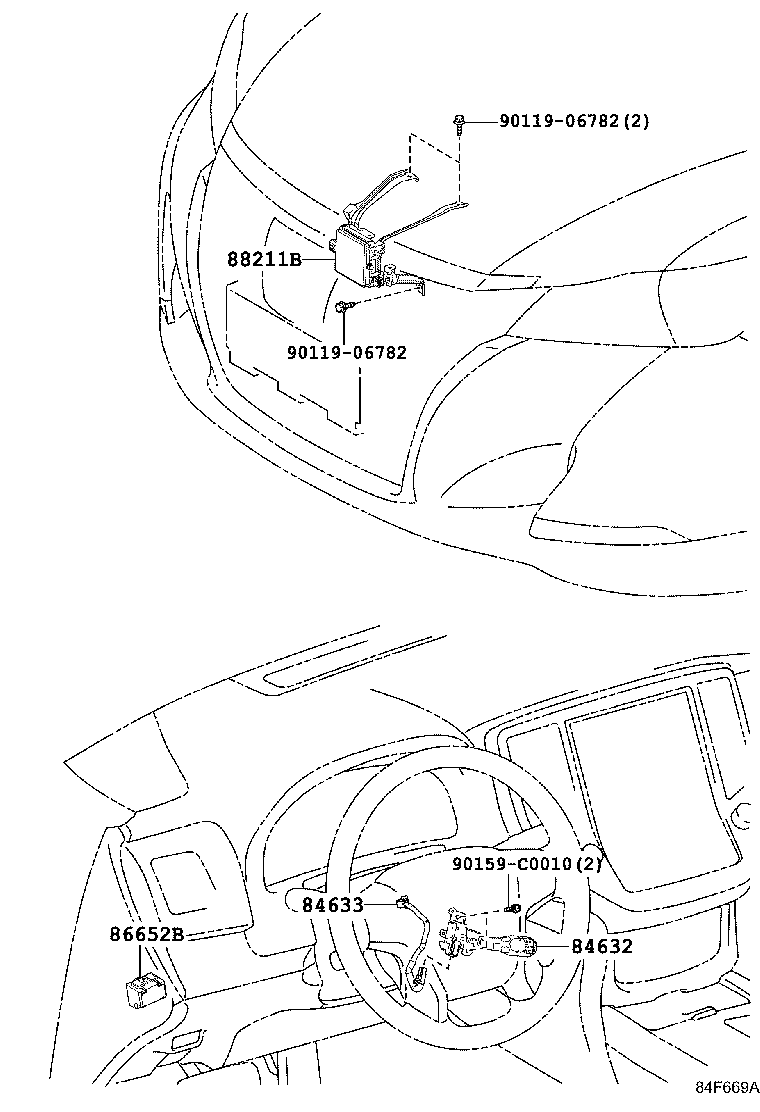

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84632 — Switch, Cruise Control Main | ||||
| 84632-0N010 |
Switch, Cruise Control Main
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 84632-0N010 |
Switch, Cruise Control Main
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 84633 — Wire, Cruise Control Switch | ||||
| 84633-0N010 |
Wire, Cruise Control Switch
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 84633-0N010 |
Wire, Cruise Control Switch
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 86652B — Buzzer, Skid Control | ||||
| 86652-50010 |
Buzzer, Skid Control
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 86652-50010 |
Buzzer, Skid Control
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 88211B — Sensor Assy, Millimeter Wave Radar | ||||
| 88210-30240 |
Sensor Assy, Millimeter Wave Radar
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 88210-30240 |
Sensor Assy, Millimeter Wave Radar
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
