Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

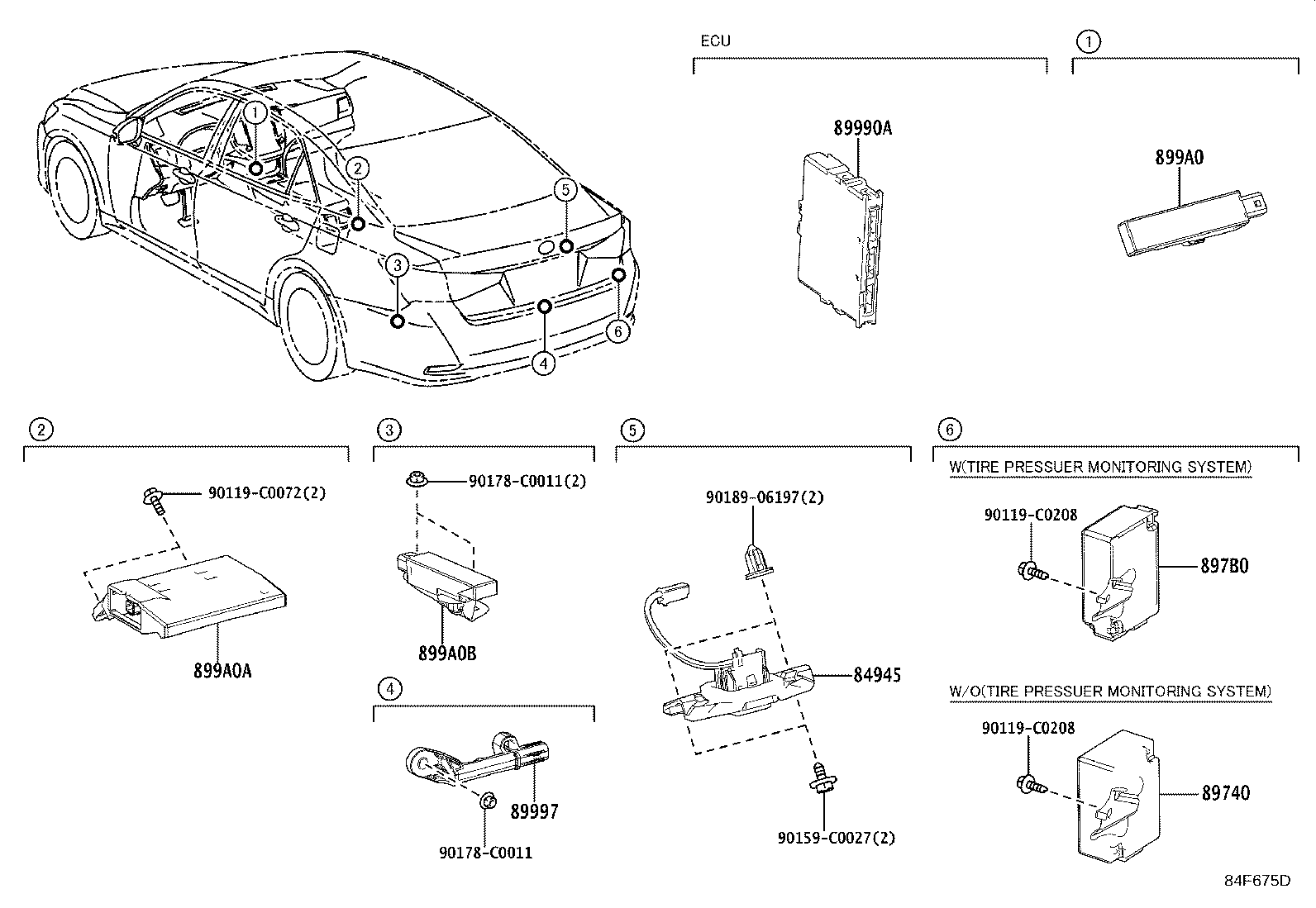

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84945 — Switch, Luggage Electrical Key | ||||
| 84945-0N030 |
Switch, Luggage Electrical Key
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 84945-0N030 |
Switch, Luggage Electrical Key
2017-12 → —
|
ARS212 | — | |
| 89740 — Computer Assy, Door Control W/Receiver | ||||
| 89740-0N040 |
Computer Assy, Door Control W/Receiver
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 89740-0N040 note |
Computer Assy, Door Control W/Receiver
2015-01 → 2017-12
ended
|
GRS218 S | — | |
| 89740-0N040 |
Computer Assy, Door Control W/Receiver
2017-12 → —
|
ARS212 B | — | |
| 897B0 — Receiver Assy, Electrical Key & Tpms | ||||
| 897B0-0N010 |
Receiver Assy, Electrical Key & Tpms
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 897B0-0N010 |
Receiver Assy, Electrical Key & Tpms
2017-12 → 2019-11
ended
|
ARS212 P,Q,S,U | — | |
| 897B0-0N011 |
Receiver Assy, Electrical Key & Tpms
2019-11 → —
|
ARS212 | — | |
| 89990A — Computer Assy, Smart Key | ||||
| 89990-0N020 |
Computer Assy, Smart Key
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 89990-0N030 note |
Computer Assy, Smart Key
2015-01 → 2017-12
ended
|
GRS218 S | — | |
| 89990-0N030 |
Computer Assy, Smart Key
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 89990-0N020 |
Computer Assy, Smart Key
2017-12 → —
|
ARS212 P,Q,U | — | |
| 89990-0N030 |
Computer Assy, Smart Key
2017-12 → —
|
ARS212 B,S | — | |
| 89997 — Antenna, Electrical Key | ||||
| 89997-0E060 |
Antenna, Electrical Key
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 89997-0E060 |
Antenna, Electrical Key
2017-12 → —
|
ARS212 | — | |
| 899A0 — Antenna Assy, Indoor Electrical Key, NO.1 | ||||
| 899A0-0N010 |
Antenna Assy, Indoor Electrical Key, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 899A0-0N010 |
Antenna Assy, Indoor Electrical Key, NO.1
2017-12 → —
|
ARS212 | — | |
| 899A0A — Antenna Assy, Indoor Electrical Key, NO.2 | ||||
| 899A0-0P010 |
Antenna Assy, Indoor Electrical Key, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 899A0-0P010 |
Antenna Assy, Indoor Electrical Key, NO.2
2017-12 → —
|
ARS212 | — | |
| 899A0B — Antenna Assy, Indoor Electrical Key, NO.3 | ||||
| 899A0-0N030 |
Antenna Assy, Indoor Electrical Key, NO.3
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 899A0-0N030 |
Antenna Assy, Indoor Electrical Key, NO.3
2017-12 → —
|
ARS212 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
