Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

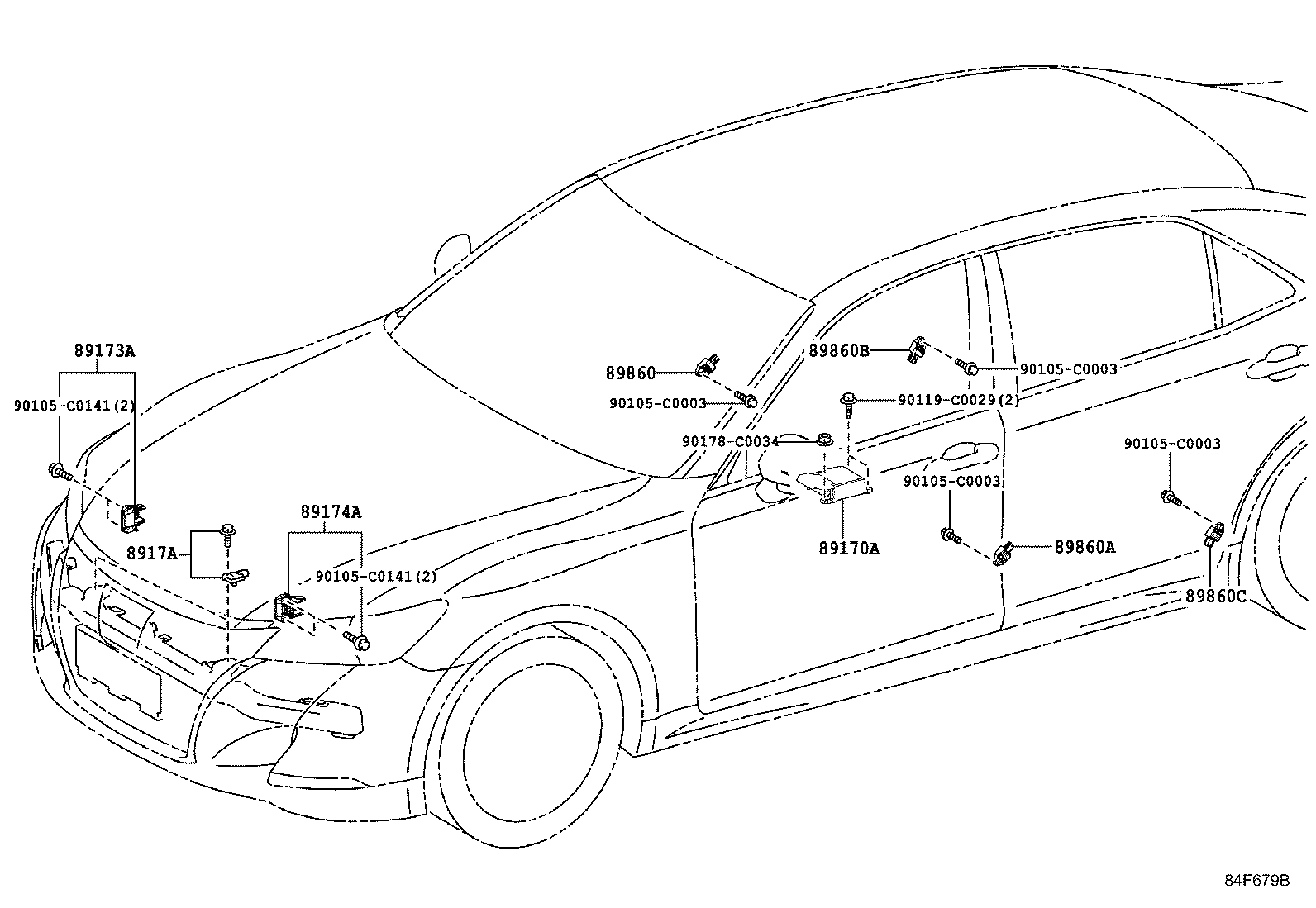

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89170A — Computer Assy, Airbag | ||||
| 89170-0N050 |
Computer Assy, Airbag
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 89170-0N060 |
Computer Assy, Airbag
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 89170-0N070 note |
Computer Assy, Airbag
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 89170-0N050 |
Computer Assy, Airbag
2017-12 → —
|
ARS212 B | — | |
| 89170-0N060 |
Computer Assy, Airbag
2017-12 → —
|
ARS212 P,Q,S | — | |
| 89170-0N070 |
Computer Assy, Airbag
2017-12 → —
|
ARS212 U | — | |
| 89173A — Sensor, Airbag, Front RH | ||||
| 89173-09B70 |
Sensor, Airbag, Front RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 89173-09B70 |
Sensor, Airbag, Front RH
2017-12 → —
|
ARS212 | — | |
| 89174A — Sensor, Airbag, Front LH | ||||
| 89173-09B70 |
Sensor, Airbag, Front LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 89173-09B70 |
Sensor, Airbag, Front LH
2017-12 → —
|
ARS212 | — | |
| 8917A — Sensor, Pedestrian Protection | ||||
| 8917A-30060 |
Sensor, Pedestrian Protection
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 8917A-30060 |
Sensor, Pedestrian Protection
2017-12 → —
|
ARS212 | — | |
| 89860 — Sensor Assy, Side Airbag, RH | ||||
| 89831-0N010 |
Sensor Assy, Side Airbag, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 89831-0N010 |
Sensor Assy, Side Airbag, RH
2017-12 → —
|
ARS212 | — | |
| 89860A — Sensor Assy, Side Airbag, LH | ||||
| 89831-0N010 |
Sensor Assy, Side Airbag, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 89831-0N010 |
Sensor Assy, Side Airbag, LH
2017-12 → —
|
ARS212 | — | |
| 89860B — Sensor Assy, Side Airbag, RH, NO.2 | ||||
| 89831-0N020 |
Sensor Assy, Side Airbag, RH, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 89831-0N020 |
Sensor Assy, Side Airbag, RH, NO.2
2017-12 → —
|
ARS212 | — | |
| 89860C — Sensor Assy, Side Airbag, LH, NO.2 | ||||
| 89831-0N020 |
Sensor Assy, Side Airbag, LH, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 89831-0N020 |
Sensor Assy, Side Airbag, LH, NO.2
2017-12 → —
|
ARS212 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
