Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

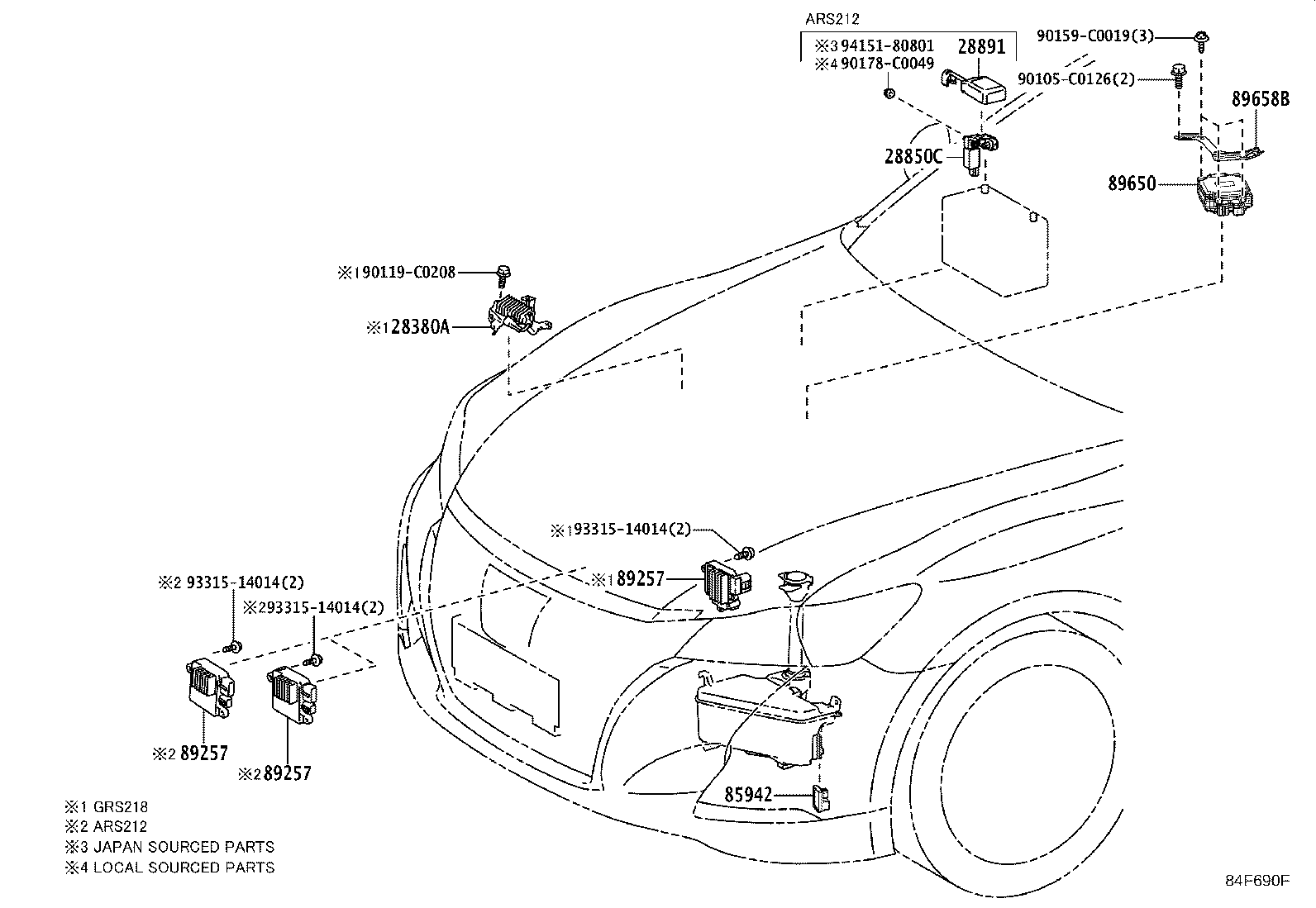

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28380A — Resister, Fuel Pump | ||||
| 23080-31020 |
Resister, Fuel Pump
2015-01 → 2017-12
ended
|
5GRFE GRS218 | — | |
| 28850C — Sensor Assy, Battery State | ||||
| 28850-0V010 |
Sensor Assy, Battery State
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 28850-0V010 |
Sensor Assy, Battery State
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 28850-0V010 |
Sensor Assy, Battery State
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 28891 — Cover, Battery Terminal | ||||
| 28891-0V010 |
Cover, Battery Terminal
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 28891-0V010 |
Cover, Battery Terminal
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 28891-0V010 |
Cover, Battery Terminal
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 85942 — Relay, Headlamp Cleaner Control | ||||
| 85942-53020 |
Relay, Headlamp Cleaner Control
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85942-53020 |
Relay, Headlamp Cleaner Control
2017-12 → —
|
ARS212 | — | |
| 89257 — Computer, Cooling Fan | ||||
| 89257-26020 |
Computer, Cooling Fan
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 89257-30090 |
Computer, Cooling Fan
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 89257-26020 |
Computer, Cooling Fan
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 89257-26020 |
Computer, Cooling Fan
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 89650 — Computer Assy, Power Steering | ||||
| 89650-30B50 |
Computer Assy, Power Steering
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 89650-30B60 |
Computer Assy, Power Steering
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 89650-30F40 note |
Computer Assy, Power Steering
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 89650-30F40 note |
Computer Assy, Power Steering
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 89658B — Bracket, Power Steering, NO.1 | ||||
| F1165-0N010 |
Bracket, Power Steering, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| F1165-0N010 |
Bracket, Power Steering, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| F1165-0N010 |
Bracket, Power Steering, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
