Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

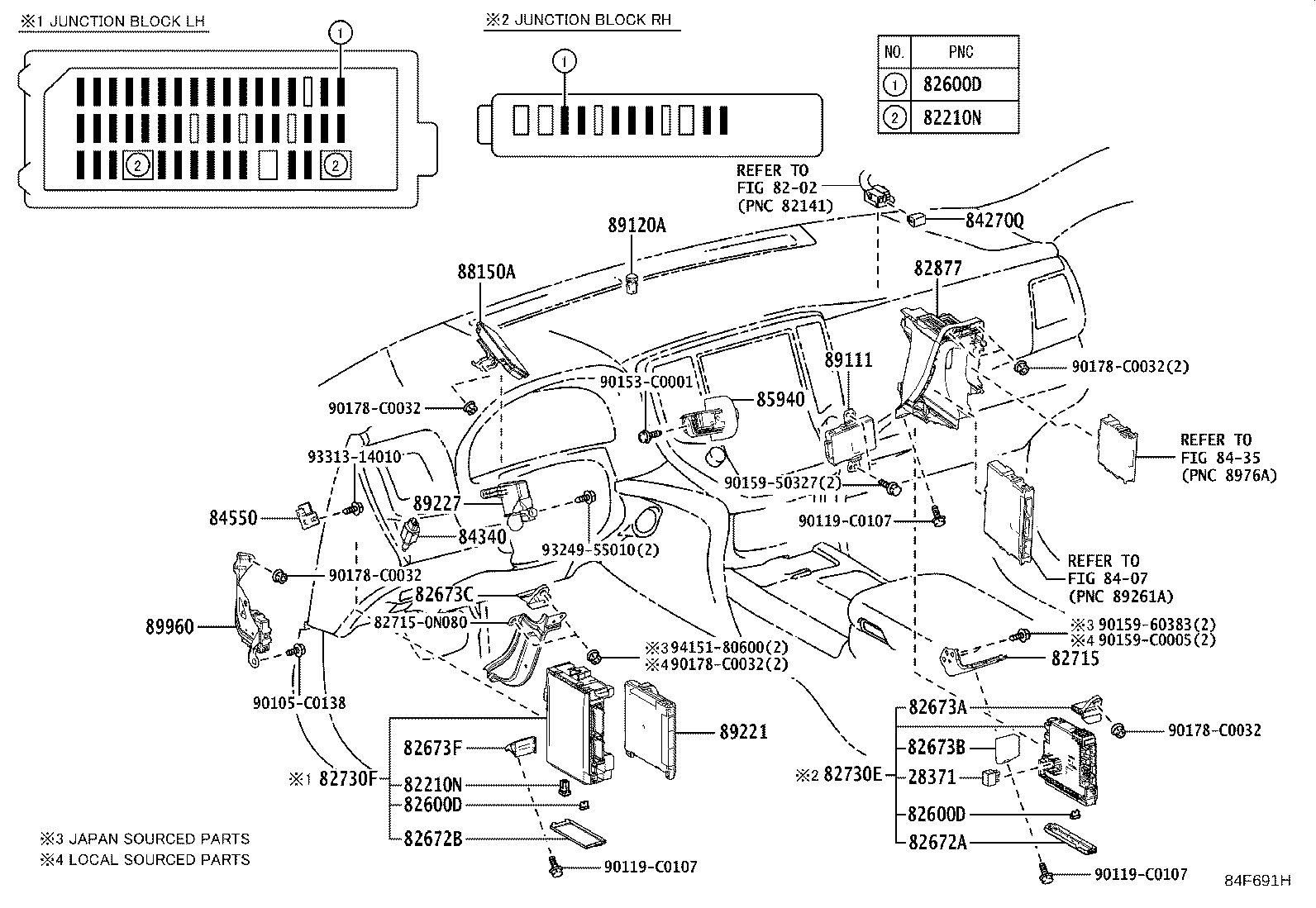

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28371 — Relay, Ignition, NO.1 | ||||
| 90987-02027 |
Relay, Ignition, NO.1
2015-01 → 2017-12
ended
|
8ARFTS,5GRFE ARS212,GRS218 U | — | |
| 90987-02027 |
Relay, Ignition, NO.1
2017-12 → —
|
8ARFTS ARS212 U | — | |
| 82210N — Instrument Panel Fusible Link | ||||
| 90982-08306 note |
Instrument Panel Fusible Link
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90982-08306 note |
Instrument Panel Fusible Link
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90982-08306 note |
Instrument Panel Fusible Link
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82600D — Instrument Panel Fuse | ||||
| 90982-09019 note |
Instrument Panel Fuse
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90982-09020 note |
Instrument Panel Fuse
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90982-09021 note |
Instrument Panel Fuse
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90982-09022 note |
Instrument Panel Fuse
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90982-09023 note |
Instrument Panel Fuse
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90982-09025 note |
Instrument Panel Fuse
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90982-09019 note |
Instrument Panel Fuse
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90982-09019 note |
Instrument Panel Fuse
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 90982-09020 note |
Instrument Panel Fuse
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90982-09020 note |
Instrument Panel Fuse
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 90982-09021 note |
Instrument Panel Fuse
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90982-09021 note |
Instrument Panel Fuse
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 90982-09022 note |
Instrument Panel Fuse
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90982-09022 note |
Instrument Panel Fuse
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 90982-09023 note |
Instrument Panel Fuse
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90982-09023 note |
Instrument Panel Fuse
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 90982-09025 note |
Instrument Panel Fuse
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 90982-09025 note |
Instrument Panel Fuse
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82672A — Cover, Junction Block | ||||
| 82672-30450 |
Cover, Junction Block
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 82672-30450 |
Cover, Junction Block
2017-12 → —
|
ARS212 U | — | |
| 82672B — Cover, Junction Block | ||||
| 82672-30460 |
Cover, Junction Block
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 82672-30470 |
Cover, Junction Block
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,S | — | |
| 82672-30460 |
Cover, Junction Block
2017-12 → —
|
ARS212 Q,U | — | |
| 82672-30470 |
Cover, Junction Block
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82672-30470 |
Cover, Junction Block
2017-12 → —
|
ARS212 P,S | — | |
| 82673A — Bracket, Junction Block, NO.1 | ||||
| 82817-30W50 |
Bracket, Junction Block, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 82817-30W50 |
Bracket, Junction Block, NO.1
2017-12 → —
|
ARS212 U | — | |
| 82673B — Bracket, Junction Block, NO.2 | ||||
| 82673-30050 |
Bracket, Junction Block, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 82673-30050 |
Bracket, Junction Block, NO.2
2017-12 → —
|
ARS212 U | — | |
| 82673C — Bracket, Junction Block | ||||
| 82673-53010 |
Bracket, Junction Block
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 82673-53010 |
Bracket, Junction Block
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82673-53010 |
Bracket, Junction Block
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82673F — Bracket, Junction Block | ||||
| 82817-30W60 |
Bracket, Junction Block
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 82817-30W60 |
Bracket, Junction Block
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82817-30W60 |
Bracket, Junction Block
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82715 — Bracket,Wiring Harness Clamp | ||||
| 82715-0N070 |
Bracket,Wiring Harness Clamp
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 82715-0N070 |
Bracket,Wiring Harness Clamp
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82715-0N070 |
Bracket,Wiring Harness Clamp
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82730E — Block Assy, Junction, RH | ||||
| 82730-30B10 |
Block Assy, Junction, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 82730-30B10 |
Block Assy, Junction, RH
2017-12 → —
|
ARS212 U | — | |
| 82730F — Block Assy, Junction, LH | ||||
| 82730-30L80 |
Block Assy, Junction, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 82730-30L90 |
Block Assy, Junction, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,S | — | |
| 82730-30L80 |
Block Assy, Junction, LH
2017-12 → —
|
ARS212 Q,U | — | |
| 82730-30L90 |
Block Assy, Junction, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82730-30L90 |
Block Assy, Junction, LH
2017-12 → —
|
ARS212 P,S | — | |
| 82877 — Box, Computer Integration, RH | ||||
| 82877-0N010 |
Box, Computer Integration, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 82877-0N010 |
Box, Computer Integration, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82877-0N010 |
Box, Computer Integration, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 84270Q — Relay, Lamp Cut | ||||
| 90987-T2005 |
Relay, Lamp Cut
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 90987-T2005 |
Relay, Lamp Cut
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90987-T2005 |
Relay, Lamp Cut
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 84340 — Switch Assy, Stop Lamp | ||||
| 84340-30130 |
Switch Assy, Stop Lamp
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 84340-30130 |
Switch Assy, Stop Lamp
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 84340-30130 |
Switch Assy, Stop Lamp
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 84550 — Switch Assy, Parking Brake | ||||
| 84550-16060 |
Switch Assy, Parking Brake
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 84550-16060 |
Switch Assy, Parking Brake
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 84550-16060 |
Switch Assy, Parking Brake
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 85940 — Relay Assy, Windshield Wiper | ||||
| 85940-30150 |
Relay Assy, Windshield Wiper
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 85940-30150 |
Relay Assy, Windshield Wiper
2017-12 → —
|
ARS212 P,Q,U | — | |
| 88150A — Computer Assy, Driving Support | ||||
| 88150-30190 |
Computer Assy, Driving Support
2015-01 → 2017-12
ended
|
GRS218 Q,S,U | — | |
| 88150-30200 |
Computer Assy, Driving Support
2015-08 → 2017-12
ended
|
ARS212 Q,S,U | — | |
| 88150-30201 |
Computer Assy, Driving Support
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 89111 — Computer, Network Gateway | ||||
| 89100-30220 |
Computer, Network Gateway
2015-01 → 2015-08
ended
|
GRS218 Q,S,U | — | |
| 89100-30221 |
Computer, Network Gateway
2015-08 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 89100-30231 |
Computer, Network Gateway
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 89100-30231 |
Computer, Network Gateway
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 89120A — Sensor, Automatic Light Control | ||||
| 89121-0E040 |
Sensor, Automatic Light Control
2016-04 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 89121-30020 |
Sensor, Automatic Light Control
2015-01 → 2016-03
ended
|
ARS212,GRS218 | — | |
| 89121-0E040 |
Sensor, Automatic Light Control
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 89121-0E040 |
Sensor, Automatic Light Control
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 89221 — Computer, Multiplex Network Body | ||||
| 89220-0N030 |
Computer, Multiplex Network Body
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,S | — | |
| 89220-0N040 |
Computer, Multiplex Network Body
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 89220-0N050 |
Computer, Multiplex Network Body
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 89220-0N050 |
Computer, Multiplex Network Body
2017-12 → —
|
ARS212 P,S | — | |
| 89220-0N060 |
Computer, Multiplex Network Body
2017-12 → —
|
ARS212 Q,U | — | |
| 89227 — Computer, Multiplex Tilt & Telescopic | ||||
| 89227-30070 |
Computer, Multiplex Tilt & Telescopic
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 89227-30070 |
Computer, Multiplex Tilt & Telescopic
2017-12 → —
|
ARS212 Q,U | — | |
| 89960 — Computer Assy, Headlamp Leveling | ||||
| 89960-30190 |
Computer Assy, Headlamp Leveling
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 89960-30210 |
Computer Assy, Headlamp Leveling
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 89960-30270 |
Computer Assy, Headlamp Leveling
2017-12 → —
|
ARS212 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
