Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

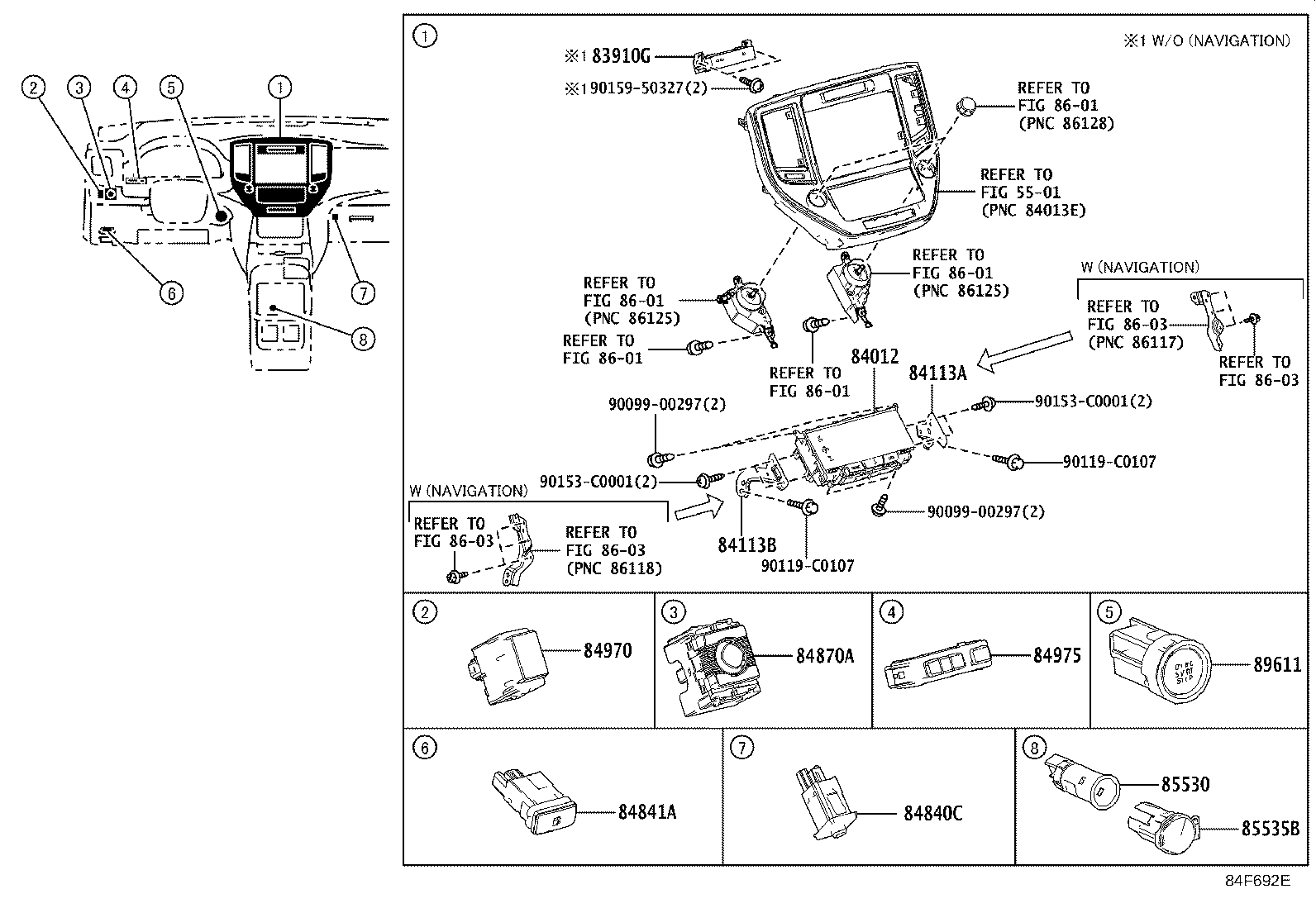

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83910G — Clock Assy | ||||
| 83910-0N010 |
Clock Assy
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,S | — | |
| 83910-0N010 |
Clock Assy
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 83910-0N010 |
Clock Assy
2017-12 → —
|
ARS212 P,S | — | |
| 84012 — Control & Panel Sub-assy, Integration | ||||
| 84012-0N060-B0 note |
Control & Panel Sub-assy, Integration
2015-01 → 2015-10
ended
|
GRS218 | — | |
| 84012-0N060-C0 note |
Control & Panel Sub-assy, Integration
2015-01 → 2015-10
ended
|
GRS218 Q,S,U | — | |
| 84012-0N061-B0 note |
Control & Panel Sub-assy, Integration
2015-10 → 2017-12
ended
|
GRS218 | — | |
| 84012-0N061-C0 note |
Control & Panel Sub-assy, Integration
2015-10 → 2017-12
ended
|
GRS218 Q,S,U | — | |
| 84012-0N070-B0 note |
Control & Panel Sub-assy, Integration
2015-08 → 2015-10
ended
|
ARS212 | — | |
| 84012-0N070-C0 note |
Control & Panel Sub-assy, Integration
2015-08 → 2015-10
ended
|
ARS212 Q,S,U | — | |
| 84012-0N071-B0 note |
Control & Panel Sub-assy, Integration
2015-10 → 2017-12
ended
|
ARS212 | — | |
| 84012-0N071-C0 note |
Control & Panel Sub-assy, Integration
2015-10 → 2017-12
ended
|
ARS212 S | — | |
| 84012-0N071-C0 note |
Control & Panel Sub-assy, Integration
2015-10 → 2017-12
ended
|
ARS212 Q,U | — | |
| 84012-0N090-B0 note |
Control & Panel Sub-assy, Integration
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 84012-0N090-B0 note |
Control & Panel Sub-assy, Integration
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 84012-0N090-C0 note |
Control & Panel Sub-assy, Integration
2017-12 → —
|
ARS212 Q,S,U | — | |
| 84012-0N090-C0 note |
Control & Panel Sub-assy, Integration
2017-12 → —
|
ARS212 P | — | |
| 84113A — Bracket, Switch, NO.1 | ||||
| 84113-0N010 |
Bracket, Switch, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,S | — | |
| 84113-0N010 |
Bracket, Switch, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 84113-0N010 |
Bracket, Switch, NO.1
2017-12 → —
|
ARS212 P,S | — | |
| 84113B — Bracket, Switch, NO.2 | ||||
| 84113-0N020 |
Bracket, Switch, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,S | — | |
| 84113-0N020 |
Bracket, Switch, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 84113-0N020 |
Bracket, Switch, NO.2
2017-12 → —
|
ARS212 P,S | — | |
| 84840C — Switch Assy, Luggage Door Opening, Cancel | ||||
| 84840-0N010 |
Switch Assy, Luggage Door Opening, Cancel
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 84840-0N010 |
Switch Assy, Luggage Door Opening, Cancel
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 84840-0N010 |
Switch Assy, Luggage Door Opening, Cancel
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 84841A — Switch, Fuel Lid Opener | ||||
| 84841-0N010 |
Switch, Fuel Lid Opener
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 84841-0N010 |
Switch, Fuel Lid Opener
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 84841-0N010 |
Switch, Fuel Lid Opener
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 84870A — Switch Assy, Outer Mirror | ||||
| 84872-0N030 |
Switch Assy, Outer Mirror
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,S | — | |
| 84872-0N040 |
Switch Assy, Outer Mirror
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 84872-0N030 |
Switch Assy, Outer Mirror
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 84872-0N030 |
Switch Assy, Outer Mirror
2017-12 → —
|
ARS212 P,S | — | |
| 84872-0N040 |
Switch Assy, Outer Mirror
2017-12 → —
|
ARS212 Q,U | — | |
| 84970 — Switch Assy, Combination | ||||
| 84970-0N030 note |
Switch Assy, Combination
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 84970-0N030 |
Switch Assy, Combination
2017-12 → —
|
ARS212 P,Q,U | — | |
| 84975 — Switch, Trip | ||||
| 84975-0N020 |
Switch, Trip
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 84975-0N020 |
Switch, Trip
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 84975-0N020 |
Switch, Trip
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 85530 — Socket Assy, Power Outlet, NO.1 | ||||
| 85530-0N010 |
Socket Assy, Power Outlet, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85530-0N010 |
Socket Assy, Power Outlet, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 85530-0N010 |
Socket Assy, Power Outlet, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 85535B — Cover, Power Outlet Socket, NO.1 | ||||
| 85535-0N010 |
Cover, Power Outlet Socket, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85535-0N010 |
Cover, Power Outlet Socket, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 85535-0N010 |
Cover, Power Outlet Socket, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 89611 — Switch, Push Start | ||||
| 89611-0R010 |
Switch, Push Start
2015-01 → 2015-07
ended
|
GRS218 | — | |
| 89611-0R011 |
Switch, Push Start
2015-08 → 2016-03
ended
|
ARS212,GRS218 | — | |
| 89611-0R012 |
Switch, Push Start
2016-04 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 89611-0R012 |
Switch, Push Start
2017-12 → —
|
ARS212 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
