Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

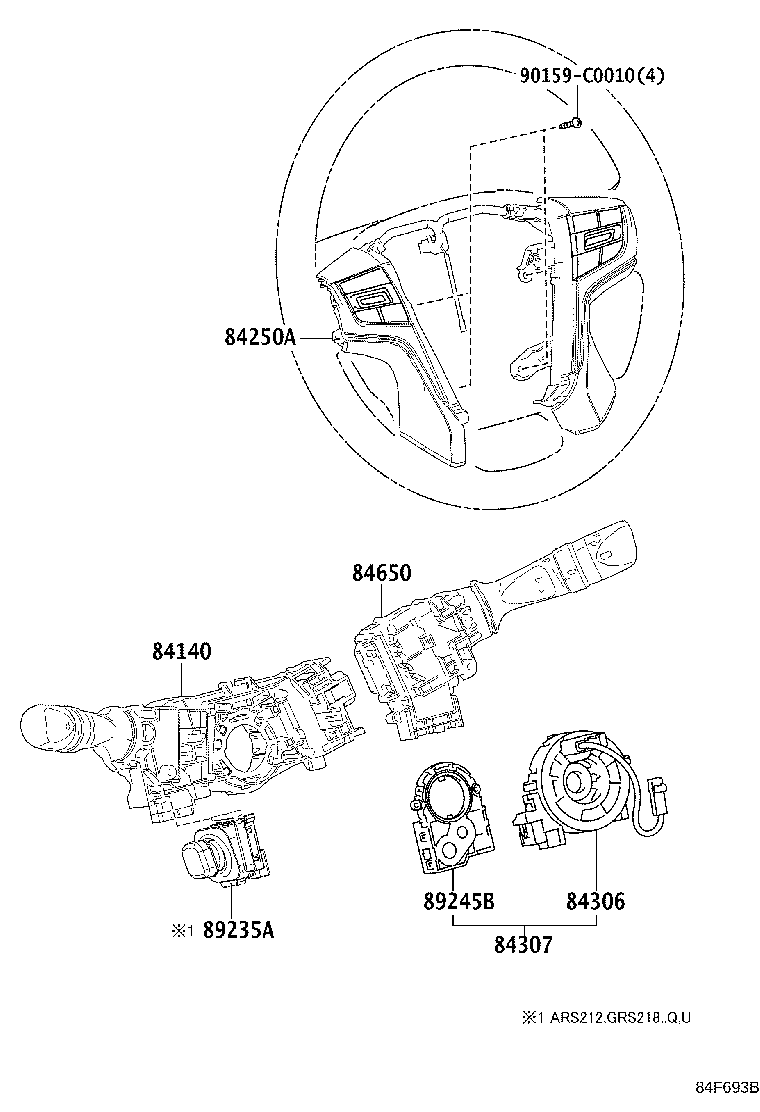

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84140 — Switch Assy, Headlamp Dimmer | ||||
| 84140-0R081 |
Switch Assy, Headlamp Dimmer
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 84140-0R081 |
Switch Assy, Headlamp Dimmer
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 84140-0R081 |
Switch Assy, Headlamp Dimmer
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 84250A — Switch Assy, Steering Pad | ||||
| 84250-0N140-C0 note |
Switch Assy, Steering Pad
2015-01 → 2017-12
ended
|
ARS212,GRS218 B | — | |
| 84250-0N160-C0 note |
Switch Assy, Steering Pad
2015-01 → 2017-12
ended
|
ARS212 Q,U;GRS218 Q,S,U | — | |
| 84250-0N160-C0 note |
Switch Assy, Steering Pad
2015-08 → 2017-12
ended
|
ARS212 S | — | |
| 84250-0N140-C0 note |
Switch Assy, Steering Pad
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 84250-0N161-C0 note |
Switch Assy, Steering Pad
2017-12 → —
|
ARS212 Q,S,U | — | |
| 84250-0N161-C0 note |
Switch Assy, Steering Pad
2017-12 → —
|
ARS212 P | — | |
| 84306 — Cable Sub-assy, Spiral | ||||
| 84308-0N011 |
Cable Sub-assy, Spiral
2015-01 → 2017-11
ended
|
ARS212,GRS218 | — | |
| 84308-0E060 |
Cable Sub-assy, Spiral
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 84308-0E060 |
Cable Sub-assy, Spiral
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 84307 — Cable Sub-assy, Spiral W/Sensor | ||||
| 84307-0N060 |
Cable Sub-assy, Spiral W/Sensor
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 84307-0N060 |
Cable Sub-assy, Spiral W/Sensor
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 84307-0N060 |
Cable Sub-assy, Spiral W/Sensor
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 84650 — Switch Assy, Windshield Wiper | ||||
| 84652-0N040 |
Switch Assy, Windshield Wiper
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,S | — | |
| 84652-0N050 |
Switch Assy, Windshield Wiper
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 84652-0N040 |
Switch Assy, Windshield Wiper
2017-12 → 2020-04
ended
|
ARS212 B,S | — | |
| 84652-0N050 |
Switch Assy, Windshield Wiper
2017-12 → 2020-04
ended
|
ARS212 P,Q,U | — | |
| 89235A — Switch, Tilt & Telescopic | ||||
| 89235-33010 |
Switch, Tilt & Telescopic
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 89235-33010 |
Switch, Tilt & Telescopic
2017-12 → —
|
ARS212 Q,U | — | |
| 89245B — Sensor, Steering | ||||
| 8924B-0N010 |
Sensor, Steering
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 8924B-0N010 |
Sensor, Steering
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 8924B-0N010 |
Sensor, Steering
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
