Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

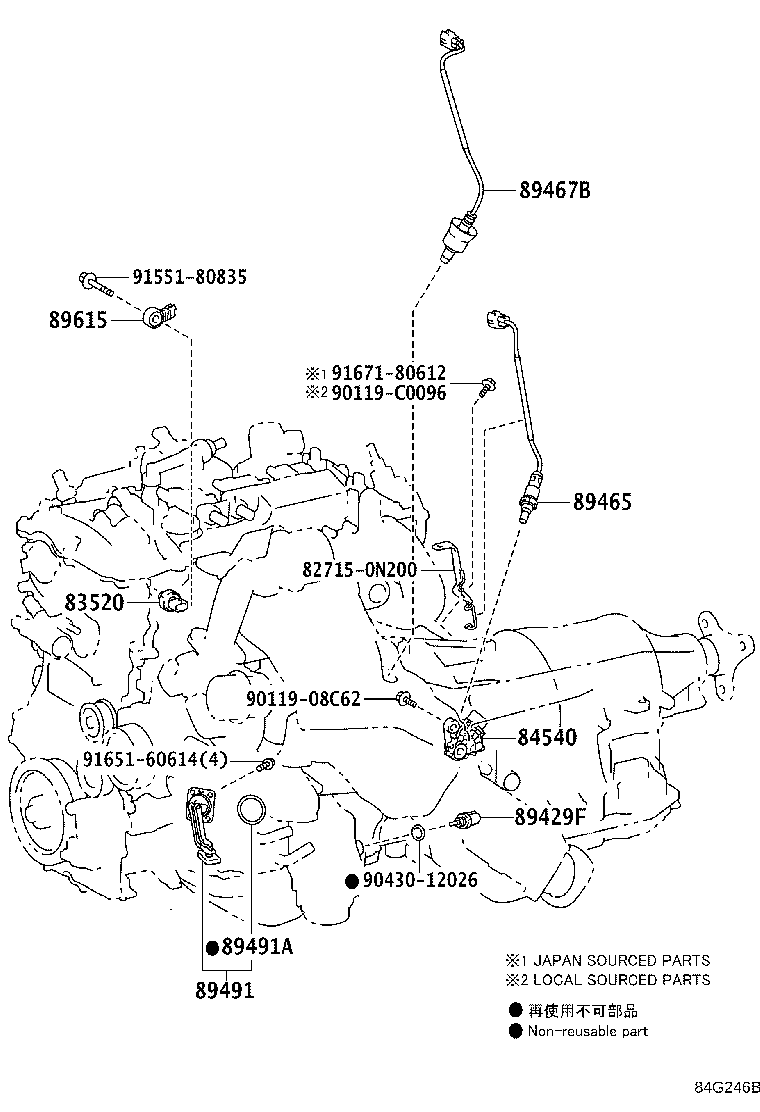

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83520 — Gage Assy,Oil Pressure Sender | ||||
| 83520-60060 |
Gage Assy,Oil Pressure Sender
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 83520-60060 |
Gage Assy,Oil Pressure Sender
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 83520-60060 |
Gage Assy,Oil Pressure Sender
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 84540 — Switch Assy, Neutral Start | ||||
| 84540-04010 note |
Switch Assy, Neutral Start
2016-09 → 2017-12
ended
|
GRS218 | — | |
| 84540-71010 |
Switch Assy, Neutral Start
2015-01 → 2016-09
ended
|
GRS218 | — | |
| 84540-71010 |
Switch Assy, Neutral Start
2015-01 → 2017-12
ended
|
ARS212 | — | |
| 84540-71010 note |
Switch Assy, Neutral Start
2016-09 → 2017-12
ended
|
GRS218 | — | |
| 84540-71010 |
Switch Assy, Neutral Start
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 84540-71010 |
Switch Assy, Neutral Start
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 89429F — Sensor, Temperature | ||||
| 89429-12010 |
Sensor, Temperature
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 89429-12010 |
Sensor, Temperature
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 89429-12010 |
Sensor, Temperature
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 89465 — Sensor, Oxygen | ||||
| 89465-0N060 |
Sensor, Oxygen
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 89465-0P020 |
Sensor, Oxygen
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 89465-0N060 |
Sensor, Oxygen
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 89465-0N060 |
Sensor, Oxygen
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 89467B — Sensor, Air Fuel Ratio | ||||
| 89467-0N010 |
Sensor, Air Fuel Ratio
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 89467-0P010 |
Sensor, Air Fuel Ratio
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 89467-0N010 |
Sensor, Air Fuel Ratio
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 89467-0N010 |
Sensor, Air Fuel Ratio
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 89491 — Sensor, Engine Oil Level | ||||
| 89491-30061 |
Sensor, Engine Oil Level
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 89491-30080 |
Sensor, Engine Oil Level
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 89491-30080 |
Sensor, Engine Oil Level
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 89491-30080 |
Sensor, Engine Oil Level
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 89491A — Gasket, Engine Oil Level Sensor | ||||
| 89493-60010 |
Gasket, Engine Oil Level Sensor
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 89493-60010 |
Gasket, Engine Oil Level Sensor
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 89493-60010 |
Gasket, Engine Oil Level Sensor
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 89615 — Sensor, Knock Control | ||||
| 89615-20090 |
Sensor, Knock Control
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 89615-20090 |
Sensor, Knock Control
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 89615-20090 |
Sensor, Knock Control
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 89615-20090 |
Sensor, Knock Control
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
