Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

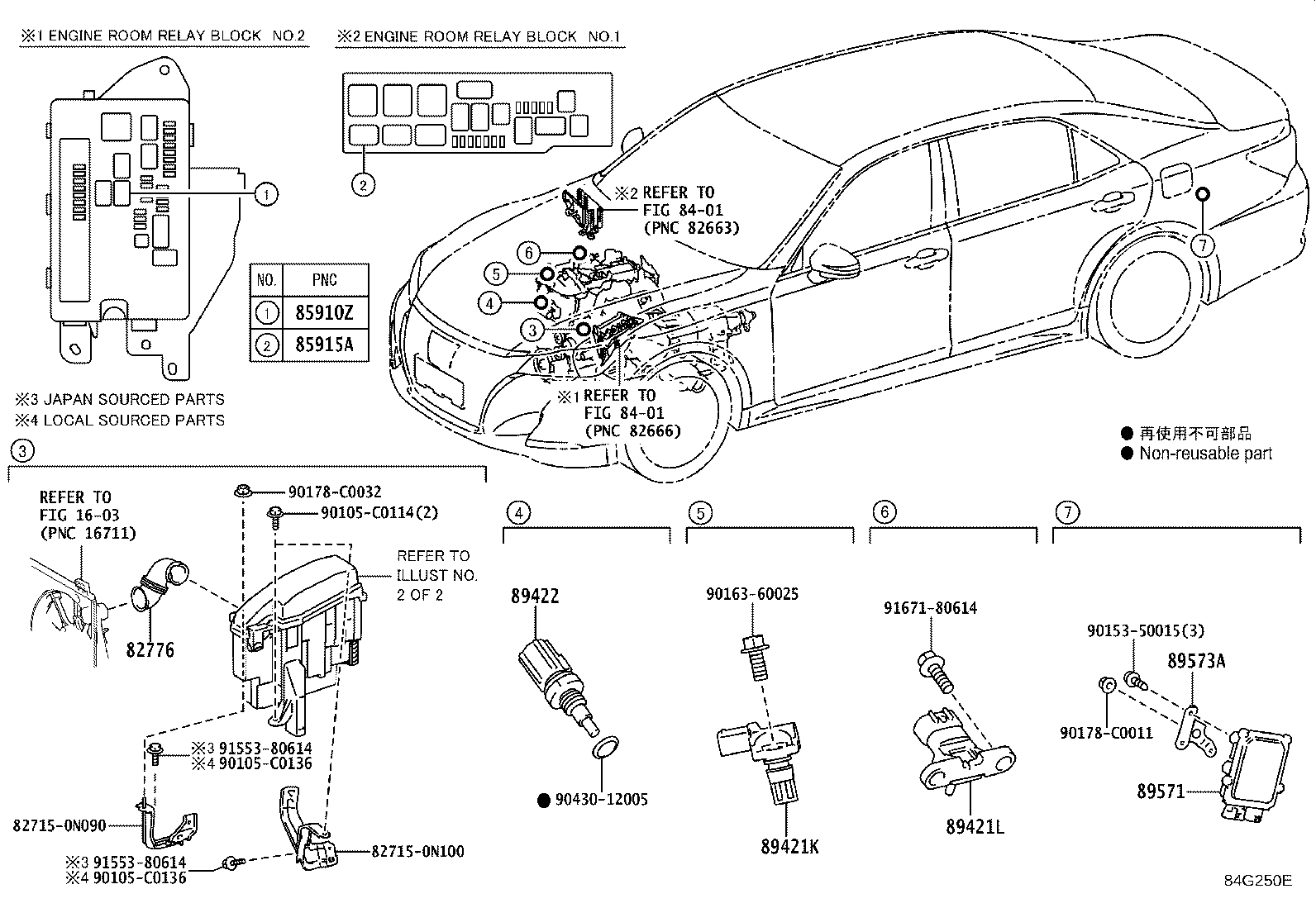

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82776 — Duct, Engine Room Ecu Outlet | ||||
| 82776-0N020 |
Duct, Engine Room Ecu Outlet
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 82776-30130 |
Duct, Engine Room Ecu Outlet
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 82776-0N020 |
Duct, Engine Room Ecu Outlet
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 82776-0N020 |
Duct, Engine Room Ecu Outlet
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 85910Z — Relay, Injection (FOR EFI) | ||||
| 90987-T2005 |
Relay, Injection (FOR EFI)
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 90987-T2005 |
Relay, Injection (FOR EFI)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90987-T2005 |
Relay, Injection (FOR EFI)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 85915A — Relay, Main | ||||
| 90987-T2005 |
Relay, Main
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90987-T2005 |
Relay, Main
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90987-T2005 |
Relay, Main
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 89421K — Sensor, Turbo Pressure, NO.1 | ||||
| 89421-78010 |
Sensor, Turbo Pressure, NO.1
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 89421-78010 |
Sensor, Turbo Pressure, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 89421-78010 |
Sensor, Turbo Pressure, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 89421L — Sensor, Turbo Pressure, NO.2 | ||||
| 89421-78020 |
Sensor, Turbo Pressure, NO.2
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 89421-78020 |
Sensor, Turbo Pressure, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 89421-78020 |
Sensor, Turbo Pressure, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 89422 — Sensor, Water Temperature (FOR E.F.I.) | ||||
| 89422-0D010 |
Sensor, Water Temperature (FOR E.F.I.)
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 89571 — Computer, Fuel Pump Control | ||||
| 89571-58010 |
Computer, Fuel Pump Control
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 89571-58010 |
Computer, Fuel Pump Control
2017-12 → 2018-07
ended
|
ARS212 | — | |
| 89571-58020 |
Computer, Fuel Pump Control
2018-08 → 2019-10
ended
|
ARS212 B | — | |
| 89571-58020 |
Computer, Fuel Pump Control
2018-08 → —
|
ARS212 P,Q,S,U | — | |
| 89573A — Bracket, Fuel Pump Control Computer, NO.2 | ||||
| 89573-30110 |
Bracket, Fuel Pump Control Computer, NO.2
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 89573-30110 |
Bracket, Fuel Pump Control Computer, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 89573-30110 |
Bracket, Fuel Pump Control Computer, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
