Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

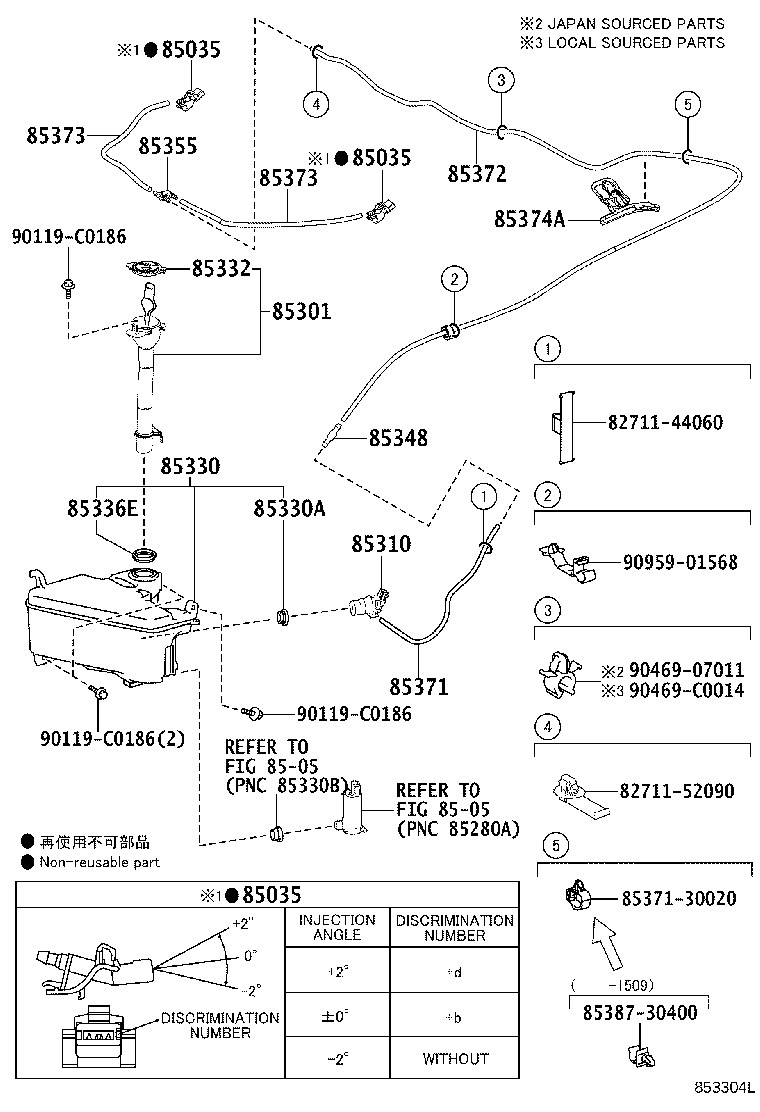

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85035 — Nozzle Sub-assy, Washer | ||||
| 85381-30220 note |
Nozzle Sub-assy, Washer
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85381-30230 note |
Nozzle Sub-assy, Washer
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85381-30240 note |
Nozzle Sub-assy, Washer
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85381-30220 note |
Nozzle Sub-assy, Washer
2017-12 → —
|
ARS212 | — | |
| 85381-30230 note |
Nozzle Sub-assy, Washer
2017-12 → —
|
ARS212 | — | |
| 85381-30240 note |
Nozzle Sub-assy, Washer
2017-12 → —
|
ARS212 | — | |
| 85301 — Inlet Sub-assy, Washer | ||||
| 85319-0N020 |
Inlet Sub-assy, Washer
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85319-0N020 |
Inlet Sub-assy, Washer
2017-12 → —
|
ARS212 | — | |
| 85310 — Motor And Pump Assy, Windshield Washer | ||||
| 85330-21010 |
Motor And Pump Assy, Windshield Washer
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85330-21010 |
Motor And Pump Assy, Windshield Washer
2017-12 → —
|
ARS212 | — | |
| 85330 — Jar Assy, Windshield Washer | ||||
| 85315-0N020 |
Jar Assy, Windshield Washer
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85315-0N020 |
Jar Assy, Windshield Washer
2017-12 → —
|
ARS212 | — | |
| 85330A — Bush, Windshield Washer Jar | ||||
| 85336-60300 |
Bush, Windshield Washer Jar
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85336-60300 |
Bush, Windshield Washer Jar
2017-12 → —
|
ARS212 | — | |
| 85332 — Cap, Windshield Washer Jar | ||||
| 85316-0N020 |
Cap, Windshield Washer Jar
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85316-0N020 |
Cap, Windshield Washer Jar
2017-12 → —
|
ARS212 | — | |
| 85336E — Packing, Windshield Washer Inlet Hose | ||||
| 85336-30160 |
Packing, Windshield Washer Inlet Hose
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85336-30160 |
Packing, Windshield Washer Inlet Hose
2017-12 → —
|
ARS212 | — | |
| 85348 — Joint, Windshield Washer Hose, NO.1 | ||||
| 85349-89122 |
Joint, Windshield Washer Hose, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85349-89122 |
Joint, Windshield Washer Hose, NO.1
2017-12 → —
|
ARS212 | — | |
| 85355 — Valve, Windshield Washer Hose | ||||
| 85321-28020 |
Valve, Windshield Washer Hose
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85321-28020 |
Valve, Windshield Washer Hose
2017-12 → —
|
ARS212 | — | |
| 85371 — Hose, Windshield Washer (FROM MOTOR TO JOINT) | ||||
| 90068-33249 note |
Hose, Windshield Washer (FROM MOTOR TO JOINT)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90068-33249 note |
Hose, Windshield Washer (FROM MOTOR TO JOINT)
2017-12 → —
|
ARS212 | — | |
| 85372 — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1 | ||||
| 90068-33283 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
2015-03 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90446-07001 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
2015-01 → 2015-03
ended
|
GRS218 | — | |
| 90068-33283 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
2017-12 → —
|
ARS212 | — | |
| 85373 — Hose, Windshield Washer (FROM JOINT TO NOZZLE) | ||||
| 90099-62076 note |
Hose, Windshield Washer (FROM JOINT TO NOZZLE)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90099-62076 note |
Hose, Windshield Washer (FROM JOINT TO NOZZLE)
2017-12 → —
|
ARS212 | — | |
| 85374A — Protector, Washer Hose | ||||
| 85372-0N010 |
Protector, Washer Hose
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85372-0N010 |
Protector, Washer Hose
2017-12 → —
|
ARS212 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
