Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

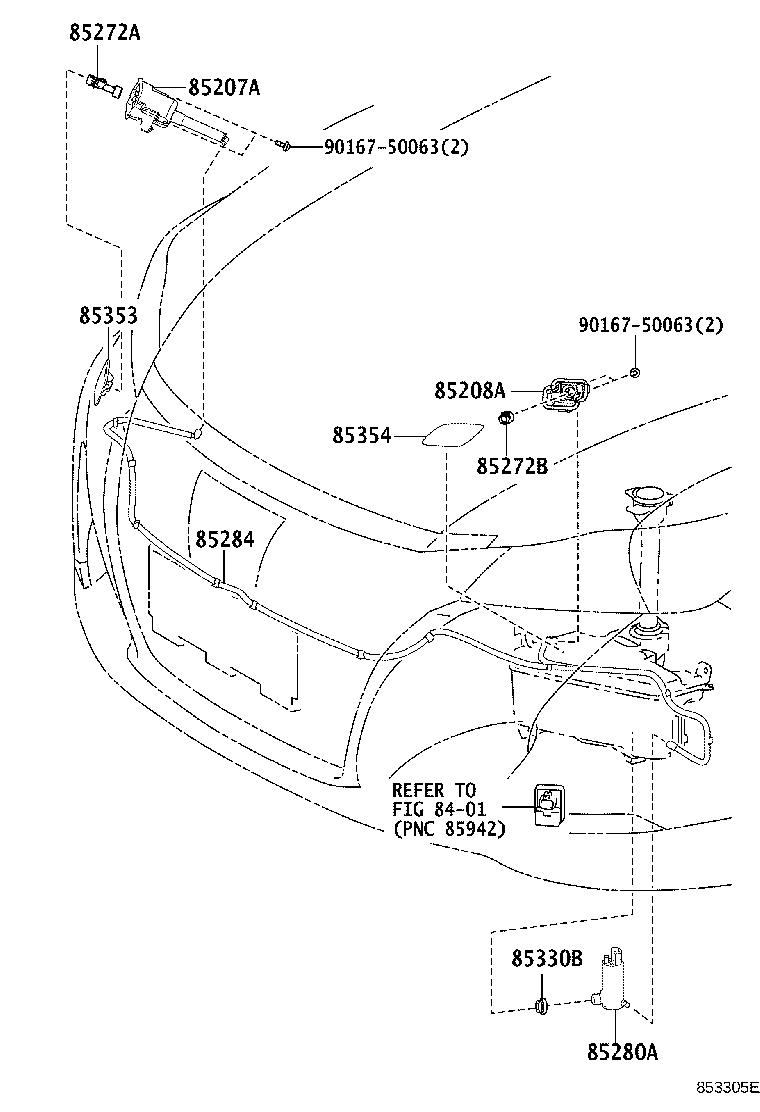

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85207A — Actuator Sub-assy, Headlamp Washer, RH | ||||
| 85207-0N050 |
Actuator Sub-assy, Headlamp Washer, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85207-0N050 |
Actuator Sub-assy, Headlamp Washer, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 85207-0N050 |
Actuator Sub-assy, Headlamp Washer, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 85208A — Actuator Sub-assy, Headlamp Washer, LH | ||||
| 85208-0N050 |
Actuator Sub-assy, Headlamp Washer, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85208-0N050 |
Actuator Sub-assy, Headlamp Washer, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 85208-0N050 |
Actuator Sub-assy, Headlamp Washer, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 85272A — Clamp, Headlamp Cleaner, NO.1 | ||||
| 85272-0N010 |
Clamp, Headlamp Cleaner, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85272-0N010 |
Clamp, Headlamp Cleaner, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 85272-0N010 |
Clamp, Headlamp Cleaner, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 85272B — Clamp, Headlamp Cleaner, NO.2 | ||||
| 85273-0N010 |
Clamp, Headlamp Cleaner, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85273-0N010 |
Clamp, Headlamp Cleaner, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 85273-0N010 |
Clamp, Headlamp Cleaner, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 85280A — Motor And Pump Assy, Headlamp Cleaner | ||||
| 85280-05050 |
Motor And Pump Assy, Headlamp Cleaner
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85280-05050 |
Motor And Pump Assy, Headlamp Cleaner
2017-12 → —
|
ARS212 | — | |
| 85284 — Hose Assy, Headlamp Cleaner Washer | ||||
| 85270-0N010 |
Hose Assy, Headlamp Cleaner Washer
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85270-0N010 |
Hose Assy, Headlamp Cleaner Washer
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 85270-0N010 |
Hose Assy, Headlamp Cleaner Washer
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 85330B — Bush, Headlamp Cleaner Washer Jar | ||||
| 90069-20005 |
Bush, Headlamp Cleaner Washer Jar
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90069-20005 |
Bush, Headlamp Cleaner Washer Jar
2017-12 → —
|
ARS212 | — | |
| 85353 — Cover, Headlamp Washer, RH | ||||
| 85353-0N020-A0 note |
Cover, Headlamp Washer, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85353-0N020-B0 note |
Cover, Headlamp Washer, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85353-0N020-B1 note |
Cover, Headlamp Washer, RH
2015-01 → 2016-10
ended
|
ARS212,GRS218 | — | |
| 85353-0N020-C0 note |
Cover, Headlamp Washer, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85353-0N020-D0 note |
Cover, Headlamp Washer, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85353-0N020-E1 note |
Cover, Headlamp Washer, RH
2015-08 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85353-0N020-J1 note |
Cover, Headlamp Washer, RH
2016-10 → 2017-09
ended
|
ARS212,GRS218 | — | |
| 85353-0N020-A0 note |
Cover, Headlamp Washer, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 85353-0N020-A0 note |
Cover, Headlamp Washer, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 85353-0N020-B0 note |
Cover, Headlamp Washer, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 85353-0N020-B0 note |
Cover, Headlamp Washer, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 85353-0N020-C0 note |
Cover, Headlamp Washer, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 85353-0N020-C0 note |
Cover, Headlamp Washer, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 85353-0N020-D1 note |
Cover, Headlamp Washer, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 85353-0N020-D1 note |
Cover, Headlamp Washer, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 85353-0N020-E1 note |
Cover, Headlamp Washer, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 85353-0N020-E1 note |
Cover, Headlamp Washer, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 85353-0N020-J0 note |
Cover, Headlamp Washer, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 85353-0N020-J0 note |
Cover, Headlamp Washer, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 85354 — Cover, Headlamp Washer, LH | ||||
| 85354-0N020-A0 note |
Cover, Headlamp Washer, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85354-0N020-B0 note |
Cover, Headlamp Washer, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85354-0N020-B1 note |
Cover, Headlamp Washer, LH
2015-01 → 2016-10
ended
|
ARS212,GRS218 | — | |
| 85354-0N020-C0 note |
Cover, Headlamp Washer, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85354-0N020-D0 note |
Cover, Headlamp Washer, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85354-0N020-E1 note |
Cover, Headlamp Washer, LH
2015-08 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 85354-0N020-J1 note |
Cover, Headlamp Washer, LH
2016-10 → 2017-09
ended
|
ARS212,GRS218 | — | |
| 85354-0N020-A0 note |
Cover, Headlamp Washer, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 85354-0N020-A0 note |
Cover, Headlamp Washer, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 85354-0N020-B0 note |
Cover, Headlamp Washer, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 85354-0N020-B0 note |
Cover, Headlamp Washer, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 85354-0N020-C0 note |
Cover, Headlamp Washer, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 85354-0N020-C0 note |
Cover, Headlamp Washer, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 85354-0N020-D1 note |
Cover, Headlamp Washer, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 85354-0N020-D1 note |
Cover, Headlamp Washer, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 85354-0N020-E1 note |
Cover, Headlamp Washer, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 85354-0N020-E1 note |
Cover, Headlamp Washer, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 85354-0N020-J0 note |
Cover, Headlamp Washer, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 85354-0N020-J0 note |
Cover, Headlamp Washer, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
