Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

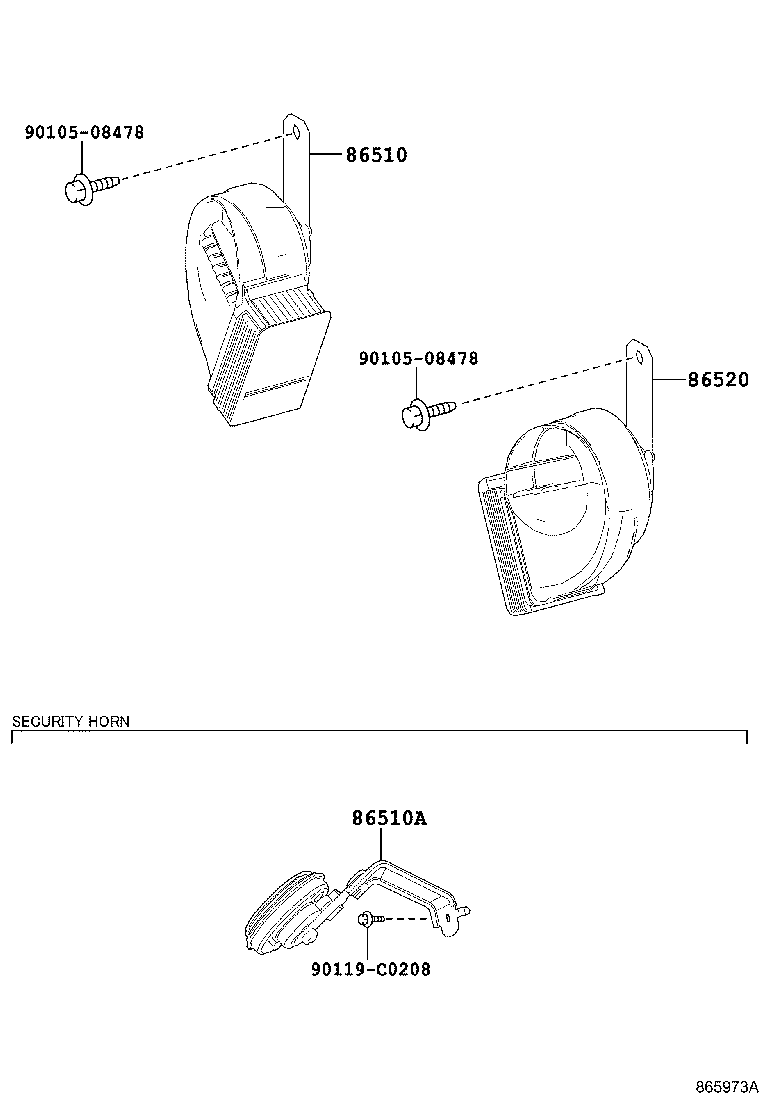

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86510 — Horn Assy, High Pitched | ||||
| 86510-06160 |
Horn Assy, High Pitched
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 86510-06160 |
Horn Assy, High Pitched
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 86510-06160 |
Horn Assy, High Pitched
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 86510A — Horn Assy, Security | ||||
| 86560-0P010 |
Horn Assy, Security
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 86560-0P010 |
Horn Assy, Security
2017-12 → —
|
ARS212 | — | |
| 86520 — Horn Assy, Low Pitched | ||||
| 86520-06150 |
Horn Assy, Low Pitched
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 86520-06150 |
Horn Assy, Low Pitched
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 86520-06150 |
Horn Assy, Low Pitched
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
