Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

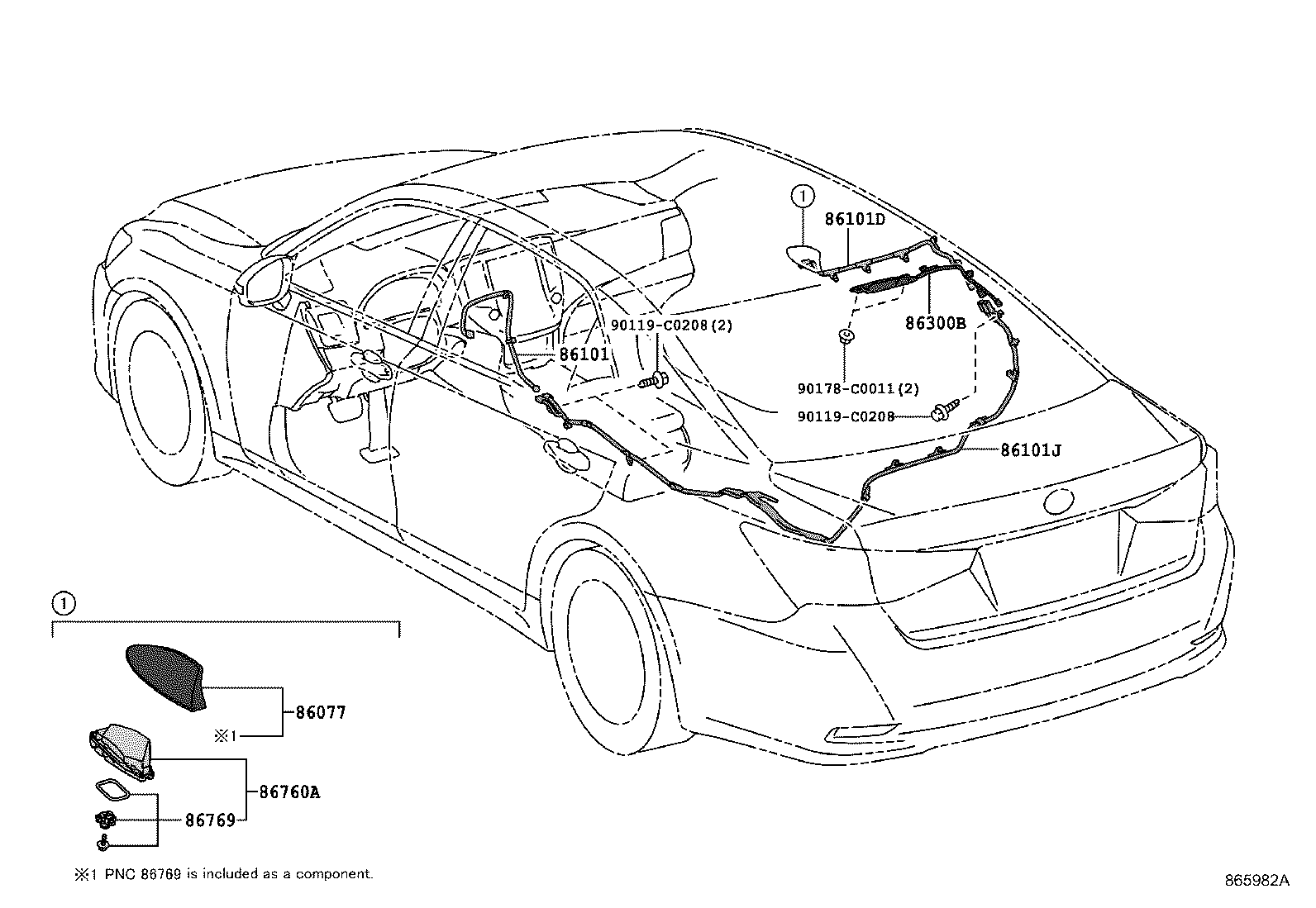

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86077 — Cover Kit, Antenna | ||||
| 86077-30010-A1 note |
Cover Kit, Antenna
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 86077-30010-B0 note |
Cover Kit, Antenna
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 86077-30010-B1 note |
Cover Kit, Antenna
2015-01 → 2016-10
ended
|
ARS212,GRS218 U | — | |
| 86077-30010-C0 note |
Cover Kit, Antenna
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 86077-30010-D0 note |
Cover Kit, Antenna
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 86077-30010-E0 note |
Cover Kit, Antenna
2015-08 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 86077-30010-J6 note |
Cover Kit, Antenna
2016-10 → 2017-09
ended
|
ARS212,GRS218 U | — | |
| 86077-30010-A1 note |
Cover Kit, Antenna
2017-12 → —
|
ARS212 U | — | |
| 86077-30010-B0 note |
Cover Kit, Antenna
2017-12 → —
|
ARS212 U | — | |
| 86077-30010-C0 note |
Cover Kit, Antenna
2017-12 → —
|
ARS212 U | — | |
| 86077-30010-D6 note |
Cover Kit, Antenna
2017-12 → —
|
ARS212 U | — | |
| 86077-30010-E0 note |
Cover Kit, Antenna
2017-12 → —
|
ARS212 U | — | |
| 86077-30010-J4 note |
Cover Kit, Antenna
2017-12 → —
|
ARS212 U | — | |
| 86101 — Cord Sub-assy, Antenna | ||||
| 86101-0N150 |
Cord Sub-assy, Antenna
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 86101-0N150 |
Cord Sub-assy, Antenna
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 86101-0N150 |
Cord Sub-assy, Antenna
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 86101D — Cord Sub-assy, Antenna, NO.3 | ||||
| 86705-0N080 |
Cord Sub-assy, Antenna, NO.3
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 86705-0N080 |
Cord Sub-assy, Antenna, NO.3
2017-12 → —
|
ARS212 U | — | |
| 86101J — Cord Sub-assy, Antenna, NO.2 | ||||
| 86101-0N130 |
Cord Sub-assy, Antenna, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 86101-0N140 |
Cord Sub-assy, Antenna, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,Q,S | — | |
| 86101-0N130 |
Cord Sub-assy, Antenna, NO.2
2017-12 → —
|
ARS212 U | — | |
| 86101-0N140 |
Cord Sub-assy, Antenna, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 86101-0N140 |
Cord Sub-assy, Antenna, NO.2
2017-12 → —
|
ARS212 P,Q,S | — | |
| 86300B — Antenna Assy, Amplifier, NO.1 | ||||
| 86300-30B10 |
Antenna Assy, Amplifier, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 86300-30B10 |
Antenna Assy, Amplifier, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 86300-30B10 |
Antenna Assy, Amplifier, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 86760A — Antenna Assy, Telephone | ||||
| 86760-0N020 |
Antenna Assy, Telephone
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 86760-0N020 |
Antenna Assy, Telephone
2017-12 → —
|
ARS212 U | — | |
| 86769 — Housing, Roof Antenna | ||||
| 86769-0N010 |
Housing, Roof Antenna
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 86769-0N010 |
Housing, Roof Antenna
2017-12 → —
|
ARS212 U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
