Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

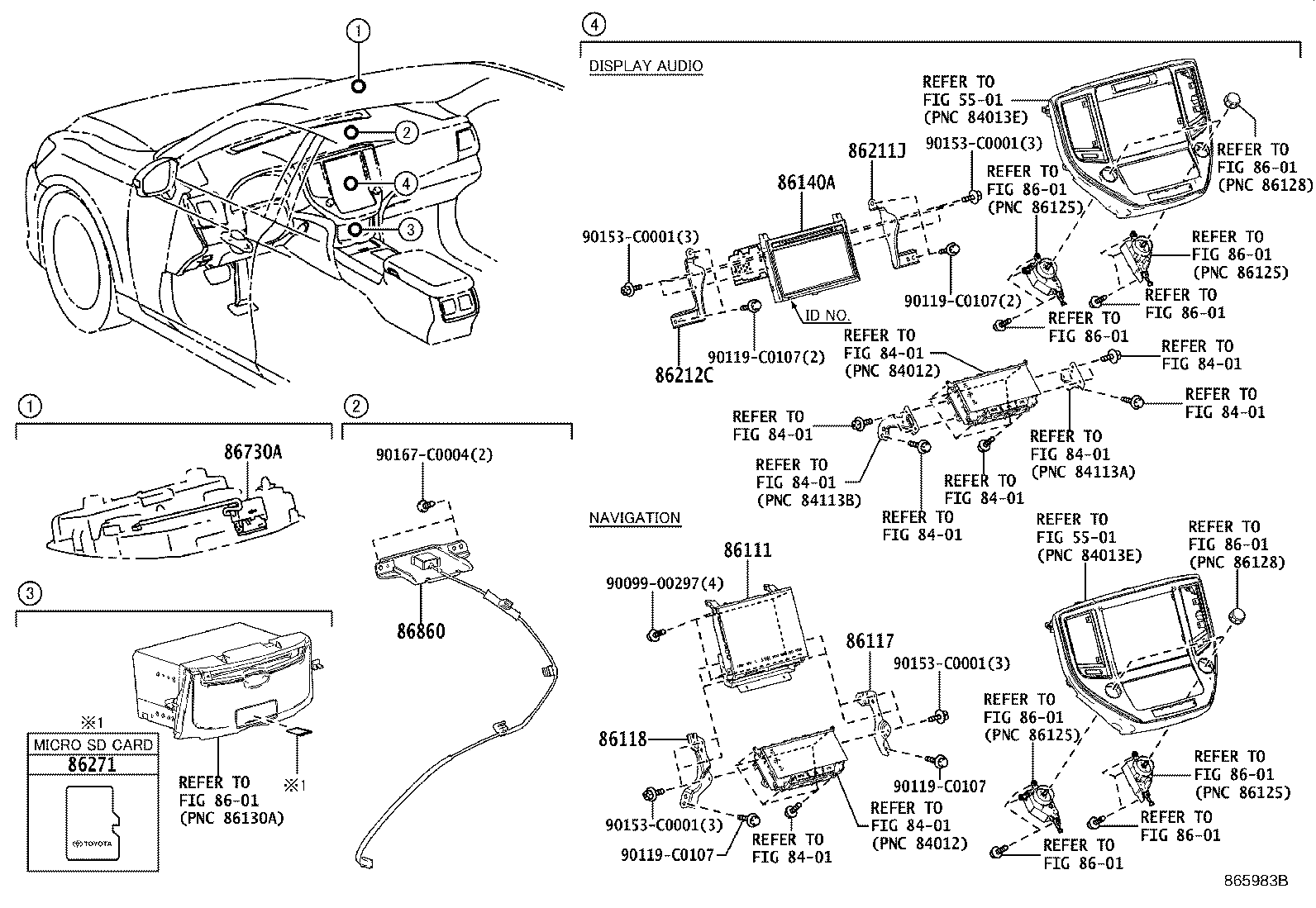

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86111 — Multi-display | ||||
| 86111-0N020 note |
Multi-display
2015-01 → 2015-10
ended
|
ARS212,GRS218 Q,U | — | |
| 86111-0N021 note |
Multi-display
2015-10 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 86111-0N021 note |
Multi-display
2017-12 → —
|
ARS212 Q,U | — | |
| 86117 — Bracket, Multi-display Controller, A | ||||
| 86117-0N010 |
Bracket, Multi-display Controller, A
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 86117-0N010 |
Bracket, Multi-display Controller, A
2017-12 → —
|
ARS212 Q,U | — | |
| 86118 — Bracket, Multi-display Controler, B | ||||
| 86118-0N010 |
Bracket, Multi-display Controler, B
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 86118-0N010 |
Bracket, Multi-display Controler, B
2017-12 → —
|
ARS212 Q,U | — | |
| 86140A — Receiver Assy, Radio & Display | ||||
| 86140-0N010 note |
Receiver Assy, Radio & Display
2015-01 → 2015-10
ended
|
ARS212,GRS218 B,S | — | |
| 86140-0N011 note |
Receiver Assy, Radio & Display
2015-10 → 2017-12
ended
|
ARS212,GRS218 B,S | — | |
| 86140-0N020 note |
Receiver Assy, Radio & Display
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 86140-0N020 note |
Receiver Assy, Radio & Display
2017-12 → —
|
ARS212 P,S | — | |
| 86211J — Bracket, Radio Receiver, NO.1 | ||||
| 86211-0N030 |
Bracket, Radio Receiver, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,S | — | |
| 86211-0N030 |
Bracket, Radio Receiver, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 86211-0N030 |
Bracket, Radio Receiver, NO.1
2017-12 → —
|
ARS212 P,S | — | |
| 86212C — Bracket, Radio Receiver, NO.2 | ||||
| 86212-0N030 |
Bracket, Radio Receiver, NO.2
2015-01 → 2017-11
ended
|
ARS212,GRS218 B,S | — | |
| 86212-0N031 |
Bracket, Radio Receiver, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 86212-0N031 |
Bracket, Radio Receiver, NO.2
2017-12 → —
|
ARS212 P,S | — | |
| 86271 — Disc, Disc Player | ||||
| 86271-0N070 |
Disc, Disc Player
2015-01 → 2015-04
ended
|
GRS218 Q,U | — | |
| 86271-0N071 |
Disc, Disc Player
2015-05 → 2015-10
ended
|
ARS212,GRS218 Q,U | — | |
| 86271-0N072 |
Disc, Disc Player
2015-10 → 2016-05
ended
|
ARS212,GRS218 Q,U | — | |
| 86271-0N073 |
Disc, Disc Player
2016-05 → 2016-10
ended
|
ARS212,GRS218 Q,U | — | |
| 86271-0N074 |
Disc, Disc Player
2016-10 → 2017-05
ended
|
ARS212,GRS218 Q,U | — | |
| 86845-0N010 |
Disc, Disc Player
2017-05 → 2017-09
ended
|
ARS212,GRS218 Q,U | — | |
| 86845-0N011 |
Disc, Disc Player
2017-10 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 86845-0N011 |
Disc, Disc Player
2017-12 → 2018-04
ended
|
ARS212 Q,U | — | |
| 86845-0N012 |
Disc, Disc Player
2018-05 → 2018-09
ended
|
ARS212 Q,U | — | |
| 86845-0N013 |
Disc, Disc Player
2018-10 → 2019-04
ended
|
ARS212 Q,U | — | |
| 86845-0N014 |
Disc, Disc Player
2019-05 → 2019-09
ended
|
ARS212 Q,U | — | |
| 86845-0N015 |
Disc, Disc Player
2019-10 → 2020-04
ended
|
ARS212 Q,U | — | |
| 86730A — Microphone Assy, Telephone | ||||
| 86730-0N010 |
Microphone Assy, Telephone
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 86730-0N010 |
Microphone Assy, Telephone
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 86730-0N010 |
Microphone Assy, Telephone
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 86860 — Antenna Assy, Navigation | ||||
| 86860-0N030 |
Antenna Assy, Navigation
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 86860-0N030 |
Antenna Assy, Navigation
2017-12 → —
|
ARS212 Q,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
