Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

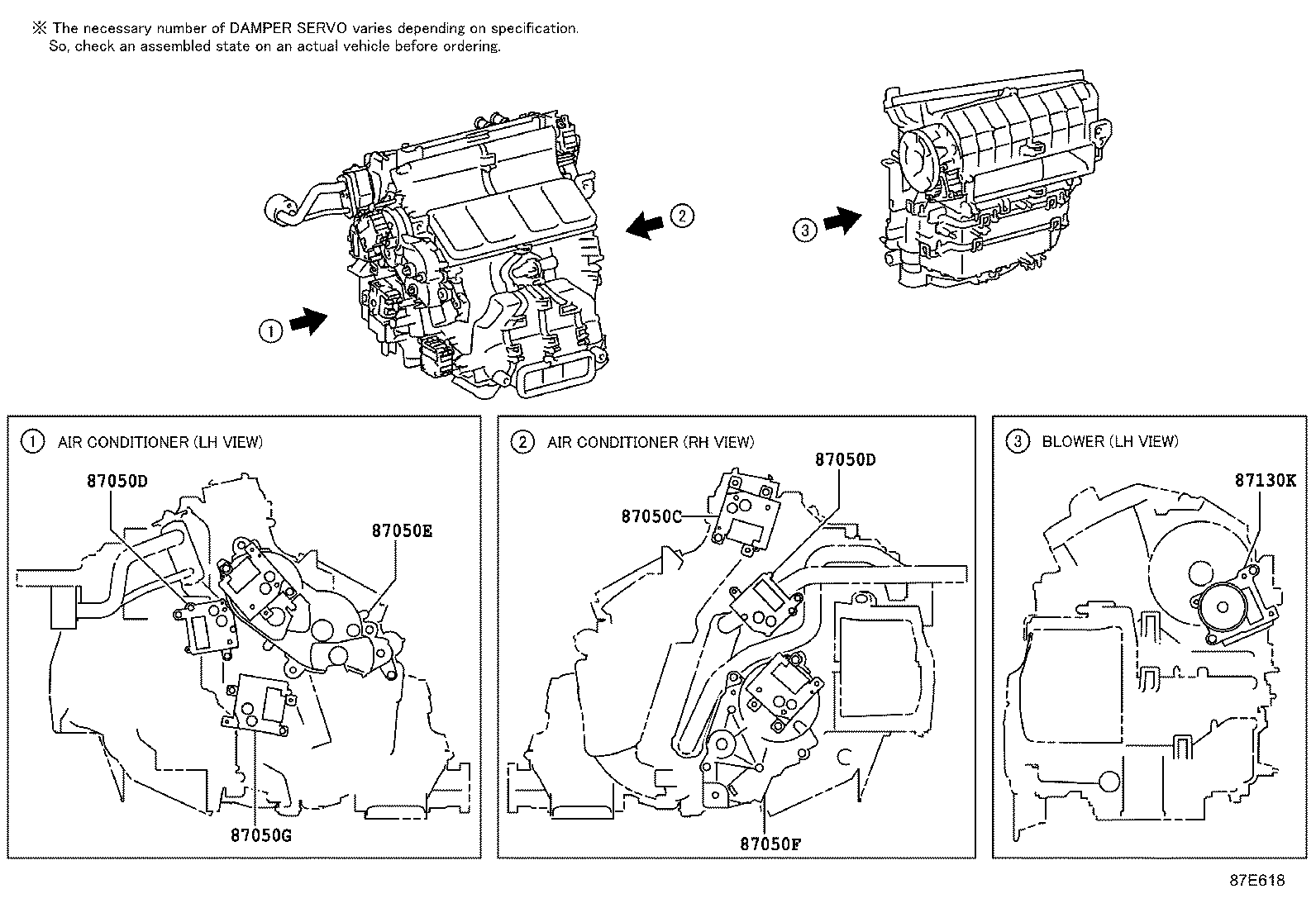

| 87050C — Damper Servo Sub-assy, Air Conditioner Radiator, NO.1 | ||||
| 87106-30500 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 87106-30500 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 87106-30500 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 87050D — Damper Servo Sub-assy, Air Conditioner Radiator, NO.2 | ||||
| 87106-30610 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
2015-01 → 2017-11
ended
|
ARS212,GRS218 | — | |
| 87106-30530 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 87106-30530 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 87050E — Damper Servo Sub-assy, Air Conditioner Radiator, NO.3 | ||||
| 87106-30540 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.3
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,Q,S | — | |
| 87106-30590 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.3
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 87106-30540 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.3
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 87106-30540 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.3
2017-12 → —
|
ARS212 P,Q,S | — | |
| 87106-30590 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.3
2017-12 → —
|
ARS212 U | — | |
| 87050F — Damper Servo Sub-assy, Air Conditioner Radiator, NO.4 | ||||
| 87106-30550 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.4
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,Q,S | — | |
| 87106-30560 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.4
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 87106-30550 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.4
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 87106-30550 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.4
2017-12 → —
|
ARS212 P,Q,S | — | |
| 87106-30560 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.4
2017-12 → —
|
ARS212 U | — | |
| 87050G — Damper Servo Sub-assy, Air Conditioner Radiator, NO.5 | ||||
| 87106-30570 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.5
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 87106-30570 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.5
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 87106-30570 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.5
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 87130K — Damper Servo Sub-assy, Blower, NO.1 | ||||
| 87106-30510 |
Damper Servo Sub-assy, Blower, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 87106-30510 |
Damper Servo Sub-assy, Blower, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 87106-30510 |
Damper Servo Sub-assy, Blower, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
