Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

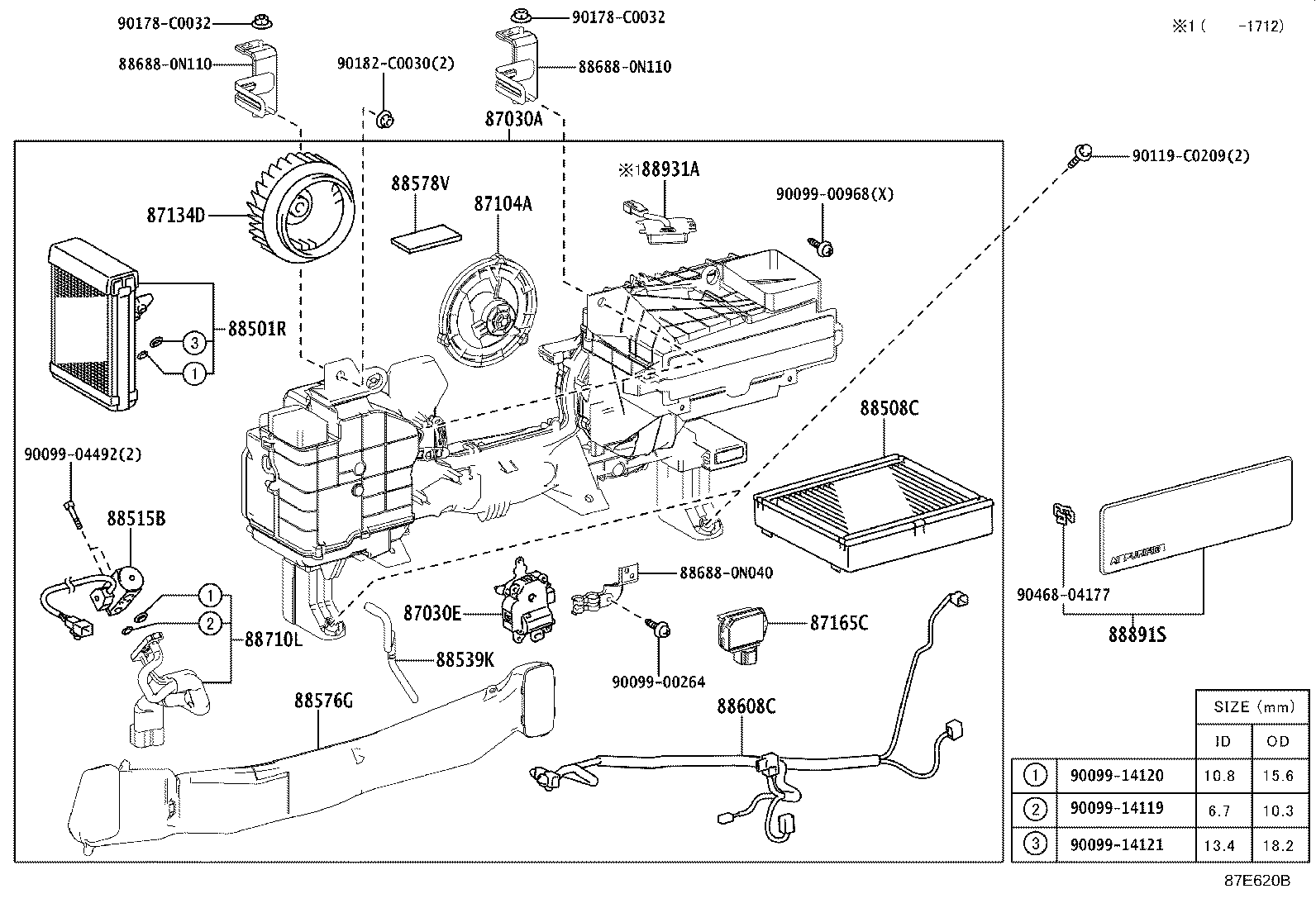

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87030A — Unit Assy, Cooling, Rear | ||||
| 87030-0N040 |
Unit Assy, Cooling, Rear
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 87030-0N050 |
Unit Assy, Cooling, Rear
2017-12 → —
|
ARS212 U | — | |
| 87030E — Damper Servo Sub-assy, Rear Cooling Unit, NO.1 | ||||
| 87106-0N090 |
Damper Servo Sub-assy, Rear Cooling Unit, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 87106-0N090 |
Damper Servo Sub-assy, Rear Cooling Unit, NO.1
2017-12 → —
|
ARS212 U | — | |
| 87104A — Motor Sub-assy, Blower | ||||
| 87104-0N010 |
Motor Sub-assy, Blower
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 87104-0N010 |
Motor Sub-assy, Blower
2017-12 → —
|
ARS212 U | — | |
| 87134D — Fan, Blower, NO.2 | ||||
| 87134-0N010 |
Fan, Blower, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 87134-0N010 |
Fan, Blower, NO.2
2017-12 → —
|
ARS212 U | — | |
| 87165C — Control, Blower Motor | ||||
| 87165-0N010 |
Control, Blower Motor
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 87165-0N010 |
Control, Blower Motor
2017-12 → —
|
ARS212 U | — | |
| 88501R — Evaporator Sub-assy (REAR) | ||||
| 88501-0N010 |
Evaporator Sub-assy (REAR)
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 88501-0N010 |
Evaporator Sub-assy (REAR)
2017-12 → —
|
ARS212 U | — | |
| 88508C — Filter Sub-assy, Air | ||||
| 88508-0N030 |
Filter Sub-assy, Air
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 88508-0N030 |
Filter Sub-assy, Air
2017-12 → —
|
ARS212 U | — | |
| 88515B — Valve, Rear Cooling Unit Expansion | ||||
| 88515-0N020 |
Valve, Rear Cooling Unit Expansion
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 88515-0N020 |
Valve, Rear Cooling Unit Expansion
2017-12 → —
|
ARS212 U | — | |
| 88539K — Hose, Drain Cooler | ||||
| 88539-0N010 |
Hose, Drain Cooler
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 88539-0N010 |
Hose, Drain Cooler
2017-12 → —
|
ARS212 U | — | |
| 88576G — Duct, Cooler Air, NO.3 | ||||
| 88576-0N030 |
Duct, Cooler Air, NO.3
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 88576-0N030 |
Duct, Cooler Air, NO.3
2017-12 → —
|
ARS212 U | — | |
| 88578V — Packing, Cooling Unit, NO.3 | ||||
| 88578-30370 |
Packing, Cooling Unit, NO.3
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 88578-30370 |
Packing, Cooling Unit, NO.3
2017-12 → —
|
ARS212 U | — | |
| 88608C — Harness Sub-assy, Wiring Air Indicator, NO.2 | ||||
| 88608-0N050 |
Harness Sub-assy, Wiring Air Indicator, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 88608-0N060 |
Harness Sub-assy, Wiring Air Indicator, NO.2
2017-12 → —
|
ARS212 U | — | |
| 88710L — Tube & Accessory Assy, Air Conditioner, NO.2 | ||||
| 88710-0N080 |
Tube & Accessory Assy, Air Conditioner, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 88710-0N080 |
Tube & Accessory Assy, Air Conditioner, NO.2
2017-12 → —
|
ARS212 U | — | |
| 88891S — Cover, Cooler, NO.1 | ||||
| 88891-0N020-C0 note |
Cover, Cooler, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 88891-0N020-C0 note |
Cover, Cooler, NO.1
2017-12 → —
|
ARS212 U | — | |
| 88931A — Sensor, Smoke | ||||
| 88931-0N010 |
Sensor, Smoke
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
