Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

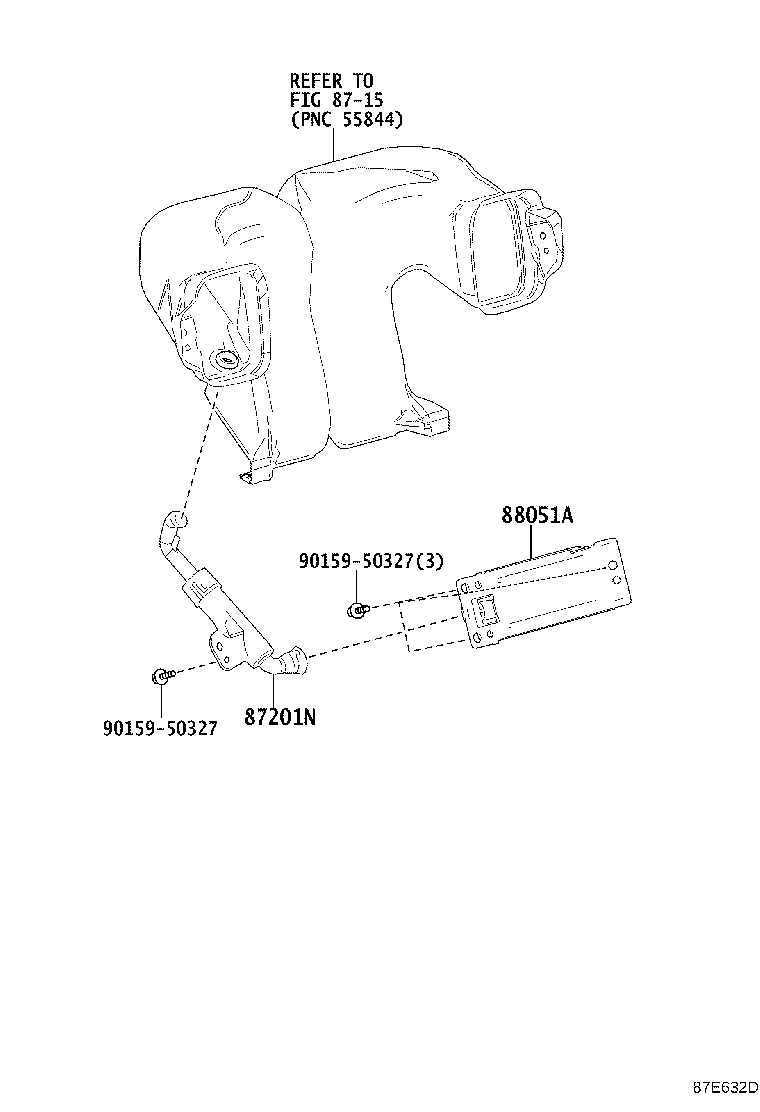

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87201N — Duct Sub-assy, Air | ||||
| 87201-0N010 |
Duct Sub-assy, Air
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 87201-0N010 |
Duct Sub-assy, Air
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 88051A — Generator Sub-assy,Ion | ||||
| 88051-0N010 |
Generator Sub-assy,Ion
2017-02 → 2017-12
ended
|
ARS212,GRS218 Q,S,U | — | |
| 88051-0N010 note |
Generator Sub-assy,Ion
2017-02 → 2017-12
ended
|
GRS218 S | — | |
| 88051-28060 |
Generator Sub-assy,Ion
2015-01 → 2017-02
ended
|
ARS212,GRS218 Q,S,U | — | |
| 88051-28060 note |
Generator Sub-assy,Ion
2015-01 → 2017-02
ended
|
GRS218 S | — | |
| 88051-0N010 |
Generator Sub-assy,Ion
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
