Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

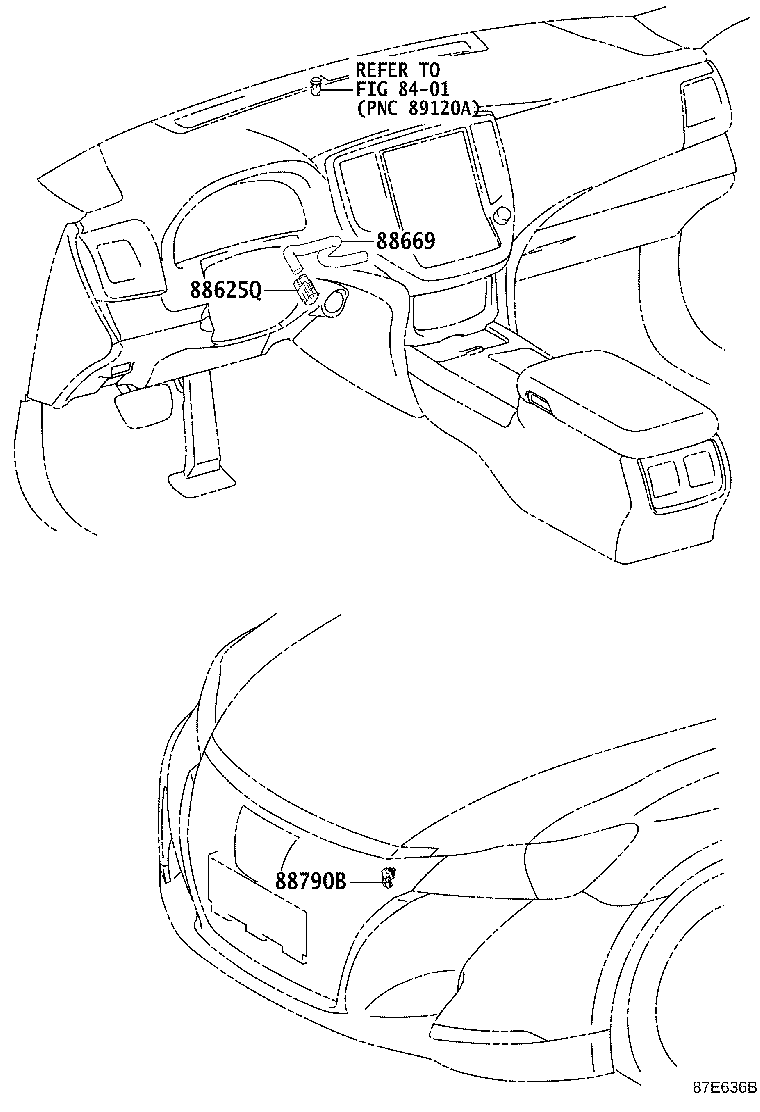

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88625Q — Thermistor, Cooler (ROOM TEMP. SENSOR) | ||||
| 88625-48070 |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 88625-48070 |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 88625-48070 |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 88669 — Hose, Cooler Air | ||||
| 88669-0N020 |
Hose, Cooler Air
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 88669-0N020 |
Hose, Cooler Air
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 88669-0N020 |
Hose, Cooler Air
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 88790B — Thermistor Assy | ||||
| 88790-0D020 |
Thermistor Assy
2015-12 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 88790-22131 |
Thermistor Assy
2015-01 → 2015-12
ended
|
ARS212,GRS218 | — | |
| 88790-0D020 |
Thermistor Assy
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 88790-0D020 |
Thermistor Assy
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
