Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

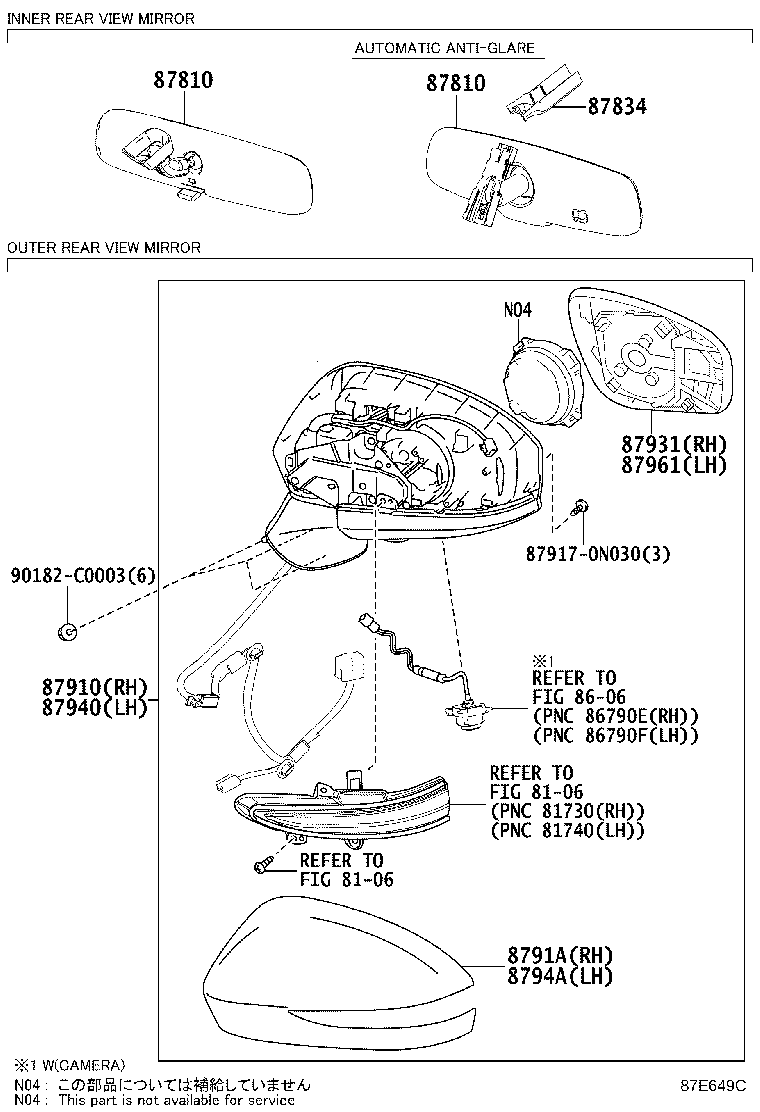

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87810 — Mirror Assy, Inner Rear View | ||||
| 87810-0E110 |
Mirror Assy, Inner Rear View
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,S | — | |
| 87810-0N020 |
Mirror Assy, Inner Rear View
2015-08 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 87810-0WG90 |
Mirror Assy, Inner Rear View
2015-01 → 2015-08
ended
|
GRS218 Q,U | — | |
| 87810-0E110 |
Mirror Assy, Inner Rear View
2017-12 → —
|
ARS212 B,P,S | — | |
| 87810-0N020 |
Mirror Assy, Inner Rear View
2017-12 → —
|
ARS212 Q,U | — | |
| 87834 — Cover, Inner Rear View Mirror Stay Holder | ||||
| 87818-0N010 |
Cover, Inner Rear View Mirror Stay Holder
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 87818-0N010 |
Cover, Inner Rear View Mirror Stay Holder
2017-12 → —
|
ARS212 Q,U | — | |
| 87910 — Mirror Assy, Outer Rear View, RH | ||||
| 87910-0N060-A0 note |
Mirror Assy, Outer Rear View, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,S | — | |
| 87910-0N060-B0 note |
Mirror Assy, Outer Rear View, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,S | — | |
| 87910-0N060-B1 note |
Mirror Assy, Outer Rear View, RH
2015-01 → 2016-10
ended
|
ARS212,GRS218 B,S | — | |
| 87910-0N060-C0 note |
Mirror Assy, Outer Rear View, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,S | — | |
| 87910-0N060-D0 note |
Mirror Assy, Outer Rear View, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,S | — | |
| 87910-0N060-E1 note |
Mirror Assy, Outer Rear View, RH
2015-08 → 2017-12
ended
|
ARS212,GRS218 B,S | — | |
| 87910-0N060-J1 note |
Mirror Assy, Outer Rear View, RH
2016-10 → 2017-09
ended
|
ARS212,GRS218 B,S | — | |
| 87910-0N070-A0 note |
Mirror Assy, Outer Rear View, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 87910-0N070-B0 note |
Mirror Assy, Outer Rear View, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 87910-0N070-B1 note |
Mirror Assy, Outer Rear View, RH
2015-01 → 2016-10
ended
|
ARS212,GRS218 Q,U | — | |
| 87910-0N070-C0 note |
Mirror Assy, Outer Rear View, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 87910-0N070-D0 note |
Mirror Assy, Outer Rear View, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 87910-0N070-E1 note |
Mirror Assy, Outer Rear View, RH
2015-08 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 87910-0N070-J0 note |
Mirror Assy, Outer Rear View, RH
2016-10 → 2017-09
ended
|
ARS212,GRS218 Q,U | — | |
| 87910-0N080-A0 note |
Mirror Assy, Outer Rear View, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 87910-0N080-B0 note |
Mirror Assy, Outer Rear View, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 87910-0N080-B1 note |
Mirror Assy, Outer Rear View, RH
2015-01 → 2016-10
ended
|
ARS212,GRS218 U | — | |
| 87910-0N080-C0 note |
Mirror Assy, Outer Rear View, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 87910-0N080-D0 note |
Mirror Assy, Outer Rear View, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 87910-0N080-E1 note |
Mirror Assy, Outer Rear View, RH
2015-08 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 87910-0N080-J1 note |
Mirror Assy, Outer Rear View, RH
2016-10 → 2017-09
ended
|
ARS212,GRS218 U | — | |
| 87910-0N060-A0 note |
Mirror Assy, Outer Rear View, RH
2017-12 → —
|
ARS212 B,S | — | |
| 87910-0N060-B0 note |
Mirror Assy, Outer Rear View, RH
2017-12 → —
|
ARS212 B,S | — | |
| 87910-0N060-C0 note |
Mirror Assy, Outer Rear View, RH
2017-12 → —
|
ARS212 B,S | — | |
| 87910-0N060-D1 note |
Mirror Assy, Outer Rear View, RH
2017-12 → —
|
ARS212 B,S | — | |
| 87910-0N060-E1 note |
Mirror Assy, Outer Rear View, RH
2017-12 → —
|
ARS212 B,S | — | |
| 87910-0N060-J0 note |
Mirror Assy, Outer Rear View, RH
2017-12 → —
|
ARS212 B,S | — | |
| 87910-0N080-A0 note |
Mirror Assy, Outer Rear View, RH
2017-12 → —
|
ARS212 U | — | |
| 87910-0N080-B0 note |
Mirror Assy, Outer Rear View, RH
2017-12 → —
|
ARS212 U | — | |
| 87910-0N080-C0 note |
Mirror Assy, Outer Rear View, RH
2017-12 → —
|
ARS212 U | — | |
| 87910-0N080-D1 note |
Mirror Assy, Outer Rear View, RH
2017-12 → —
|
ARS212 U | — | |
| 87910-0N080-E1 note |
Mirror Assy, Outer Rear View, RH
2017-12 → —
|
ARS212 U | — | |
| 87910-0N080-J0 note |
Mirror Assy, Outer Rear View, RH
2017-12 → —
|
ARS212 U | — | |
| 87910-0N090-A0 note |
Mirror Assy, Outer Rear View, RH
2017-12 → —
|
ARS212 Q | — | |
| 87910-0N090-B0 note |
Mirror Assy, Outer Rear View, RH
2017-12 → —
|
ARS212 Q | — | |
| 87910-0N090-C0 note |
Mirror Assy, Outer Rear View, RH
2017-12 → —
|
ARS212 Q | — | |
| 87910-0N090-D0 note |
Mirror Assy, Outer Rear View, RH
2017-12 → —
|
ARS212 Q | — | |
| 87910-0N090-E0 note |
Mirror Assy, Outer Rear View, RH
2017-12 → —
|
ARS212 Q | — | |
| 87910-0N090-J0 note |
Mirror Assy, Outer Rear View, RH
2017-12 → —
|
ARS212 Q | — | |
| 87910-0N100-A0 note |
Mirror Assy, Outer Rear View, RH
2017-12 → —
|
ARS212 P | — | |
| 87910-0N100-B0 note |
Mirror Assy, Outer Rear View, RH
2017-12 → —
|
ARS212 P | — | |
| 87910-0N100-C0 note |
Mirror Assy, Outer Rear View, RH
2017-12 → —
|
ARS212 P | — | |
| 87910-0N100-D0 note |
Mirror Assy, Outer Rear View, RH
2017-12 → —
|
ARS212 P | — | |
| 87910-0N100-E0 note |
Mirror Assy, Outer Rear View, RH
2017-12 → —
|
ARS212 P | — | |
| 87910-0N100-J0 note |
Mirror Assy, Outer Rear View, RH
2017-12 → —
|
ARS212 P | — | |
| 8791A — Cover, Outer Mirror, RH NO.2 | ||||
| 8791A-0N900 |
Cover, Outer Mirror, RH NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 8791A-0N900 |
Cover, Outer Mirror, RH NO.2
2017-12 → —
|
ARS212 | — | |
| 87931 — Outer Mirror, RH | ||||
| 87931-0N060 |
Outer Mirror, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 87931-0N080 note |
Outer Mirror, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 87931-0N060 |
Outer Mirror, RH
2017-12 → —
|
ARS212 B,P,Q,S | — | |
| 87931-0N080 |
Outer Mirror, RH
2017-12 → —
|
ARS212 U | — | |
| 87940 — Mirror Assy, Outer Rear View, LH | ||||
| 87940-0N050-A0 note |
Mirror Assy, Outer Rear View, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,S | — | |
| 87940-0N050-B0 note |
Mirror Assy, Outer Rear View, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,S | — | |
| 87940-0N050-B1 note |
Mirror Assy, Outer Rear View, LH
2015-01 → 2016-10
ended
|
ARS212,GRS218 B,S | — | |
| 87940-0N050-C0 note |
Mirror Assy, Outer Rear View, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,S | — | |
| 87940-0N050-D0 note |
Mirror Assy, Outer Rear View, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,S | — | |
| 87940-0N050-E1 note |
Mirror Assy, Outer Rear View, LH
2015-08 → 2017-12
ended
|
ARS212,GRS218 B,S | — | |
| 87940-0N050-J1 note |
Mirror Assy, Outer Rear View, LH
2016-10 → 2017-09
ended
|
ARS212,GRS218 B,S | — | |
| 87940-0N060-A0 note |
Mirror Assy, Outer Rear View, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 87940-0N060-B0 note |
Mirror Assy, Outer Rear View, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 87940-0N060-B1 note |
Mirror Assy, Outer Rear View, LH
2015-01 → 2016-10
ended
|
ARS212,GRS218 Q,U | — | |
| 87940-0N060-C0 note |
Mirror Assy, Outer Rear View, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 87940-0N060-D0 note |
Mirror Assy, Outer Rear View, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 87940-0N060-E1 note |
Mirror Assy, Outer Rear View, LH
2015-08 → 2017-12
ended
|
ARS212,GRS218 Q,U | — | |
| 87940-0N060-J0 note |
Mirror Assy, Outer Rear View, LH
2016-10 → 2017-09
ended
|
ARS212,GRS218 Q,U | — | |
| 87940-0N070-A0 note |
Mirror Assy, Outer Rear View, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 87940-0N070-B0 note |
Mirror Assy, Outer Rear View, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 87940-0N070-B1 note |
Mirror Assy, Outer Rear View, LH
2015-01 → 2016-10
ended
|
ARS212,GRS218 U | — | |
| 87940-0N070-C0 note |
Mirror Assy, Outer Rear View, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 87940-0N070-D0 note |
Mirror Assy, Outer Rear View, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 87940-0N070-E1 note |
Mirror Assy, Outer Rear View, LH
2015-08 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 87940-0N070-J1 note |
Mirror Assy, Outer Rear View, LH
2016-10 → 2017-09
ended
|
ARS212,GRS218 U | — | |
| 87940-0N050-A0 note |
Mirror Assy, Outer Rear View, LH
2017-12 → —
|
ARS212 B,S | — | |
| 87940-0N050-B0 note |
Mirror Assy, Outer Rear View, LH
2017-12 → —
|
ARS212 B,S | — | |
| 87940-0N050-C0 note |
Mirror Assy, Outer Rear View, LH
2017-12 → —
|
ARS212 B,S | — | |
| 87940-0N050-D1 note |
Mirror Assy, Outer Rear View, LH
2017-12 → —
|
ARS212 B,S | — | |
| 87940-0N050-E1 note |
Mirror Assy, Outer Rear View, LH
2017-12 → —
|
ARS212 B,S | — | |
| 87940-0N050-J0 note |
Mirror Assy, Outer Rear View, LH
2017-12 → —
|
ARS212 B,S | — | |
| 87940-0N070-A0 note |
Mirror Assy, Outer Rear View, LH
2017-12 → —
|
ARS212 U | — | |
| 87940-0N070-B0 note |
Mirror Assy, Outer Rear View, LH
2017-12 → —
|
ARS212 U | — | |
| 87940-0N070-C0 note |
Mirror Assy, Outer Rear View, LH
2017-12 → —
|
ARS212 U | — | |
| 87940-0N070-D1 note |
Mirror Assy, Outer Rear View, LH
2017-12 → —
|
ARS212 U | — | |
| 87940-0N070-E1 note |
Mirror Assy, Outer Rear View, LH
2017-12 → —
|
ARS212 U | — | |
| 87940-0N070-J0 note |
Mirror Assy, Outer Rear View, LH
2017-12 → —
|
ARS212 U | — | |
| 87940-0N080-A0 note |
Mirror Assy, Outer Rear View, LH
2017-12 → —
|
ARS212 Q | — | |
| 87940-0N080-B0 note |
Mirror Assy, Outer Rear View, LH
2017-12 → —
|
ARS212 Q | — | |
| 87940-0N080-C0 note |
Mirror Assy, Outer Rear View, LH
2017-12 → —
|
ARS212 Q | — | |
| 87940-0N080-D0 note |
Mirror Assy, Outer Rear View, LH
2017-12 → —
|
ARS212 Q | — | |
| 87940-0N080-E0 note |
Mirror Assy, Outer Rear View, LH
2017-12 → —
|
ARS212 Q | — | |
| 87940-0N080-J0 note |
Mirror Assy, Outer Rear View, LH
2017-12 → —
|
ARS212 Q | — | |
| 87940-0N090-A0 note |
Mirror Assy, Outer Rear View, LH
2017-12 → —
|
ARS212 P | — | |
| 87940-0N090-B0 note |
Mirror Assy, Outer Rear View, LH
2017-12 → —
|
ARS212 P | — | |
| 87940-0N090-C0 note |
Mirror Assy, Outer Rear View, LH
2017-12 → —
|
ARS212 P | — | |
| 87940-0N090-D0 note |
Mirror Assy, Outer Rear View, LH
2017-12 → —
|
ARS212 P | — | |
| 87940-0N090-E0 note |
Mirror Assy, Outer Rear View, LH
2017-12 → —
|
ARS212 P | — | |
| 87940-0N090-J0 note |
Mirror Assy, Outer Rear View, LH
2017-12 → —
|
ARS212 P | — | |
| 8794A — Cover, Outer Mirror, LH NO.2 | ||||
| 8794A-0N900 |
Cover, Outer Mirror, LH NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 8794A-0N900 |
Cover, Outer Mirror, LH NO.2
2017-12 → —
|
ARS212 | — | |
| 87961 — Mirror Outer, LH | ||||
| 87961-0N050 |
Mirror Outer, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 87961-0N070 note |
Mirror Outer, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 87961-0N050 |
Mirror Outer, LH
2017-12 → —
|
ARS212 B,P,Q,S | — | |
| 87961-0N070 |
Mirror Outer, LH
2017-12 → —
|
ARS212 U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
