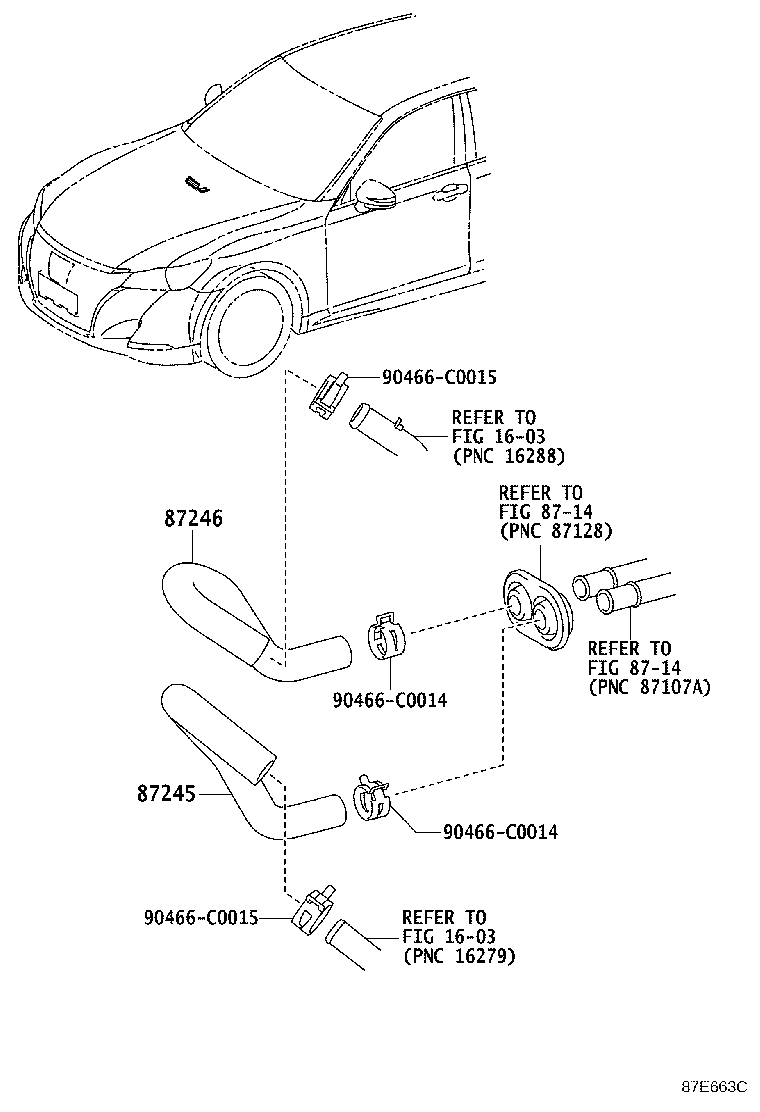

Exploded illustration 87E663C 87246 — HOSE, HEATER WATER, OUTLET (4 parts) 87245 — HOSE, HEATER WATER, INLET (4 parts) 90466C0014 — not listed in this catalogue 1603 — not listed in this catalogue 8714 — not listed in this catalogue 8714 — not listed in this catalogue 1603 — not listed in this catalogue 90466C0014 — not listed in this catalogue 90466C0015 — not listed in this catalogue 90466C0015 — not listed in this catalogue
87E663C · 2 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
8 parts on this figure
Part number Description Fitment Price
87245 — Hose, Heater Water, Inlet
87245-0N010 Hose, Heater Water, Inlet
2015-01 → 2017-12 ended
GRS218 —
87245-0N050 Hose, Heater Water, Inlet
2015-08 → 2017-12 ended
ARS212 —
87245-0N050 Hose, Heater Water, Inlet
2017-12 → 2019-10 ended
ARS212 B —
87245-0N050 Hose, Heater Water, Inlet
2017-12 → —
ARS212 P,Q,S,U —
87246 — Hose, Heater Water, Outlet
87245-0N020 Hose, Heater Water, Outlet
2015-01 → 2017-12 ended
GRS218 —
87245-0N060 Hose, Heater Water, Outlet
2015-08 → 2017-12 ended
ARS212 —
87245-0N060 Hose, Heater Water, Outlet
2017-12 → 2019-10 ended
ARS212 B —
87245-0N060 Hose, Heater Water, Outlet
2017-12 → —
ARS212 P,Q,S,U —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
