Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

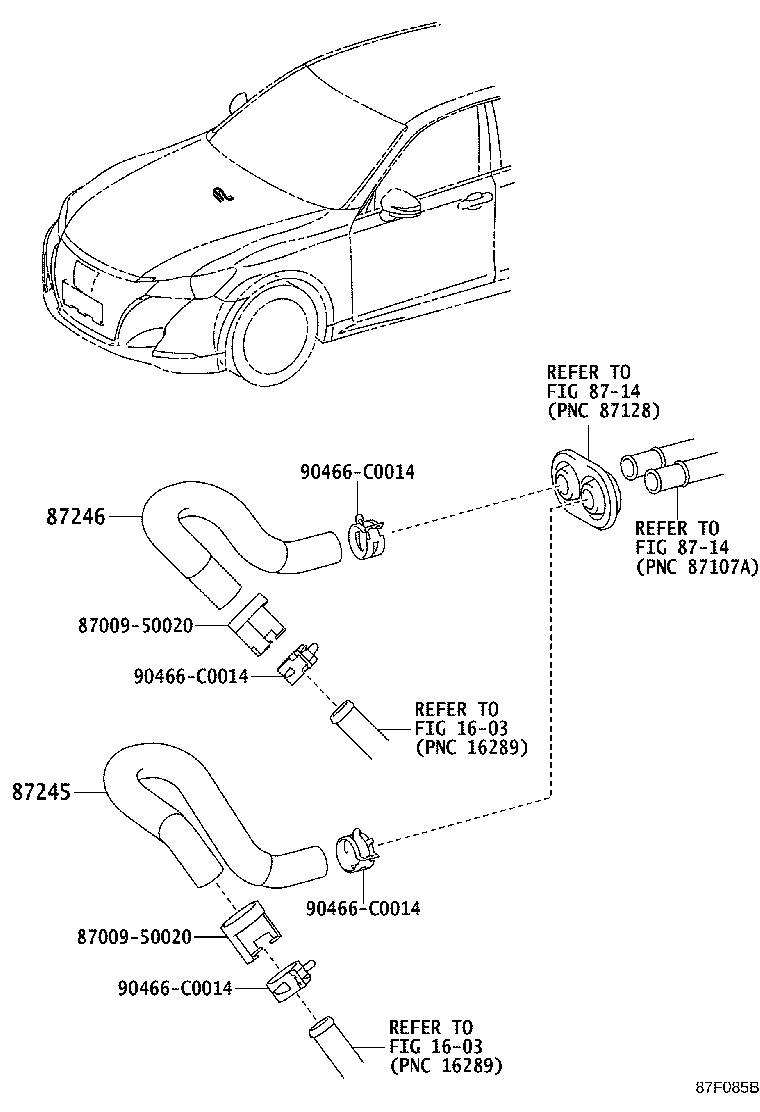

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87245 — Hose, Heater Water, Inlet | ||||
| 87245-0N010 |
Hose, Heater Water, Inlet
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 87245-0N050 |
Hose, Heater Water, Inlet
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 87245-0N050 |
Hose, Heater Water, Inlet
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 87245-0N050 |
Hose, Heater Water, Inlet
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 87246 — Hose, Heater Water, Outlet | ||||
| 87245-0N020 |
Hose, Heater Water, Outlet
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 87245-0N060 |
Hose, Heater Water, Outlet
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 87245-0N060 |
Hose, Heater Water, Outlet
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 87245-0N060 |
Hose, Heater Water, Outlet
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
