Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05
Hood Lock & Hinge
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53336 | Bracket, Hood Stay, RH |
| 53337C | Bracket, Hood Stay, LH |
| 53410 | Hinge Assy, Hood, RH |
| 53420 | Hinge Assy, Hood, LH |
| 53440A | Support Assy, Hood, RH |
| 53450A | Support Assy, Hood, LH |

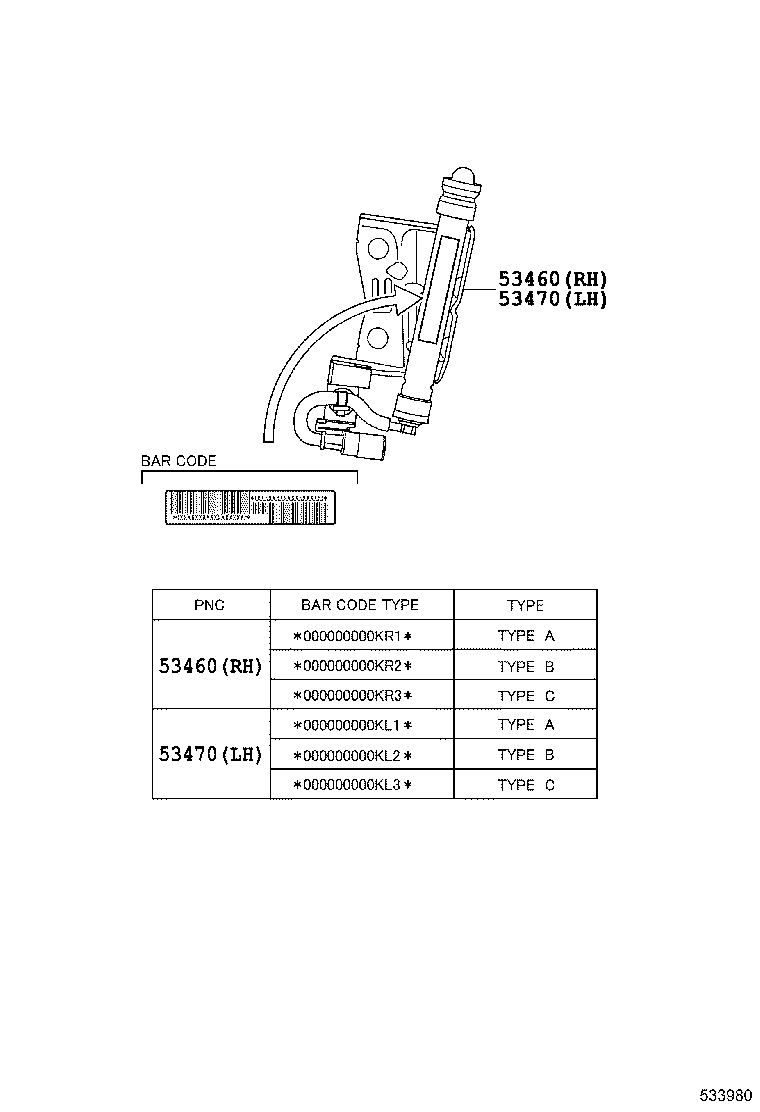

| 53460 | Lifter Assy, Pop UP Hood, RH |
| 53470 | Lifter Assy, Pop UP Hood, LH |
| 53510 | Lock Assy, Hood |
| 53510A | Spring, Tension(FOR HOOD LOCK) |
| 53510E | Spring, Tension(FOR HOOD LOCK) |
| 53525 | Protector, Hood Lock Release Lever |
| 53550 | Hook Assy, Hood Auxiliary Catch |
| 53557 | Catch, Hood Auxiliary Hook |
| 53601 | Lever Sub-assy, Hood Lock Control |
| 53614 | Clamp, Hood Lock Control Cable |
| 53630 | Cable Assy, Hood Lock Control |
| 53632 | Holder, Hood Lock Control Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
