Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

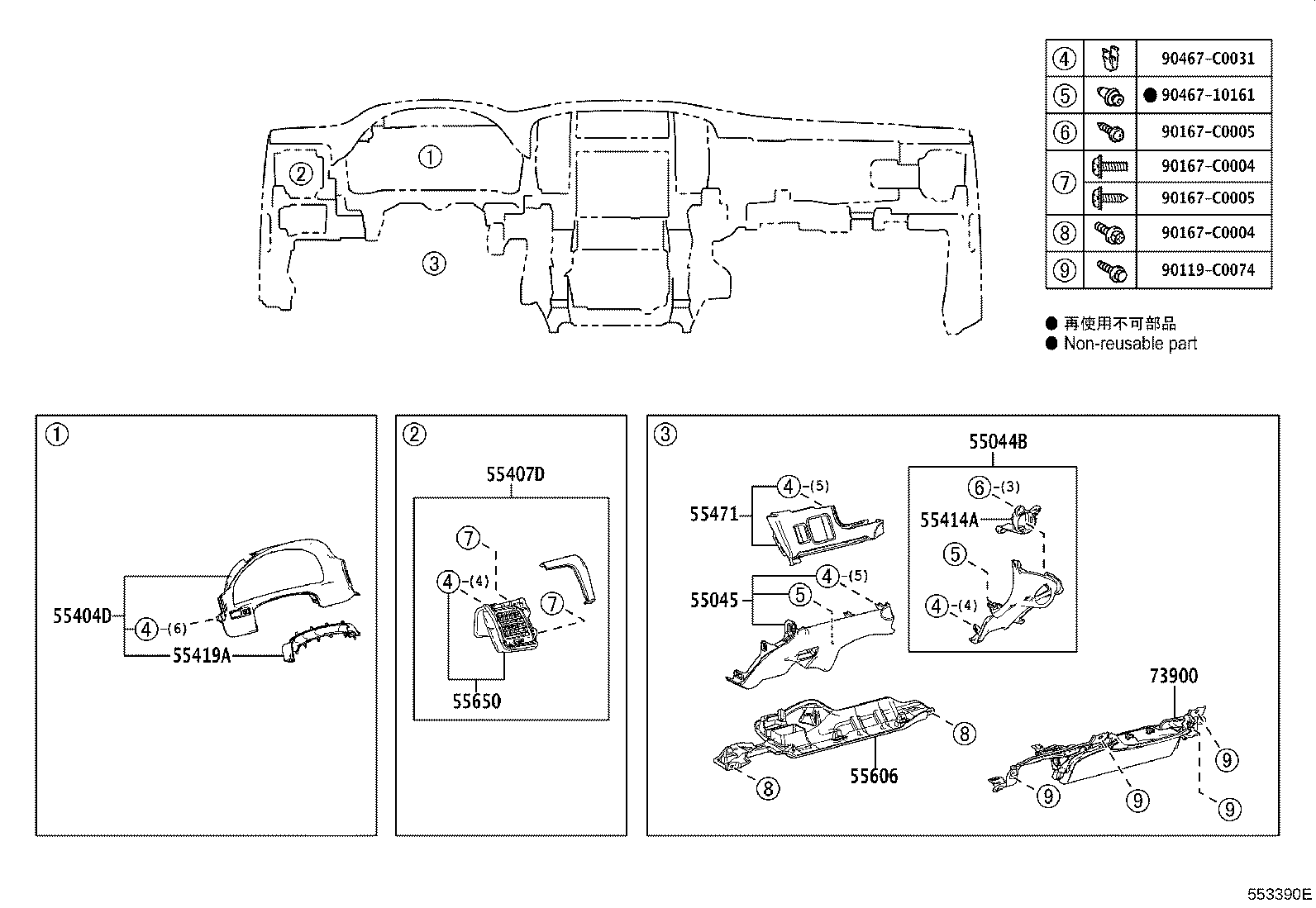

Instrument Panel & Glove Compartment
46 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55044B | Panel Sub-assy, Instrument Panel Finish, Upper |
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55315A | Spacer, Instrument Panel, NO.1 |
| 55317A | Panel, Instrument Side, RH |
| 55318C | Panel, Instrument Side, LH |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55347A | Bracket, Instrument Panel Brace Mounting, NO.1 |
| 55374A | Bracket, Instrument Panel Lower Mounting, RH |
| 55375A | Bracket, Instrument Panel Lower Mounting, LH |
| 55394B | Bolt, Instrument Panel |
| 55394C | Bolt, Instrument Panel |
| 55400 | Pad Assy, Instrument Panel Safety |
| 55402D | Pad Sub-assy, Instrument Panel Safety, NO.1 |
| 55403E | Pad Sub-assy, Instrument Panel Safety, NO.2 |
| 55404D | Panel Sub-assy, Instrument Cluster Finish |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55407D | Pad Sub-assy, Instrument Panel, End |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55413D | Panel, Instrument Cluster Finish, Center Lower |
| 55414A | Panel, Instrument Cluster Finish, End |
| 55419A | Cushion, Instrument Cluster Finish Panel |
| 55431A | Panel, Instrument Panel Finish |
| 55454B | Pad, Instrument Panel Safety, NO.2 |
| 55458A | Cap, Instrument Panel Safety Pad |
| 55471 | Moulding, Instrument Cluster, NO.1 |
| 55472A | Moulding, Instrument Cluster, NO.2 |
| 55501A | Door Sub-assy, Glove Compartment |
| 55509C | Panel Sub-assy, Glove Compartment |
| 55510F | Cover Assy, Speaker Opening, NO.1 |
| 55550 | Door Assy, Glove Compartment |
| 55605 | Motor Sub-assy, Swing Register |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55651 | Register, Instrument Panel, NO.1 |
| 55652 | Register, Instrument Panel, NO.2 |
| 55653 | Register, Instrument Panel, NO.3 |
| 55657 | Rod, Register Blade Connecting |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 58816C | Insert, Console Box, Front NO.1 |
| 73900 | Airbag Assy, Instrument Panel, Lower NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 84013E | Panel Sub-assy, Integration |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
