Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05
Mat & Carpet
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58510D | Carpet Assy, Floor, Front |

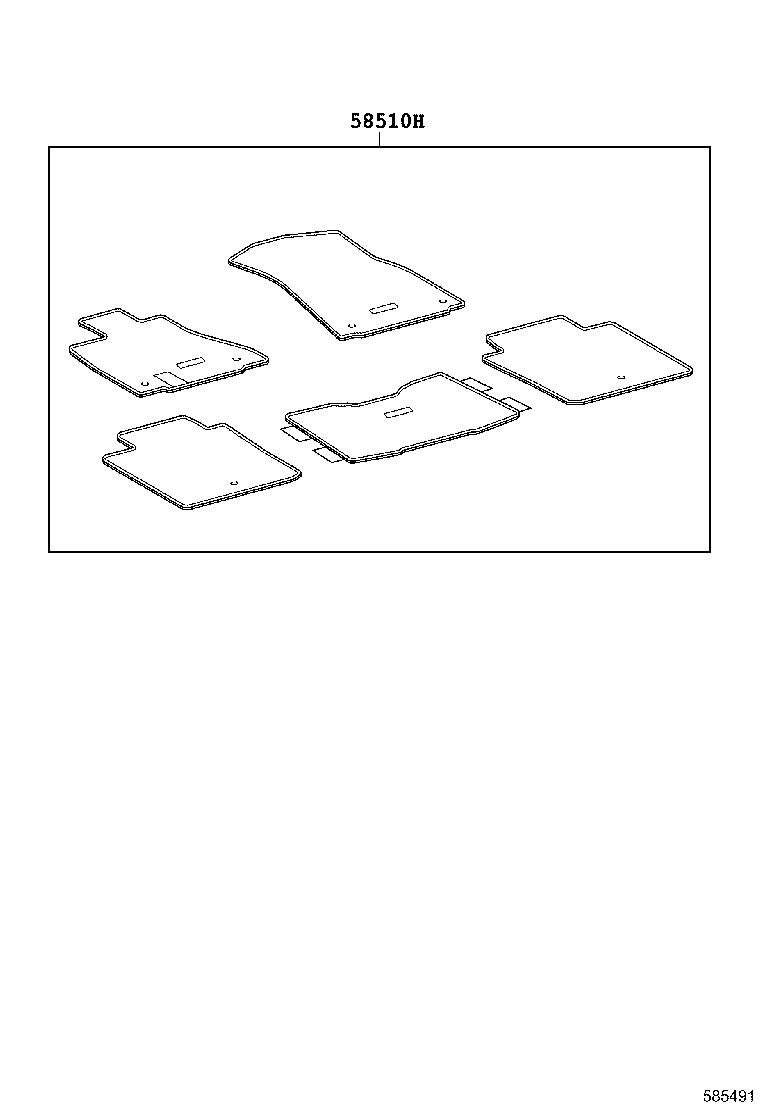

| 58510H | Mat Assy, Floor |
| 58520C | Clip(FOR FRONT FLOOR CARPET) |
| 58521F | Hook, Floor Carpet |
| 58530B | Clip(FOR FRONT FLOOR CARPET) |
| 58569D | Cover, Front Floor Caution Plate |
| 58571F | Pad, Front Floor, Front |
| 58573C | Pad, Front Floor Center |
| 58621G | Pad, Front Floor Silencer, RH |
| 58622C | Pad, Front Floor Silencer, LH |
| 58624C | Pad, Center Floor Silencer, RH |
| 58625C | Pad, Center Floor Silencer, LH |
| 58673C | Pad, Rear Floor Silencer, NO.1 |
| 58674B | Pad, Rear Floor Silencer, NO.2 |
| 58694B | Plate, Mat Set, Upper |
| 58698C | Plate, Mat Set, Lower |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
